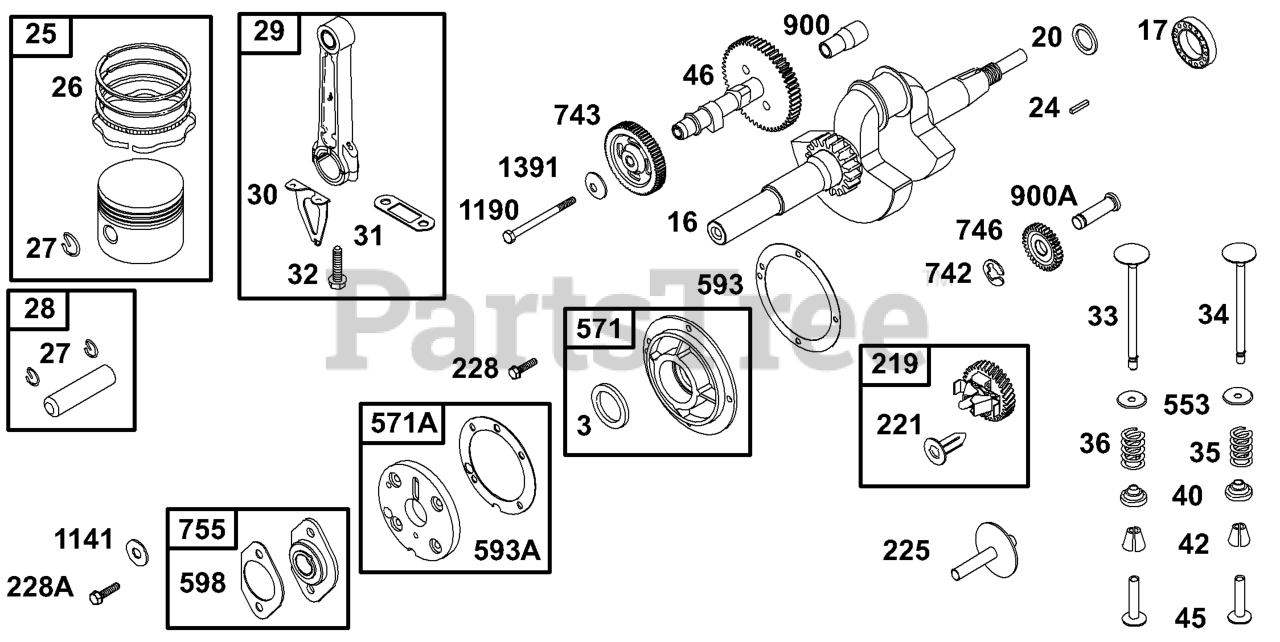

32K437-0112-01 - Briggs & Stratton Horizontal Engine Piston, Rings, Crankshaft, Camshaft, Bearing Supports Parts Diagram

Horizontal Engine

Piston, Rings, Crankshaft, Camshaft, Bearing Supports Parts Diagram

  • Title

3

Briggs & Stratton 291675S

Seal-Oil

Note: (Magneto Side)

$6.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 690536

Crankshaft

$346.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 691938

Bearing-Ball

$

$

Not available

20

Briggs & Stratton 691948

Seal-Oil

Note: (PTO Side)

$12.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 390366

Piston Assembly
(Superseded to 792367)

Note: (.020" Oversize)

$130.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 390364

Piston Assembly
(Superseded to 792365)

Note: (Standard)

$146.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 390484

Ring Set
(Superseded to 792366)

Note: (Standard)

$120.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 390505

Ring Set
(Superseded to 792368)

Note: (.020" Oversize)

$130.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691792

Lock-Piston Pin

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston

Note: (Standard)

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston

Note: (.005" Oversize)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299632

Rod-Connecting

Note: (Standard)

$128.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390306

Rod-Connecting

Note: (.020" Undersize)

$

$

Not available

30

Briggs & Stratton 691726

Dipper-Connecting Rod

$13.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 690396

Lock-Rod Screw

$5.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 692345

Screw

Note: (Connecting Rod)

$8.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 394436

Valve-Exhaust

$65.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 394435

Valve-Intake

$64.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691597

Spring-Valve

Note: (Intake) (Intake)

$10.99

$

In Stock, only 4 left!

0

36

Briggs & Stratton 691597

Spring-Valve

Note: (Exhaust) (Exhaust)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 691939

Retainer-Valve

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 691594

Tappet-Valve

$32.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 692855

Camshaft

$288.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 393720

Gear-Governor

$61.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

225

Briggs & Stratton 691357

Shaft-Governor Gear

$11.99

$

Usually ships in 2-12 days

0

228

Briggs & Stratton 691058

Screw

Note: (Bearing Support)

$5.99

$

In Stock, Qty 11

0

228A

Briggs & Stratton 690810

SCREW

Note: (Bearing Support)

$3.49

$

In Stock, only 2 left!

0

553

Briggs & Stratton 690269

Retainer-Valve Spring

$4.99

$

Usually ships in 2-12 days

0

571

Briggs & Stratton 291665

Support-Bearing

$68.99

$

Usually ships in 2-12 days

0

571A

Briggs & Stratton 299705

Support-Bearing

Note: (Magneto Side)

$45.99

$

Usually ships in 2-12 days

0

593

Briggs & Stratton 691311

Gasket-Bearing Support

$12.99

$

Usually ships in 2-12 days

0

593A

Briggs & Stratton 270515

Gasket-Bearing Support

Note: (.005" Thick)

$7.99

$

Usually ships in 2-12 days

0

593A

Briggs & Stratton 270514

Gasket-Bearing Support

Note: (.010" Thick)

$8.99

$

Usually ships in 2-12 days

0

593A

Briggs & Stratton 270513

Gasket-Bearing Support

Note: (.015" Thick)

$7.99

$

Usually ships in 2-12 days

0

598

Briggs & Stratton 270516

Shim-End Play

Note: (Crankshaft or Camshaft Bearing) (.009" Thick)

$4.49

$

In Stock, only 4 left!

0

598

Briggs & Stratton 270517

Shim-End Play

Note: (Crankshaft or Camshaft Bearing) (.007" Thick)

$4.49

$

In Stock, only 1 left!

0

598

Briggs & Stratton 270518

Shim-End Play

Note: (Crankshaft or Camshaft Bearing) (.005" Thick)

$10.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 691080

Retainer-E Ring

$4.49

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 691153

Gear-Drive

$125.99

$

Usually ships in 2-12 days

0

746

Briggs & Stratton 691803

Gear-Idler

$41.99

$

Usually ships in 2-12 days

0

755

Briggs & Stratton 299706

Bearing-Camshaft

$54.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 691768

Shaft-Gear

$13.99

$

Usually ships in 2-12 days

0

900A

Briggs & Stratton 691767

Shaft-Gear

$13.99

$

Usually ships in 2-12 days

0

1141

Briggs & Stratton 690402

Washer

Note: (Bearing Support)

$4.49

$

Usually ships in 2-12 days

0

1190

Briggs & Stratton 691081

Screw

Note: (Drive Gear)

$6.49

$

Usually ships in 2-12 days

0

1391

Briggs & Stratton 690301

Washer

Note: (Drive Gear)

$5.99

$

Usually ships in 2-12 days

0
