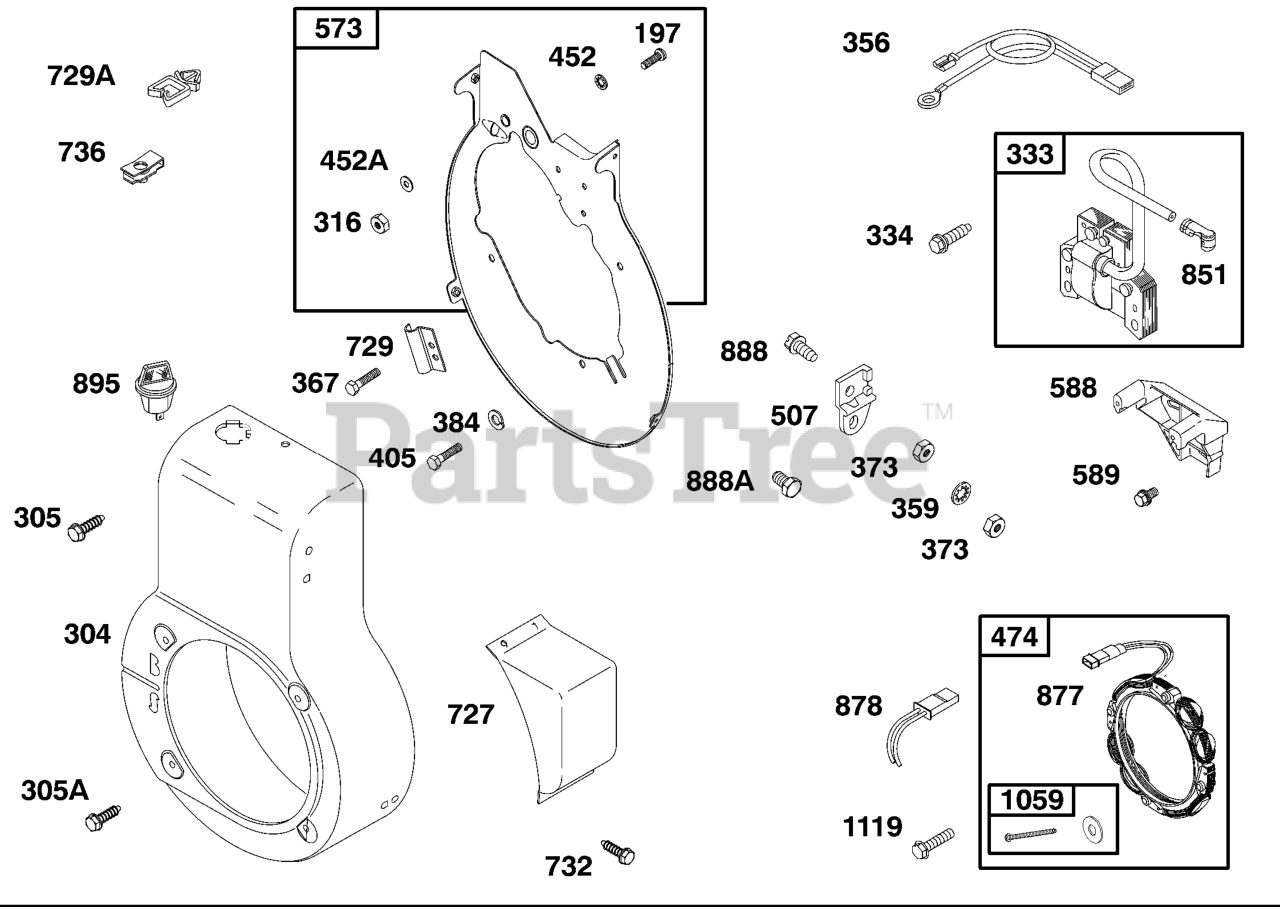

32K437-0112-01 - Briggs & Stratton Horizontal Engine Blower Housing, Alternator, Backplate, Wires Parts Diagram

Horizontal Engine

Blower Housing, Alternator, Backplate, Wires Parts Diagram

  • Title

197

Briggs & Stratton 90072

Screw

Note: (Back Plate) (5/8" Long)

$4.49

$

In Stock, Qty 18

0

304

Briggs & Stratton 391229

Housing-Blower

$199.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 690297

Screw

Note: (Blower Housing)

$3.49

$

In Stock, Qty 12

0

305A

Briggs & Stratton 690290

Screw

Note: (Blower Housing)

$3.49

$

Usually ships in 2-12 days

0

316

Briggs & Stratton 691612

NUT

Note: (Back Plate)

$3.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 398811

Armature-Magneto

$63.99

$

In Stock, Qty 19

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 690650

Wire-Stop

$

$

Not available

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

367

Briggs & Stratton 690305

Screw

Note: (Wire Clip)

$4.49

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

384

Briggs & Stratton 690371

Washer
(Superseded to 22097GS)

Note: (Back Plate)

$3.49

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 690290

Screw

Note: (Back Plate)

$3.49

$

Usually ships in 2-12 days

0

452

Briggs & Stratton 92864

Washer

Note: (Back Plate)

$4.49

$

Usually ships in 2-12 days

0

452A

Briggs & Stratton 26404

Washer

Note: (Back Plate)

$5.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: (Dual Circuit)

$101.99

$

In Stock, Qty 8

0

507

Briggs & Stratton 690584

Insulator

$4.99

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 391220

Plate-Back

$73.99

$

Usually ships in 2-12 days

0

588

Briggs & Stratton 690375

Bracket-Armature

$31.99

$

Usually ships in 2-12 days

0

589

Briggs & Stratton 690300

Screw
(Superseded to 7091286YP)

Note: (Armature Bracket)

$4.99

$

In Stock, Qty 12

0

727

Briggs & Stratton 692338

Cover-Starter Drive

$60.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690432

Clip-Wire

Note: (Alternator)

$5.49

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 690588

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 93410

Screw

Note: (Starter Drive Cover)

$7.99

$

In Stock, only 1 left!

0

736

Briggs & Stratton 690302

Nut-Clip

$5.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

Note: (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 691237

Harness-Alternator
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

888

Briggs & Stratton 690292

Screw

Note: (Insulator) (1/2" Long)

$3.99

$

In Stock, only 3 left!

0

888A

Briggs & Stratton 690295

Screw

Note: (Insulator) (3/8" Long)

$6.99

$

Usually ships in 2-12 days

0

895

Briggs & Stratton 692309

Switch-Rotary

$20.99

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

Note: (Alternator)

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
