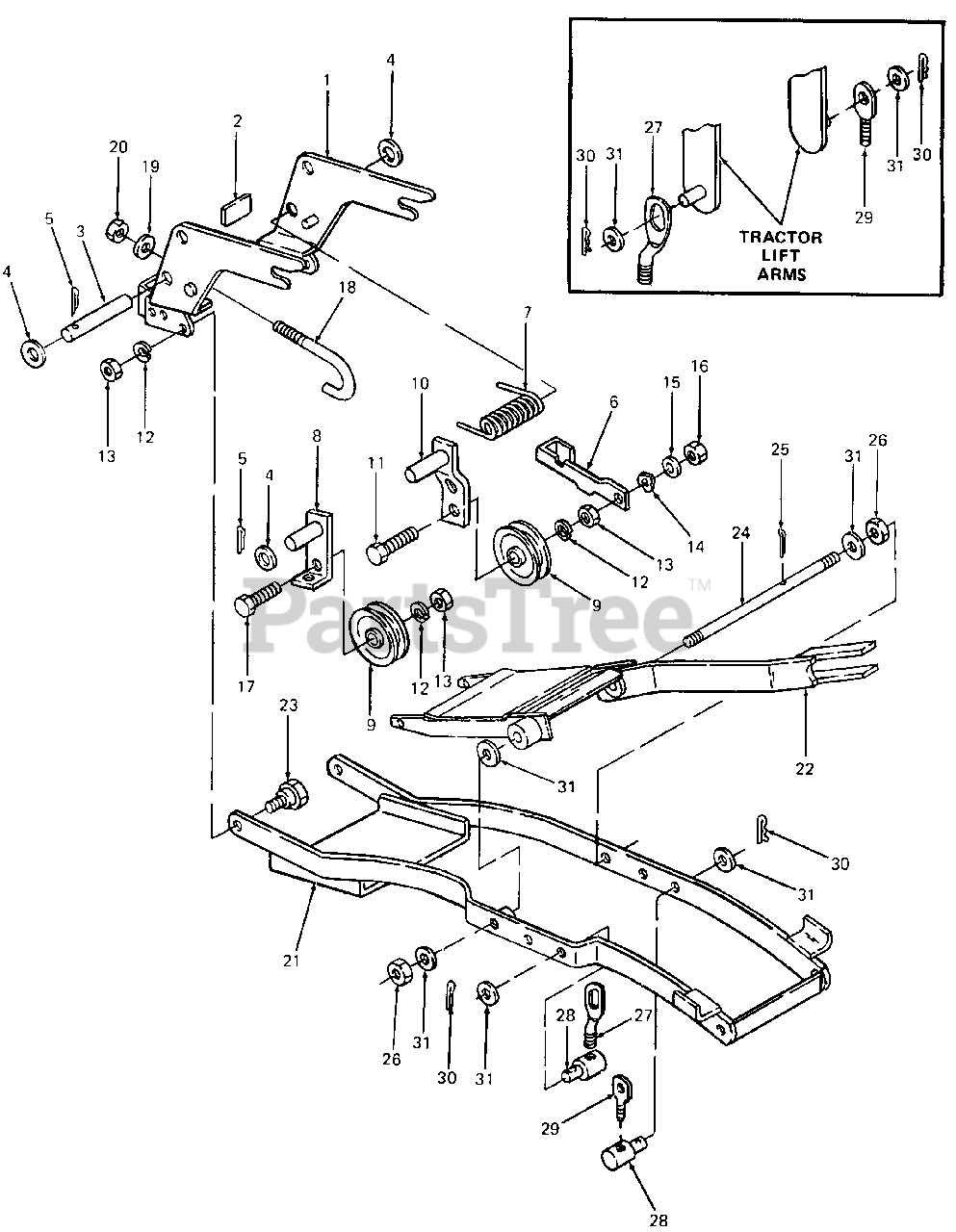

328 (190-328-100) - Cub Cadet 38" Mower Deck Hanging Frame & Mule Drive Parts Diagram

38" Mower Deck

Hanging Frame & Mule Drive Parts Diagram

  • Title

1

Cub Cadet 703-0096

Hanger Assy, Front

$

$

Currently unavailable

2

Cub Cadet 779-3002

Graphic, Idler Adjustment

$

$

Not available

3

Cub Cadet 738-3003

Shaft, Idler Pivot

$

$

Not available

4

Cub Cadet 736-0302

Washer, Flat, .640 X .943 X .050

$

$

Not available

5

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 703-0138

Ratchet, Idler

Variations

Cub Cadet 703-0138-0498

Idler Ratchet - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-0138-0716

Idler Ratchet - CUB YELLOW-99 (0716)

$

$

Not available

$48.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 732-3008C

Spring, Idler Torsion

$

$

Not available

8

Cub Cadet 703-0139

Arm Assy, Idler LH

$

$

Not available

9

Cub Cadet 756-3003

Pulley, Idler

$59.99

$

In Stock, only 1 left!

0

10

Cub Cadet 703-0141A

Arm Assy, Idler RH

$

$

Not available

11

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-3012

Washer, Wave, .406 X .64 X .015
(Superseded to 736-0413)

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 736-0185

Washer, Flat, .405 X .75 X .06

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

17

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.5 Lg GR5

$4.49

$

In Stock, Qty 6

0

18

Cub Cadet 747-3012

Bolt, Idler Adjuster
(Superseded to 947-3012)

$20.99

$

In Stock, only 3 left!

0

19

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 703-1760

Frame Assy, Lift - Outer
(Superseded to 703-1760-0498)

Variations

Cub Cadet 703-1760-0498

FRAME ASSY-OUTER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-1760-0499

USE 703-1760-0498 FRAME ASSY- - CUB BEIGE (0499)

$

$

Not available

$

$

22

Cub Cadet 703-1743

Frame Assy, Lift - Center
(Superseded to 703-1743-0498)

Variations

Cub Cadet 703-1743-0498

USE 703-1743-0716 FRAME ASSY- - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-1743-0716

FRAME ASSY-CENTER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

23

Cub Cadet 738-3004

Bolt, Shoulder

$15.99

$

In Stock, only 4 left!

0

24

Cub Cadet 711-3279

Shaft, Pivot

$94.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0200A

Nut, Hex Jam w/Plastic Patch

$4.49

$

In Stock, only 1 left!

0

27

Cub Cadet 719-3072

Link, Offset Adjustable

$

$

Not available

28

Cub Cadet 711-3021

Ferrule, Adjustment
(Superseded to 911-3021)

$34.99

$

In Stock, only 1 left!

0

29

Cub Cadet 719-3008

Link, Adjustable

$

$

Not available

30

Cub Cadet 714-3003

Pin, Internal Cotter
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

31

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.99

$

In Stock, Qty 20+

0
