328 (190-328-100) - Cub Cadet 38" Mower Deck Deck & Attachments Parts Diagram

38" Mower Deck

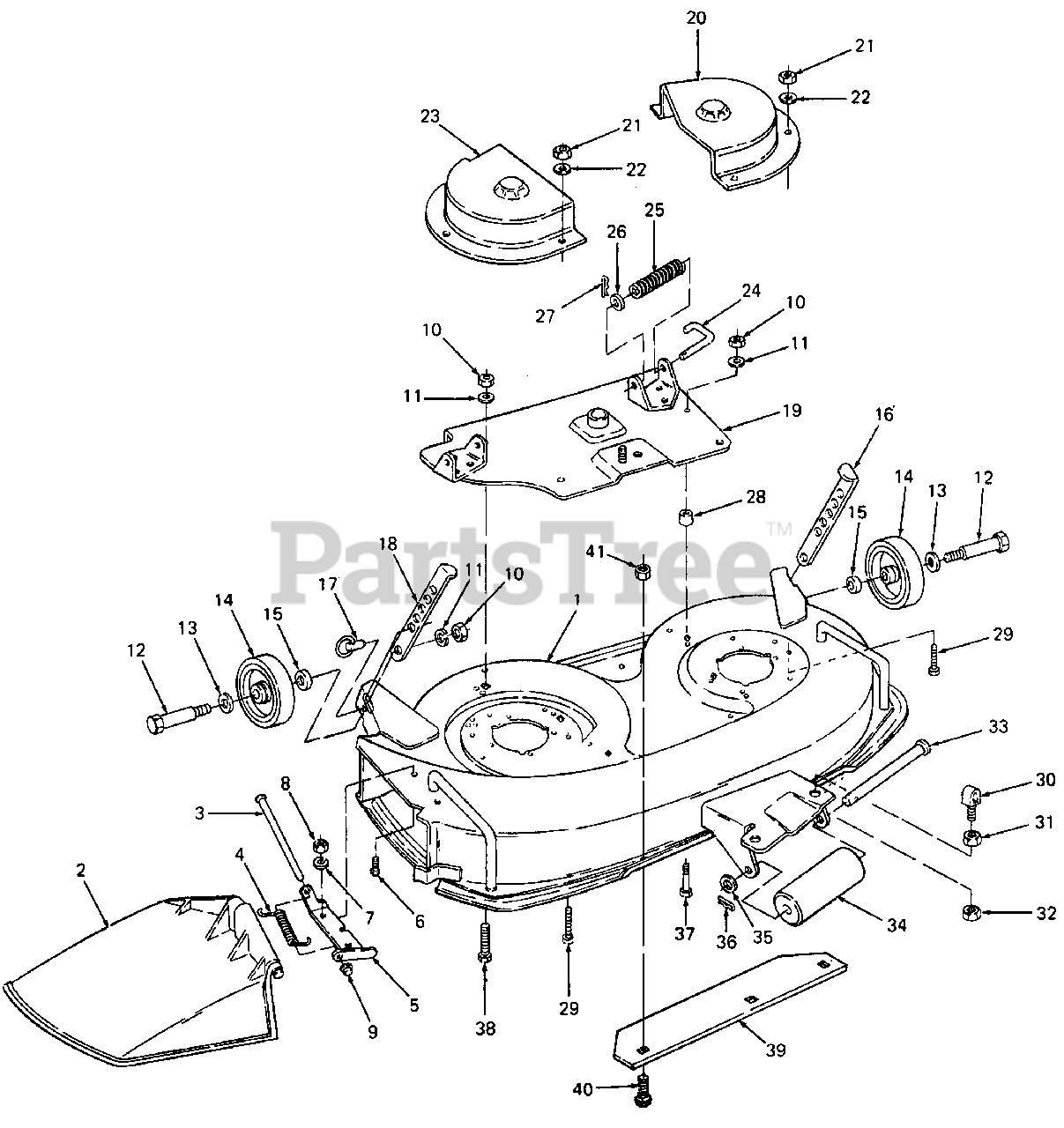

Deck & Attachments Parts Diagram

  • Title

1

Cub Cadet 759-3574

Deck Assembly w/Graphics

Variations

Cub Cadet 759-3574-0716

38" DECK W/GRAPHIC - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 777-2549

Graphic, 38" Do Not Step
(Superseded to 777S30018)

$8.49

$

In Stock, Qty 11

0

Cub Cadet 777-6275

Graphic, Thrown Object

$

$

Currently unavailable

Cub Cadet 777-7313

Graphic, Danger Chute

$

$

Not available

2

Cub Cadet 759-3492

Chute Kit w/Graphic
(Superseded to 759-3492P)

Note: [Includes Ref No. 2, 3, 4, 5, 6 (Qty 2), 7 (Qty 2), 8 (Qty 2) & 9]

$

$

Not available

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0792

Pin, Hinge, .25 Dia X 6.75 Lg
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 732-0602

Spring, Torsion
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

5

Cub Cadet 703-1693

Bracket, Hinge Mtg
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0255

Screw, Truss Machine, 1/4-20 X .75 Lg, Phillips
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0329

Washer, Lock, 1/4 Dia
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

8

Cub Cadet 712-0287

Nut, Hex Jam, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet 726-0106

Cap, Speed Nut

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0169

Washer, Lock, 3/8 Dia

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 738-3058

Bolt, Shld, .50 Dia X 1.62 Lg X 3/8-16
(Superseded to 938-3058)

$23.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-3087

Washer, Flat, .515 ID X 1.12 OD X .100 Thk

$

$

Not available

14

Cub Cadet 734-3062

Wheel, Gauge, 5" Dia

$21.99

$

In Stock, Qty 16

0

15

Cub Cadet 711-3226

Spacer, .385 X .075 X .75 Lg

$

$

Not available

16

Cub Cadet 703-1411

Bar, Height Adjustment LH

$

$

Not available

17

Cub Cadet 711-3222

Pin, Clevis w/Detent Ball
(Superseded to 911-3222)

$18.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 703-1412

Bar, Height Adjustment RH

$

$

Not available

19

Cub Cadet 703-1979

Adapter Plate Assy

$

$

Not available

20

Cub Cadet 703-1413

Cover, Belt LH

$

$

Not available

21

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .06 Thk

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 703-1414

Cover, Belt RH

$

$

Not available

24

Cub Cadet 747-3013

Pin, Mower Support

$22.99

$

In Stock, only 2 left!

0

25

Cub Cadet 732-3007

Spring, Compression
(Superseded to 932-3007)

$

$

Not available

26

Cub Cadet 736-0160

Washer, Flat, .531 X .930 X .050 Thk

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 715-3003

Pin, Spirol Spring, 3/16 Dia X .75 Lg

$6.99

$

In Stock, Qty 7

0

28

Cub Cadet 711-3224

Spacer, .390/.400 ID X .75 OD X .44 Lg

$

$

Not available

29

Cub Cadet 710-3004

Screw, Hex Head Cutting, 5/16-18 X .75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 719-3009

Hanger, Front Mower Support
(Superseded to 919-3009)

$69.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-3015

Nut, Hex Jam, 5/8-11 GR5

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-3016

Nut, Hex Insert Top Lock, 5/8-11 GR5

$6.99

$

In Stock, Qty 13

0

33

Cub Cadet 711-3019

Pin, Clevis, 1/2 Dia X 7.0 Lg
(Superseded to 911-3019)

$29.99

$

In Stock, Qty 5

0

34

Cub Cadet 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .06 Thk

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 714-3002

Pin, Cotter, 3/16 Dia X 1.0 Lg

$3.99

$

In Stock, Qty 7

0

37

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 710-3178

Bolt, Short Neck Carr, 3/8-16 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 17863

Skirt, Extension
(Superseded to 17863-0637)

Variations

Cub Cadet 17863-0637

SKIRT-EXTENSION - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 710-0167

Bolt, Carriage, 1/4-20 X 5.0
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0
