327 PT5S - Husqvarna Pole Saw (2011-06) TELESCOPE POLE Parts Diagram

Pole Saw

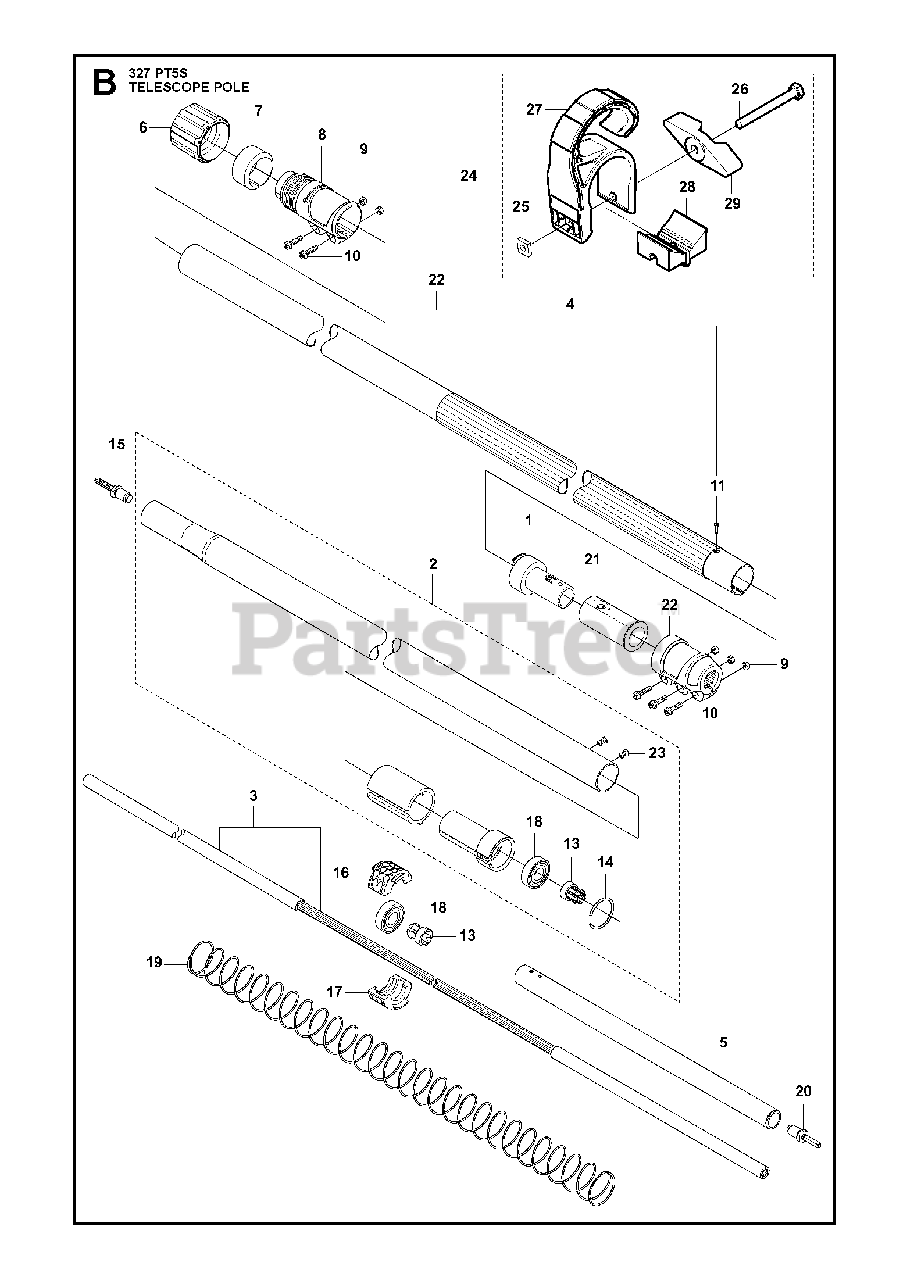

TELESCOPE POLE Parts Diagram

  • Title

1

Husqvarna 576926001

BEARING SLEEVE

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576925801

TUBE ASSY

$136.99

$

Usually ships in 3-10 days

0

3

Husqvarna 576925601

DRIVE SHAFT ASSY

$68.99

$

Usually ships in 3-10 days

0

4

Husqvarna 576925501

FRAME TUBE

$113.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576925701

TUBE FOR MODEL 327PT5S

$26.99

$

In Stock, only 1 left!

0

6

Husqvarna 510096101

NUT

$10.99

$

In Stock, Qty 5

0

7

Husqvarna 522742601

RING

$4.49

$

In Stock, only 1 left!

0

8

Husqvarna 510096001

CLAMPING SLEEVE
(Superseded to 597194301)

$13.99

$

In Stock, only 2 left!

0

9

Husqvarna 731231401

NUT

$2.49

$

In Stock, only 2 left!

0

10

Husqvarna 525755102

SCREW

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 530016064

SCREW
(Superseded to 545227101)

Note: . 4

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 537094501

SLIDING SHOE

Note: . 2

$7.99

$

In Stock, Qty 6

0

14

Husqvarna 735312810

RETAINING RING SGH 28

Note: . 2

$7.49

$

In Stock, only 3 left!

0

15

Husqvarna 574618901

ADAPTER
(Superseded to 574618902)

$17.99

$

In Stock, only 3 left!

0

16

Husqvarna 510097301

BEARING HOUSING

$5.99

$

In Stock, only 2 left!

0

17

Husqvarna 510094701

BEARING HOUSING

$21.99

$

In Stock, only 2 left!

0

18

Husqvarna 738210102

BALL BEARING

$20.99

$

In Stock, only 3 left!

0

19

Husqvarna 510095201

SPRING

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 574619101

ADAPTER

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 510095901

GUIDE BUSHING

$5.99

$

In Stock, only 1 left!

0

22

Husqvarna 522597001

CLAMPING SLEEVE

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 576221201

RIVET

Note: . 2

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 579264001

LOOP

$20.99

$

In Stock, only 3 left!

0

25

Husqvarna 502197101

NUT

Note: . 24

$8.99

$

In Stock, only 1 left!

0

26

Husqvarna 725238151

SCREW M6X55

Note: . 24

$4.99

$

In Stock, only 2 left!

0

27

Husqvarna 522723101

LOOP

$13.99

$

In Stock, only 2 left!

0

28

Husqvarna 522723301

SPACING BLOCK

Note: . 24

$5.99

$

In Stock, only 2 left!

0

29

Husqvarna 502203801

HANDLE

Note: . 24

$7.99

$

In Stock, only 1 left!

0
