327 PT5S - Husqvarna Pole Saw (2011-06) STARTER Parts Diagram

Pole Saw

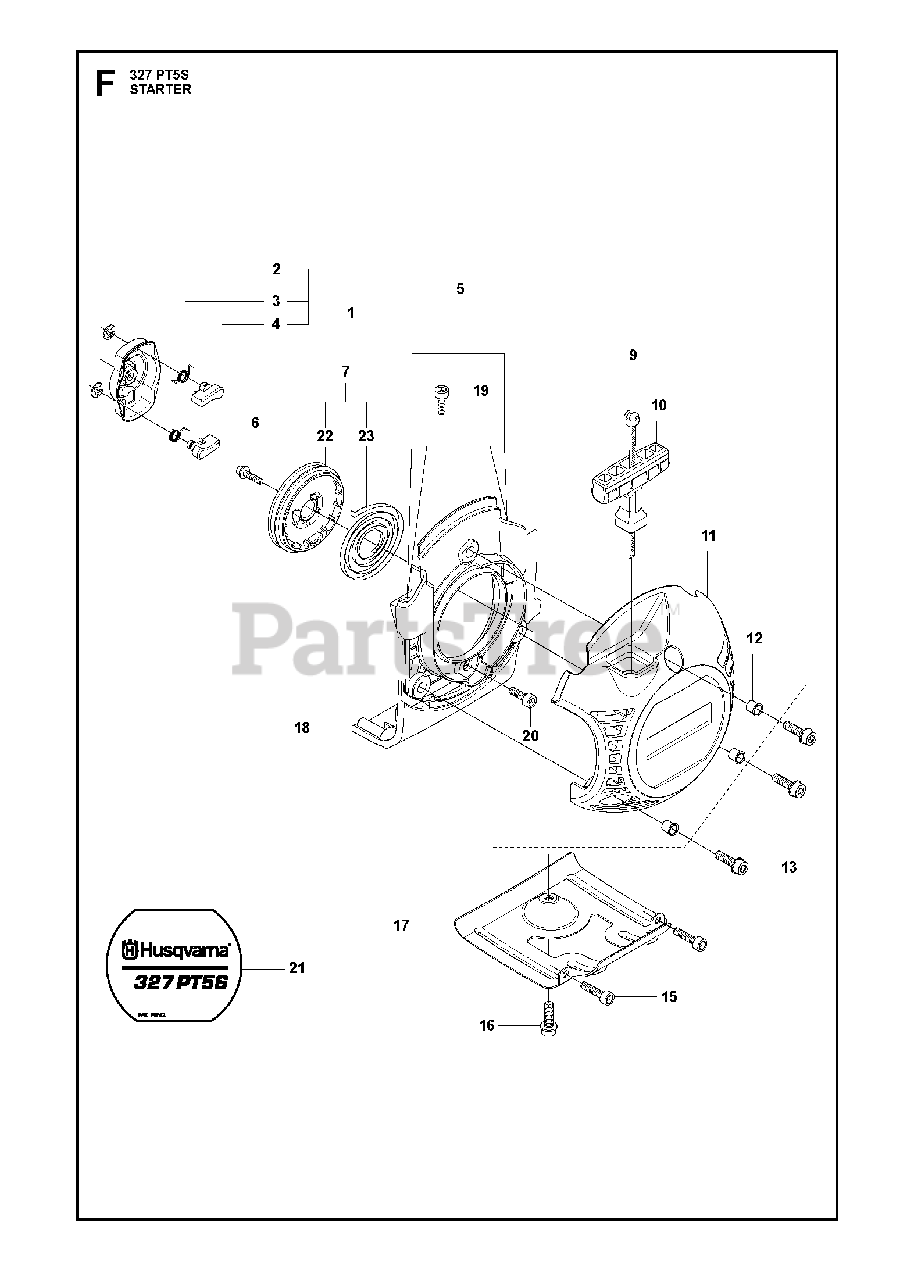

STARTER Parts Diagram

  • Title

1

Husqvarna 503873305

STARTER PAWL BRIDGE

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 735310820

E-RING 4

Note: . 1

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 503873601

SPRING

Note: . 1

$7.49

$

In Stock, only 3 left!

0

4

Husqvarna 503873502

STARTER PAWL
(Superseded to 544011401)

Note: . 1

$11.99

$

In Stock, only 3 left!

0

5

Husqvarna 505198301

STARTER ASSY

$120.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503218876

SCREW

Note: . 5

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 537332303

STARTER PULLEY

Note: . 5

$20.99

$

Usually ships in 3-10 days

0

8

Husqvarna 537379302

SPACING SLEEVE

Note: . 5

$8.99

$

In Stock, only 2 left!

0

9

Husqvarna 505305125

STARTER ROPE

Note: . 5

$9.49

$

In Stock, Qty 6

0

10

Husqvarna 537008401

STARTER HANDLE

Note: . 5

$11.99

$

In Stock, only 2 left!

0

11

Husqvarna 505141301

STARTER HOUSING
(Superseded to 505198301)

Note: . 5

$120.99

$

Usually ships in 3-10 days

0

12

Husqvarna 537379302

SPACING SLEEVE

Note: . 5

$8.99

$

In Stock, only 2 left!

0

13

Husqvarna 503200316

SCREW

Note: M5x16

$6.49

$

In Stock, Qty 20+

0

15

Husqvarna 503216618

SCREW

$7.49

$

In Stock, Qty 5

0

16

Husqvarna 503201412

SCREW

Note: M5x12

$3.99

$

In Stock, Qty 11

0

17

Husqvarna 537034101

PLATE

$20.99

$

In Stock, Qty 5

0

18

Husqvarna 505141601

BRACKET ASSY

Note: . 5

$36.88

$

Usually ships in 3-10 days

0

19

Husqvarna 574477003

SCREW IHSCFMO

Note: Captive screws. 5

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 503215316

SCREW

Note: . 5

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 537322412

LABEL

$

$

Not available

22

Husqvarna 525295301

Note: . 5

$

$

Currently unavailable

23

Husqvarna 503859901

STARTER SPRING

Note: . 5

$31.99

$

In Stock, only 1 left!

0
