327 LX - Husqvarna String Trimmer (2009-08) Shaft & Handle Parts Diagram

String Trimmer

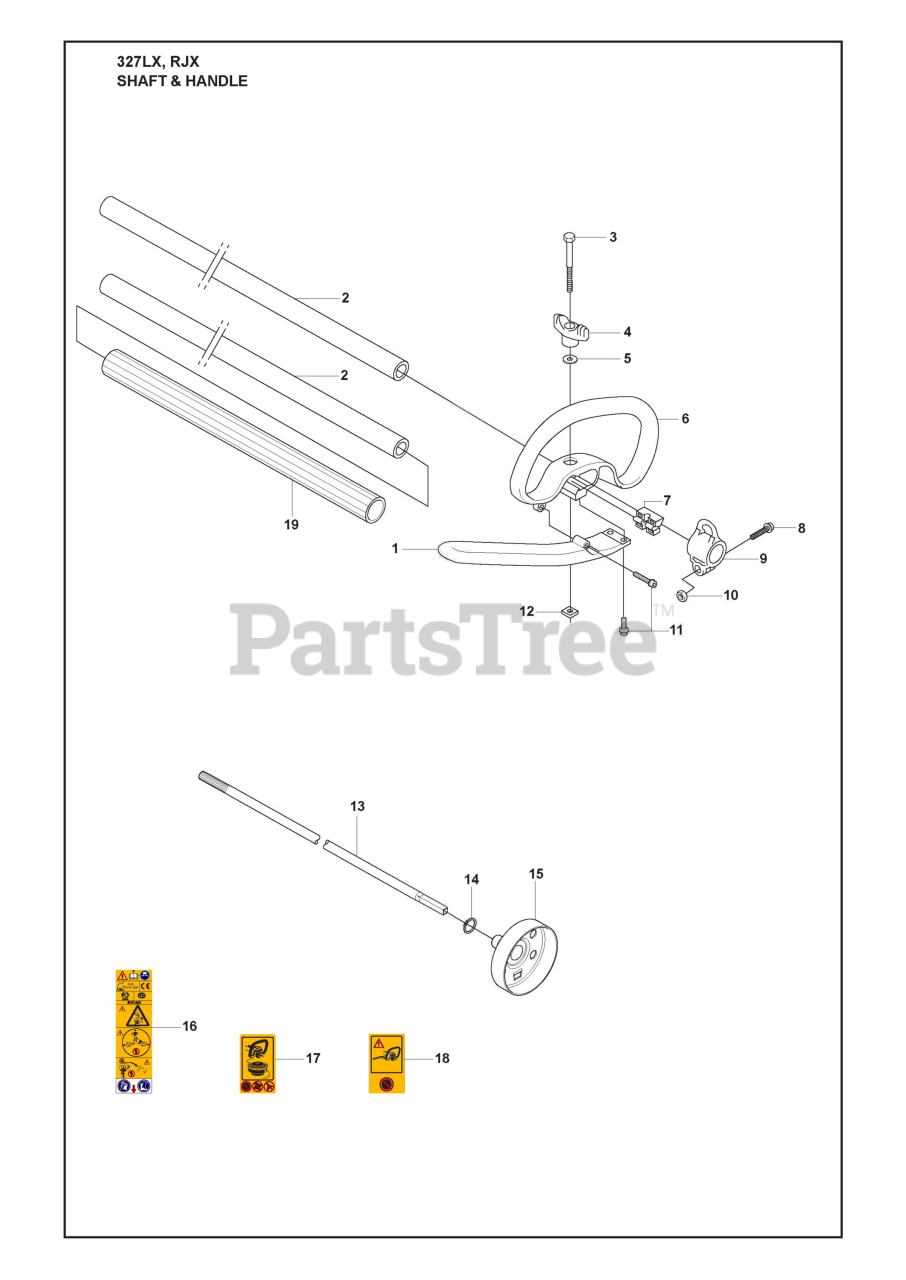

Shaft & Handle Parts Diagram

  • Title
1

Husqvarna 503997801

HANDLE EXTENSION
(Superseded to 503997804)

Note: RJx

$17.99

$

In Stock, only 2 left!

0

2

Husqvarna 503888801

DRIVE TUBE ASSEMBLY

Note: L=1483mm Dia.=24mm

$68.99

$

In Stock, only 3 left!

0

2

Husqvarna 540053801

TUBE DRIVESHAFT ASSY

Note: RJx L=1483mm Dia.=24mm France

$62.99

$

Usually ships in 3-10 days

0

3

Husqvarna 725237851

SCREW

Note: L, LS

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 725238051

SCREW M6X50

Note: Lx

$3.49

$

In Stock, only 1 left!

0

4

Husqvarna 503879001

KNOB

Note: Lx

$6.99

$

In Stock, only 1 left!

0

5

Husqvarna 503230061

WASHER

Note: L, LS

$3.99

$

In Stock, only 1 left!

0

6

Husqvarna 503871901

RP HANDLE, LOOP
(Superseded to 503871906)

Note: L, LS

$36.99

$

In Stock, only 1 left!

0

6

Husqvarna 503871903

%HANDLE, LOOP
(Superseded to 503871908)

Note: Lx

$43.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503940301

SPACER PLASTIC

$11.99

$

In Stock, only 1 left!

0

8

Husqvarna 503200716

SCREW
(Superseded to 525755101)

Note: RJx

$4.99

$

In Stock, Qty 6

0

9

Husqvarna 503941001

HARNESS HOLDER

Note: RJx

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 731231401

NUT

Note: RJx

$2.49

$

In Stock, Qty 8

0

11

Husqvarna 503216816

SCREW

Note: RJx

$4.99

$

In Stock, only 2 left!

0

$8.99

$

In Stock, only 1 left!

0

13

Husqvarna 537234801

DRIVE SHAFT

Note: L=1525mm Dia.=7mm

$87.99

$

In Stock, Qty 6

0

14

Husqvarna 735311200

RETAINING RING SGA 10

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 537237501

CLUTCH DRUM

$47.99

$

In Stock, only 1 left!

0

16

Husqvarna 537294801

RP WARNING DECAL
(Superseded to 589295101)

$12.99

$

Usually ships in 3-10 days

0

17

Husqvarna 503795601

DECAL WARNING "NO BLADES"

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 537101001

DECAL

Note: RJx

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 537085501

GRIP

Note: France

$28.99

$

Usually ships in 3-10 days

0
