327 LS - Husqvarna String Trimmer (SN: 20120100001 & Above) COVER Parts Diagram

String Trimmer

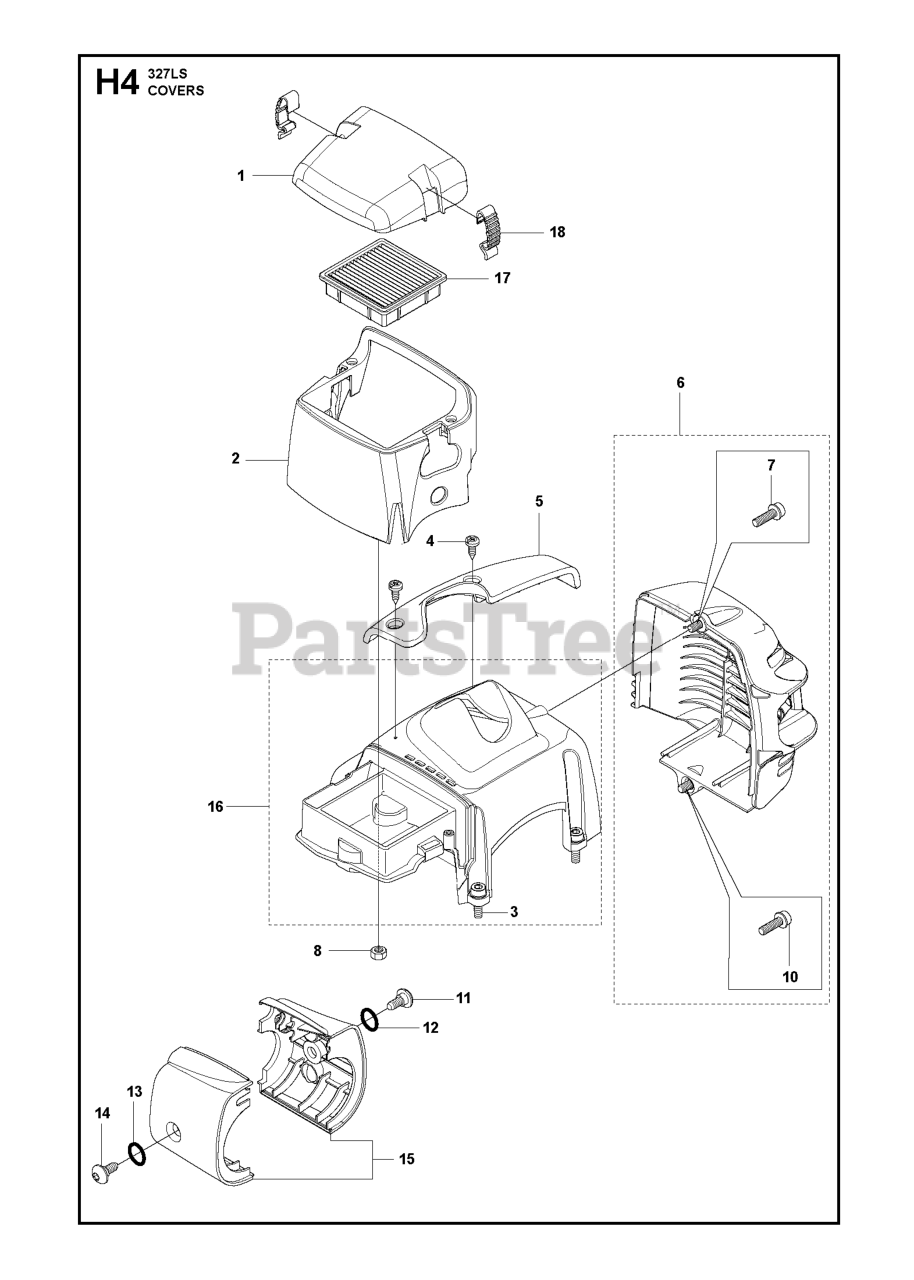

COVER Parts Diagram

  • Title

5

Husqvarna 502481601

ARM PROTECTION

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503961301

SCREW MT5X11

$6.49

$

In Stock, Qty 6

0

3

Husqvarna 574477003

SCREW IHSCFMO

Note: Captive screws

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 502481501

COVER

$20.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 8

0

17

Husqvarna 505271001

FILTER

$17.99

$

In Stock, only 1 left!

0

6

Husqvarna 544848102

HEAT PROTECTOR

Note: Captive screws

$26.99

$

Usually ships in 3-10 days

0

1

Husqvarna 505142001

FILTER COVER

$

$

Not available

16

Husqvarna 505141802

CYLINDER COVER ASSY

Note: Captive screws

$48.99

$

Usually ships in 3-10 days

0

13

Husqvarna 740420600

O-RING 8X1.6

$3.99

$

In Stock, only 2 left!

0

11

Husqvarna 503961301

SCREW MT5X11

$6.49

$

In Stock, Qty 6

0

4

Husqvarna 503213512

SCREW

$3.49

$

In Stock, Qty 9

0

2

Husqvarna 505142201

COVER

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 740420600

O-RING 8X1.6

$3.99

$

In Stock, only 2 left!

0

18

Husqvarna 537387201

BUCKLE

$

$

Not available

10

Husqvarna 574477003

SCREW IHSCFMO

Note: Captive screws

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 574181501

SCREW IHSCFTO

Note: Captive screws

$6.49

$

Usually ships in 3-10 days

0
