327 HDA 65 X - Husqvarna Hedge Trimmer (2009-04) Repair Parts and Gear Parts Diagram

Hedge Trimmer

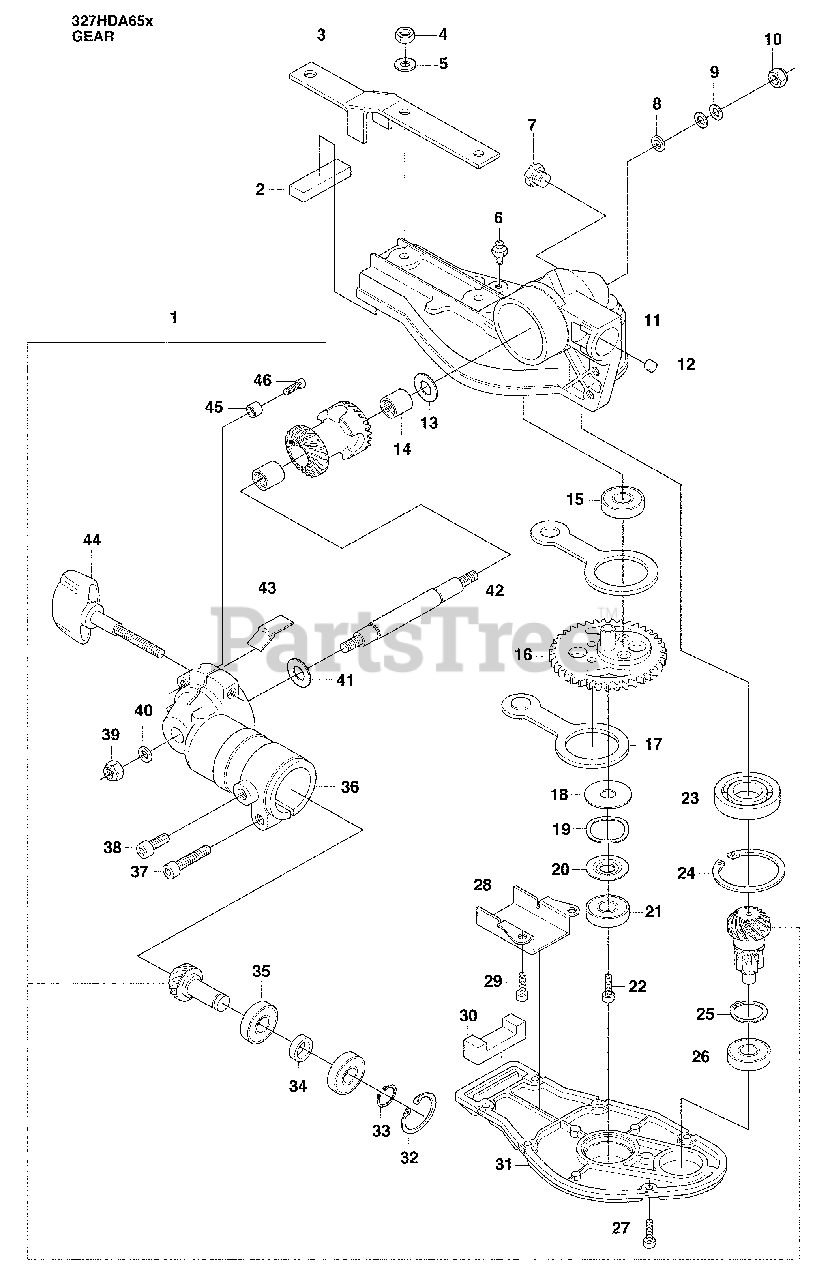

Repair Parts and Gear Parts Diagram

  • Title

1

Husqvarna 544064001

GEAR KIT

$193.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537232201

Gasket
(Superseded to 575746301)

$7.99

$

In Stock, only 1 left!

0

3

Husqvarna 537232101

Bracket

$28.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503221012

Nut

$3.49

$

In Stock, Qty 7

0

5

Husqvarna 734114601

Washer, 7/32 X 1/2 X 16 Gauge
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

6

Husqvarna 738881001

GREASE NIPPLE

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 537416601

PLUG *

$

$

Not available

8

Husqvarna 734115201

Washer, M6

$4.99

$

In Stock, only 2 left!

0

9

Husqvarna 737385200

Washer

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 732251601

Hex Flange Nut, M6

$3.49

$

In Stock, Qty 11

0

11

Husqvarna 537231701

Gear Housing

$91.99

$

Usually ships in 3-10 days

0

12

Husqvarna 544093101

PLUG

$

$

Not available

13

Husqvarna 537294201

Washer

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 537233601

Support Bushing

$20.99

$

Usually ships in 3-10 days

0

15

Husqvarna 738219804

Ball Bearing

$10.99

$

In Stock, only 3 left!

0

16

Husqvarna 537232801

GEAR

$85.99

$

In Stock, only 1 left!

0

17

Husqvarna 537232001

Connecting Rod

$13.99

$

In Stock, Qty 6

0

18

Husqvarna 537404801

Washer

$10.99

$

In Stock, only 1 left!

0

19

Husqvarna 503230302

Washer

$17.99

$

In Stock, only 1 left!

0

20

Husqvarna 537341801

Washer

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 738219804

Ball Bearing

$10.99

$

In Stock, only 3 left!

0

22

Husqvarna 725532305

Screw, MC6S 5 X 10
(Superseded to 725532555)

$4.99

$

In Stock, Qty 5

0

23

Husqvarna 537406402

Ball Bearing

$13.99

$

Usually ships in 3-10 days

0

24

Husqvarna 735313310

Retaining Ring

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 735311900

Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 738219804

Ball Bearing

$10.99

$

In Stock, only 3 left!

0

27

Husqvarna 725529101

Socket Head Capscrew, M4 X 0.7 X 12

$3.49

$

In Stock, Qty 10

0

28

Husqvarna 537341501

Plate

$6.99

$

In Stock, only 1 left!

0

29

Husqvarna 725528755

Screw, MC6S 4 X 8

$3.49

$

In Stock, only 2 left!

0

30

Husqvarna 537234201

Gasket
(Superseded to 575746301)

$7.99

$

In Stock, only 1 left!

0

31

Husqvarna 537231801

Cover

$56.99

$

Usually ships in 3-10 days

0

32

Husqvarna 735312510

Retaining Ring

$3.49

$

In Stock, only 3 left!

0

33

Husqvarna 735311100

Retaining Ring

$3.49

$

In Stock, only 2 left!

0

34

Husqvarna 537233701

Spacer

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 738219904

Ball Bearing

$26.99

$

Usually ships in 3-10 days

0

36

Husqvarna 537231601

Gear Housing

$68.99

$

In Stock, only 1 left!

0

37

Husqvarna 503200725

Screw, M5 X 25 Pl Hsc Ih X

$4.99

$

In Stock, Qty 11

0

38

Husqvarna 503201412

Screw, M5 X 12 Ms Hcs Ih X

$3.99

$

In Stock, Qty 11

0

39

Husqvarna 732251601

Hex Flange Nut, M6

$3.49

$

In Stock, Qty 11

0

40

Husqvarna 734115201

Washer, M6

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 537294201

Washer

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 537232601

Shaft

$31.99

$

Usually ships in 3-10 days

0

43

Husqvarna 537394901

SEALING

$

$

Not available

44

Husqvarna 537442301

Knob

$28.99

$

Usually ships in 3-10 days

0

45

Husqvarna 537233501

SPACER

$

$

Not available

46

Husqvarna 725532955

Screw, MC6S 5 X 16

$7.99

$

In Stock, Qty 20+

0
