326431-3637-08 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

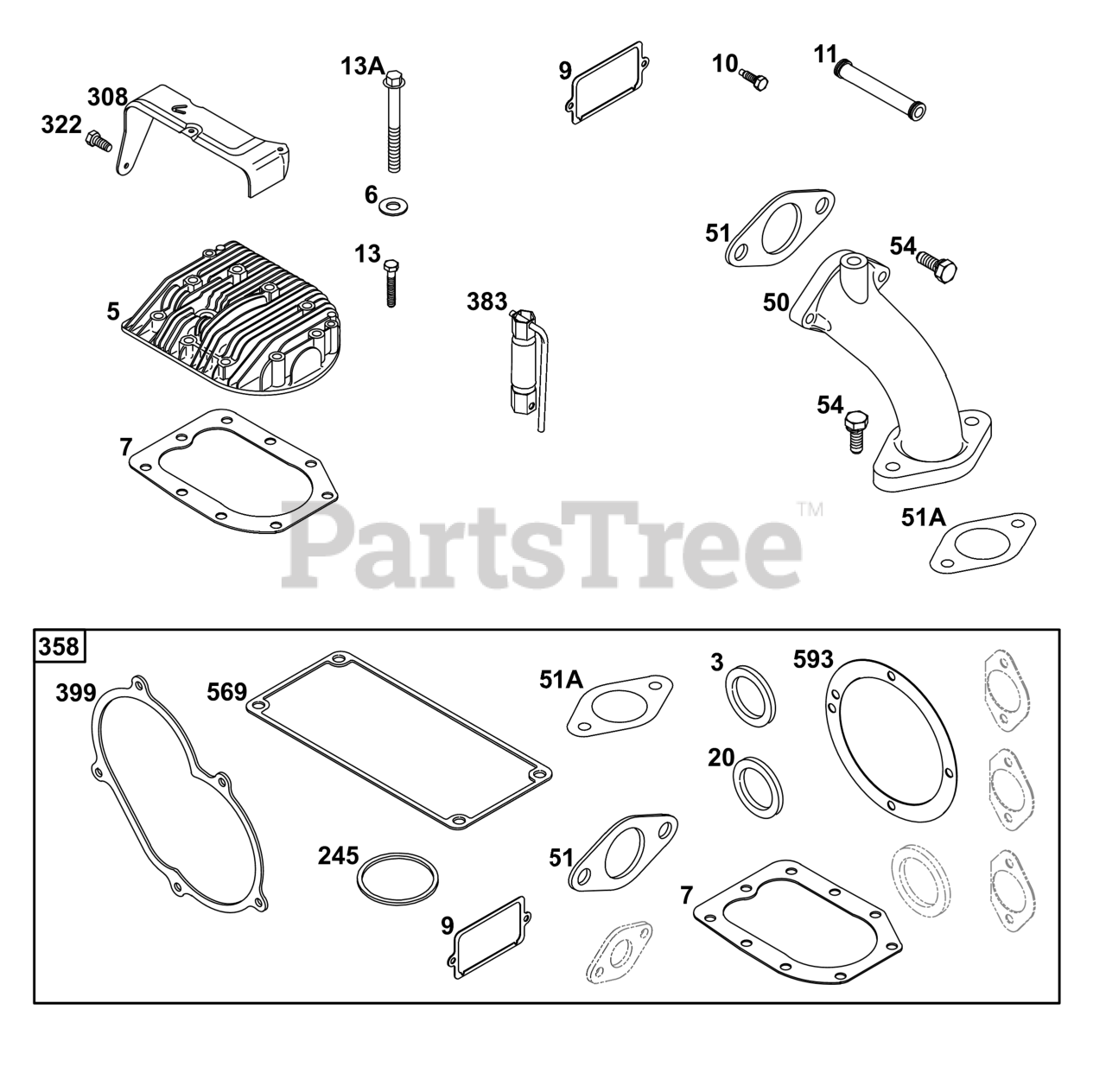

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 691712

HEAD, Cylinder

$166.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 691261

WASHER

Note: (Cylinder Head)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 692231

GASKET, Cylinder Head

$11.99

$

In Stock, Qty 6

0

9

Briggs & Stratton 27803S

GASKET, Breather

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 690294

SCREW

Note: (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 691512

TUBE, Breather

$

$

Not available

13

Briggs & Stratton 691614

SCREW

Note: (Cylinder Head)

$6.99

$

Usually ships in 2-12 days

0

13A

Briggs & Stratton 691441

SCREW

Note: (Cylinder Head)

$7.49

$

In Stock, Qty 5

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

50

MANIFOLD, Intake

$

$

Not available

51

Briggs & Stratton 27381S

GASKET, Intake

$4.99

$

In Stock, Qty 9

0

51A

Briggs & Stratton 692214

GASKET, Intake

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 691681

SCREW

Note: (Intake Manifold)

$8.49

$

In Stock, only 1 left!

0

245

GASKET, Fuel Bowl

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

308

Briggs & Stratton 691731

COVER, Cylinder Head

$21.99

$

Usually ships in 2-12 days

0

322

Briggs & Stratton 692198

SCREW

Note: (Cylinder Head Cover)

$5.99

$

In Stock, Qty 11

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

399

GASKET, Counterweight Cover

Note: (Part information located in Crankshaft Group.)

$

$

Not available

569

GASKET, Engine Base

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

593

GASKET, Bearing Support

Note: (Part information located in Cylinder Group.)

$

$

Not available
