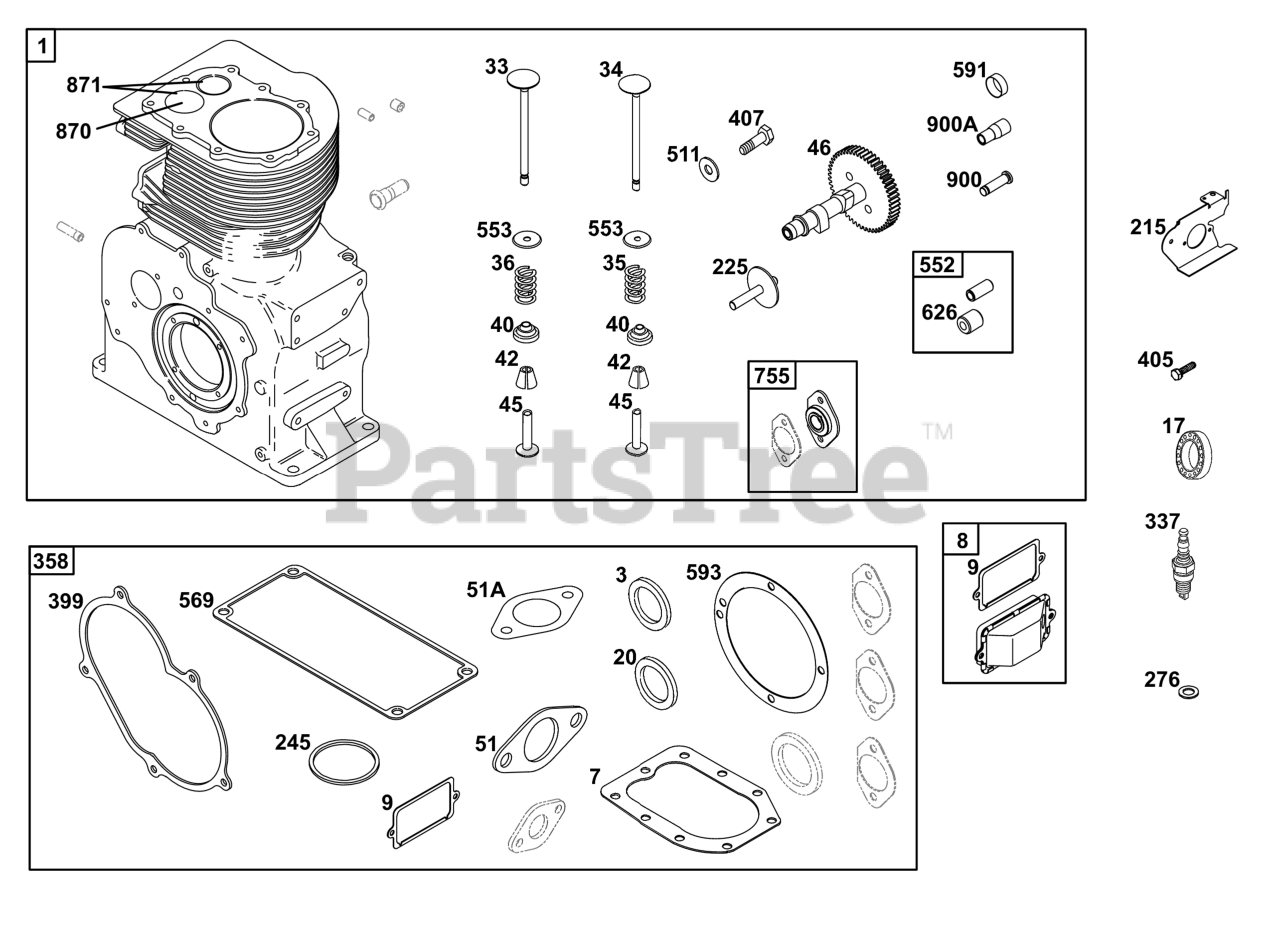

326431-3637-08 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 395663

CYLINDER ASSEMBLY

Note: (No Longer Available)

$744.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 691948

SEAL, Oil

Note: (Magneto Side)

$12.99

$

Usually ships in 2-12 days

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

8

Briggs & Stratton 495738

BREATHER ASSEMBLY

$53.99

$

Usually ships in 2-12 days

0

9

GASKET, Breather

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

17

Briggs & Stratton 691938

BEARING, Ball

Note: (Cylinder)

$

$

Not available

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

33

Briggs & Stratton 394436

VALVE, Exhaust

$65.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 394435

VALVE, Intake

$64.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691597

SPRING, Valve

Note: (Intake)

$10.99

$

In Stock, only 4 left!

0

36

Briggs & Stratton 691597

SPRING, Valve

Note: (Exhaust)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 691939

RETAINER, Valve

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

KEEPER, Valve

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 691594

TAPPET, Valve

$32.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 692855

CAMSHAFT

$288.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

215

Briggs & Stratton 291871

GUIDE, Air

$14.99

$

Usually ships in 2-12 days

0

225

Briggs & Stratton 691357

SHAFT, Governor Gear

$11.99

$

Usually ships in 2-12 days

0

245

GASKET, Fuel Bowl

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

276

Briggs & Stratton 690258

WASHER, Sealing

$6.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 796112S

PLUG, Spark

$4.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 593665

GASKET SET-ENGINE

Note: (Service Kits can include parts not for this engine.)

$63.99

$

Usually ships in 2-12 days

0

399

GASKET, Counterweight Cover

Note: (Part information located in Crankshaft Group.)

$

$

Not available

405

Briggs & Stratton 690290

SCREW

Note: (Back Plate)

$3.49

$

Usually ships in 2-12 days

0

407

Briggs & Stratton 690810

SCREW

Note: (Camshaft Bearing)

$3.49

$

In Stock, only 2 left!

0

511

Briggs & Stratton 690402

WASHER

Note: (Camshaft Bearing)

$4.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 393666

BUSHING, Governor Crank

$9.49

$

Usually ships in 2-12 days

0

553

Briggs & Stratton 690269

RETAINER, Valve

$4.99

$

Usually ships in 2-12 days

0

569

GASKET, Engine Base

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

591

Briggs & Stratton 691746

PLUG, Camshaft

$7.49

$

In Stock, only 1 left!

0

593

Briggs & Stratton 691311

GASKET, Bearing Support

$12.99

$

Usually ships in 2-12 days

0

626

Briggs & Stratton 690512

SPACER

$5.99

$

Usually ships in 2-12 days

0

755

Briggs & Stratton 299706

BEARING, Camshaft

$54.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 691583

SEAT, Valve

Note: (Exhaust)

$49.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231218

BUSHING, Valve Guide

$14.99

$

In Stock, Qty 7

0

900

Briggs & Stratton 691767

SHAFT, Gear

$13.99

$

Usually ships in 2-12 days

0

900A

Briggs & Stratton 691768

SHAFT, Gear

$13.99

$

Usually ships in 2-12 days

0
