326431-3637-08 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

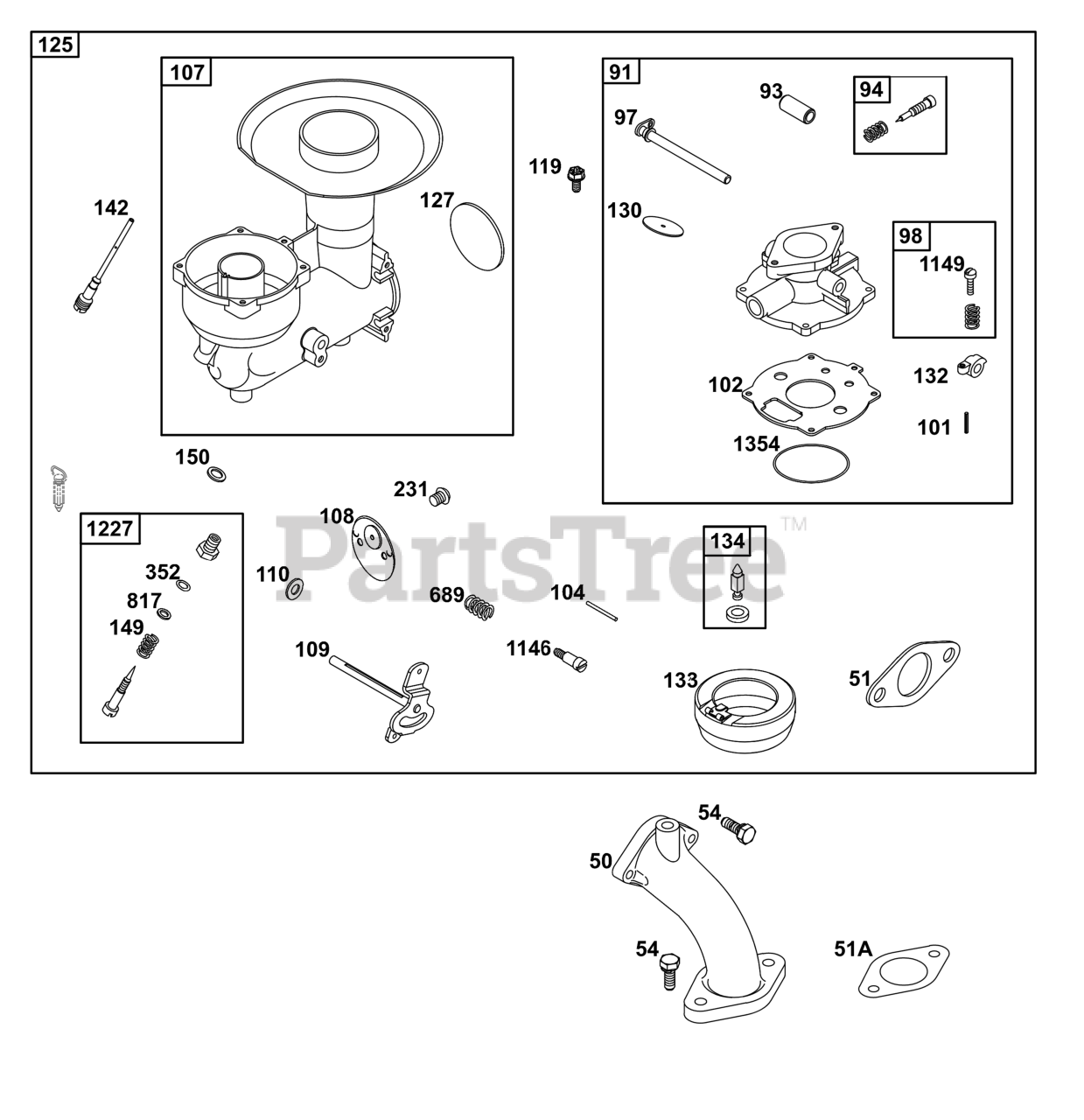

Carburetor Group Parts Diagram

  • Title

50

Briggs & Stratton 691152

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$78.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

54

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

91

BODY, Upper Carburetor

Note: (No Longer Available)

$

$

Not available

93

Briggs & Stratton 691769

BUSHING, Throttle Shaft

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

VALVE, Idle Mixture

$11.99

$

In Stock, only 1 left!

0

97

Briggs & Stratton 691944

SHAFT, Throttle

$39.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 693942

KIT, Idle Speed

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 691616

PIN, Shaft

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 692215

GASKET, Carburetor Body

$5.49

$

In Stock, only 1 left!

0

104

Briggs & Stratton 691775

PIN, Float Hinge

$3.99

$

In Stock, only 1 left!

0

107

BODY, Lower Carburetor

Note: (No Longer Available)

$

$

Not available

108

Briggs & Stratton 690621

VALVE, Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 691353

SHAFT, Choke

$29.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 691186

WASHER

Note: (Choke Shaft)

$4.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 691090

SCREW

Note: (Upper Carburetor Body To Lower Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

125

CARBURETOR

Note: (No Longer Available)

$

$

Not available

127

Briggs & Stratton 690627

PLUG, Welch

$

$

Not available

130

Briggs & Stratton 691727

VALVE, Throttle

$6.99

$

Usually ships in 2-12 days

0

132

Briggs & Stratton 691708

STOP, Throttle

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 692265

FLOAT, Carburetor

$11.99

$

In Stock, Qty 8

0

134

KIT, Needle/Seat

Note: (No Longer Available)

$

$

Not available

142

Briggs & Stratton 691966

NOZZLE, Carburetor

$21.99

$

In Stock, only 3 left!

0

149

Briggs & Stratton 691592

SPRING, Needle Valve

$3.99

$

In Stock, only 4 left!

0

150

Briggs & Stratton 691610

GASKET, Nozzle

$6.49

$

In Stock, only 1 left!

0

231

Briggs & Stratton 691437

SCREW

Note: (Choke Valve)

$3.99

$

In Stock, only 3 left!

0

352

Briggs & Stratton 690257

WASHER

Note: (High Speed Valve)

$4.99

$

In Stock, only 1 left!

0

689

Briggs & Stratton 691590

SPRING, Friction

$4.99

$

In Stock, Qty 7

0

817

Briggs & Stratton 691606

SEAL, O-Ring

Note: (High Speed Valve)

$5.99

$

In Stock, only 3 left!

0

1146

Briggs & Stratton 691587

SCREW

Note: (Choke Shaft)

$6.49

$

In Stock, only 1 left!

0

1149

Briggs & Stratton 691615

SCREW

Note: (Throttle Shaft)

$3.99

$

Usually ships in 2-12 days

0

1227

Briggs & Stratton 99525S

VALVE, High Speed

$12.99

$

In Stock, only 1 left!

0

1354

Briggs & Stratton 691929

SEAL, O-Ring

Note: (Lower Carburetor Body)

$5.99

$

Usually ships in 2-12 days

0
