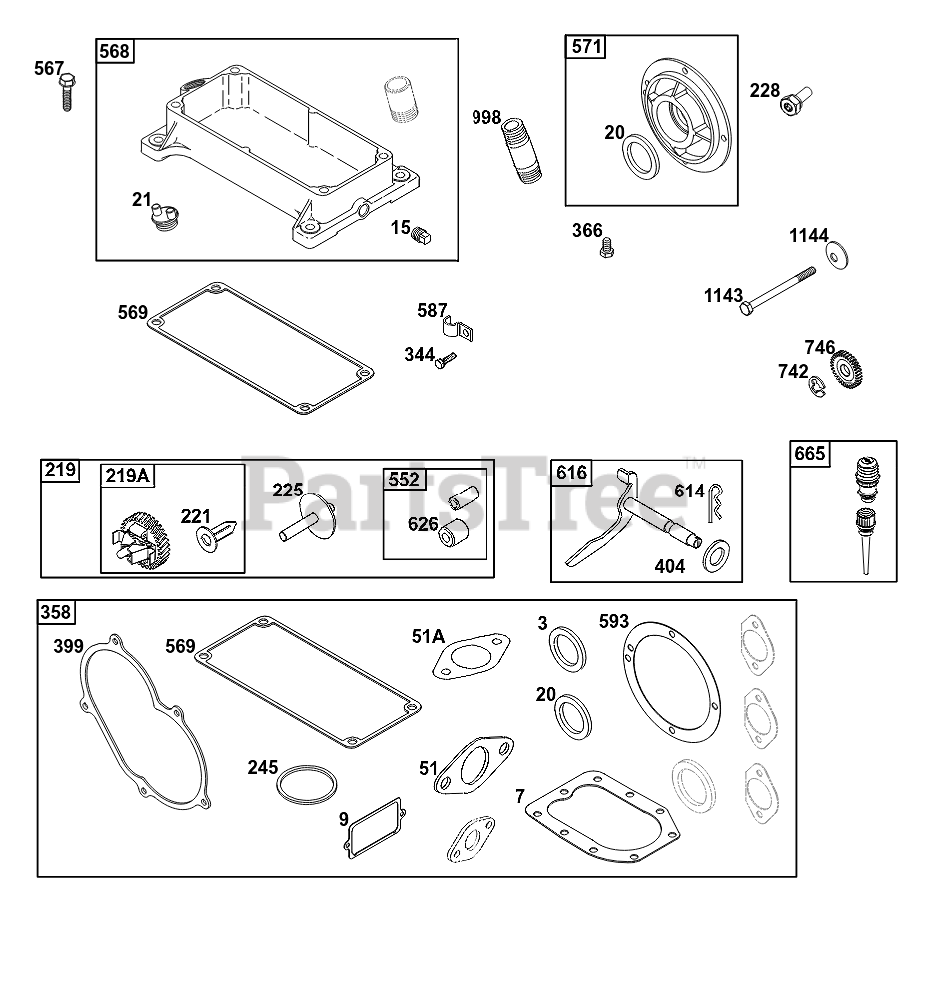

326431-3521-08 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Group Parts Diagram

Horizontal Engine

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

9

GASKET, Breather

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 691948

SEAL, Oil

Note: (PTO Side)

$12.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

CAP-OIL FILL

$4.49

$

In Stock, Qty 20+

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

219

Briggs & Stratton 291192

GEAR, Governor

$79.99

$

Usually ships in 2-12 days

0

219A

Briggs & Stratton 393720

GEAR, Governor

$61.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

225

SHAFT, Governor Gear

Note: (Part Information Located in the Cylinder Group.)

$

$

Not available

228

Briggs & Stratton 691681

SCREW

Note: (Bearing Support)

$8.49

$

In Stock, only 1 left!

0

245

GASKET, Fuel Bowl

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

344

Briggs & Stratton 691058

SCREW

Note: (Cable Clamp)

$5.99

$

In Stock, Qty 11

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

366

Briggs & Stratton 690304

SCREW

Note: (Timing Hole Plug)

$3.99

$

Usually ships in 2-12 days

0

399

GASKET, Counterweight Cover

Note: (Part information located in Crankshaft Group.)

$

$

Not available

404

Briggs & Stratton 690264

WASHER

Note: (Governor Crank)

$4.49

$

Usually ships in 2-12 days

0

552

BUSHING, Governor Crank

Note: (Part Information Located in the Cylinder Group.)

$

$

Not available

567

Briggs & Stratton 691104

SCREW

Note: (Engine Base)

$4.49

$

In Stock, only 2 left!

0

568

Briggs & Stratton 294751

SUMP, Engine

$288.99

$

Usually ships in 2-12 days

0

569

Briggs & Stratton 691569

GASKET, Crankcase

$11.99

$

In Stock, Qty 5

0

571

Briggs & Stratton 291710

SUPPORT, Bearing

$67.99

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 690389

CLAMP, Cable

$3.99

$

Usually ships in 2-12 days

0

593

GASKET, Bearing Support

Note: (Part information located in Cylinder Group.)

$

$

Not available

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 291364

CRANK, Governor

$35.99

$

Usually ships in 2-12 days

0

626

Briggs & Stratton 690512

SPACER

$5.99

$

Usually ships in 2-12 days

0

665

Briggs & Stratton 592239

MINDER-OIL

$35.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 691080

RETAINER, E Ring

$4.49

$

Usually ships in 2-12 days

0

746

Briggs & Stratton 691803

GEAR, Idler

$41.99

$

Usually ships in 2-12 days

0

998

Briggs & Stratton 690502

PIPE, Oil

$5.99

$

Usually ships in 2-12 days

0

1143

Briggs & Stratton 691081

SCREW

Note: (Drive Gear Cover)

$6.49

$

Usually ships in 2-12 days

0

1144

Briggs & Stratton 690301

WASHER

Note: (Drive Gear Cover)

$5.99

$

Usually ships in 2-12 days

0
