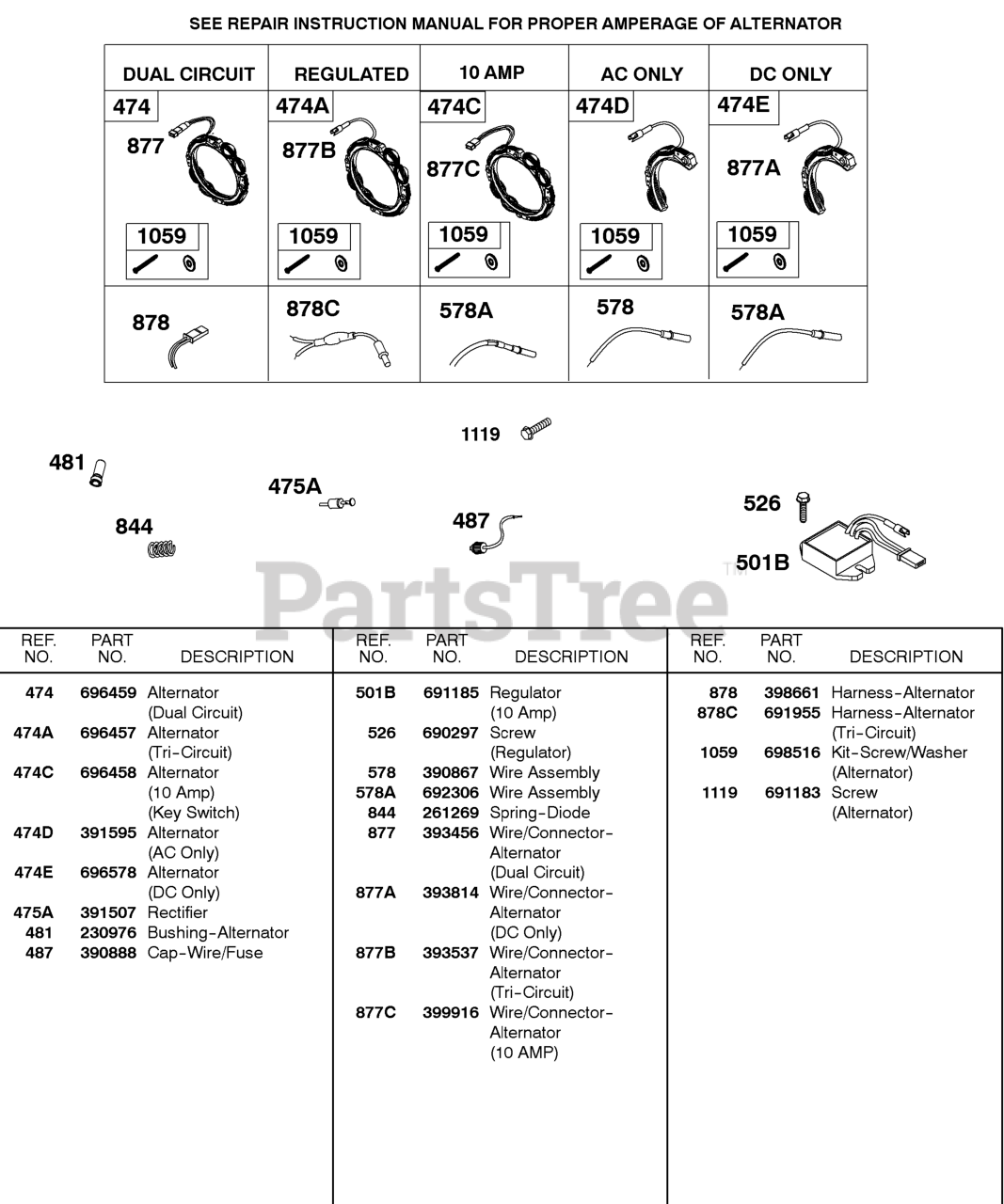

326431-0050-XX - Briggs & Stratton Horizontal Engine Alternators Parts Diagram

Horizontal Engine

Alternators Parts Diagram

  • Title

10

Briggs & Stratton 690294

Screw

Note: (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

474A

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: (Tri Circuit)

$102.99

$

Usually ships in 2-12 days

0

474C

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

Note: (10, 13, 16 Amp)(Key Switch)

$101.99

$

In Stock, Qty 20+

0

474D

Briggs & Stratton 391595

Alternator

Note: (AC Only)

$98.99

$

Usually ships in 2-12 days

0

474E

Briggs & Stratton 696578

Alternator
(Superseded to 592828)

Note: (DC Only)

$124.99

$

Usually ships in 2-12 days

0

475A

Briggs & Stratton 391507

Rectifier

$17.99

$

Usually ships in 2-12 days

0

481

Briggs & Stratton 230976

Bushing-Alternator

Note: (Loose)

$4.49

$

Usually ships in 2-12 days

0

487

Briggs & Stratton 390888

Cap-Wire/Fuse

$14.99

$

Usually ships in 2-12 days

0

501B

Briggs & Stratton 691185

Regulator
(Superseded to 845907)

Note: (10 Amp Regulator)

$61.99

$

In Stock, Qty 20+

0

526

Briggs & Stratton 690297

Screw

Note: (Regulator)

$3.49

$

In Stock, Qty 12

0

578

Briggs & Stratton 390867

Wire Assembly

$18.99

$

Usually ships in 2-12 days

0

578A

Briggs & Stratton 692306

WIRE ASSEMBLY

$17.99

$

Usually ships in 2-12 days

0

578A

Briggs & Stratton 298582

Wire Assembly

Note: (2 Wires, 5-7/16", And 3-7/8" Long)(Insulated Support Ring Terminal,Insulated Support Ring Terminal, And Flag Ring Terminal)

$17.99

$

Usually ships in 2-12 days

0

844

Briggs & Stratton 261269

Spring-Diode

$2.49

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

Note: (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

877A

Briggs & Stratton 393814

Wire/Connector-Alternator

Note: (DC Only)

$18.99

$

In Stock, only 2 left!

0

877B

Briggs & Stratton 393537

Wire/Connector-Alternator

Note: (Tri Circuit)

$

$

Not available

877C

Briggs & Stratton 399916

Wire/Connector-Alternator

Note: (10 Amp Circuit)

$12.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 398661

Harness-Alternator

$34.99

$

Usually ships in 2-12 days

0

878C

Briggs & Stratton 691955

Harness-Alternator

$69.99

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
