326 RX - Husqvarna String Trimmer (SN: 20091800001 & Above) BEVEL GEAR Parts Diagram

String Trimmer

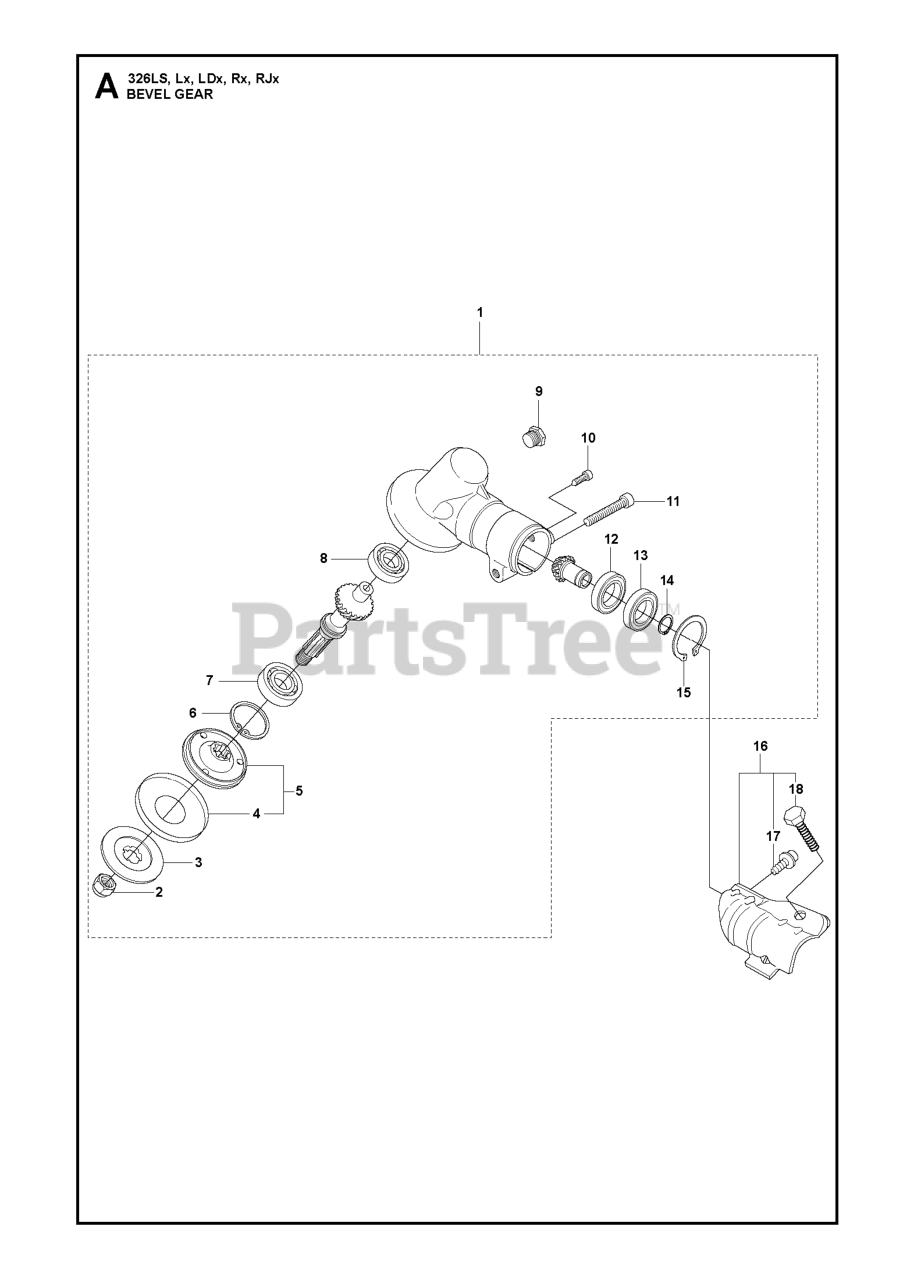

BEVEL GEAR Parts Diagram

  • Title

7

Husqvarna 503252401

BEARING
(Superseded to 525831801)

$22.99

$

In Stock, Qty 6

0

18

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 503201501

PLUG

$9.99

$

In Stock, only 1 left!

0

10

Husqvarna 503201412

SCREW

$3.99

$

In Stock, Qty 11

0

8

Husqvarna 738219800

BALL BEARING 8X22X7/608Z

$7.99

$

In Stock, only 2 left!

0

17

Husqvarna 503200712

SCREW

$7.49

$

In Stock, Qty 13

0

4

Husqvarna 537292601

WASHER
(Superseded to 537234901)

$40.99

$

Usually ships in 3-10 days

0

1

Husqvarna 537333802

GEARHEAD
(Superseded to 536503801)

$113.99

$

Usually ships in 3-10 days

0

12

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 2 left!

0

13

Husqvarna 738219902

BEARING

$29.99

$

In Stock, only 1 left!

0

15

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 3 left!

0

11

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

5

Husqvarna 537234901

DRIVE DISC

$40.99

$

Usually ships in 3-10 days

0

6

Husqvarna 735312810

RETAINING RING SGH 28

$7.49

$

In Stock, only 3 left!

0

14

Husqvarna 735311100

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

2

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 574306901

CLAMP
(Superseded to 574306904)

$24.99

$

In Stock, only 1 left!

0

3

Husqvarna 537285601

SUPPORT FLANGE

$

$

Not available
