326 P5 X - Husqvarna Pole Saw (2008-03) P5x Shaft Parts Diagram

Pole Saw

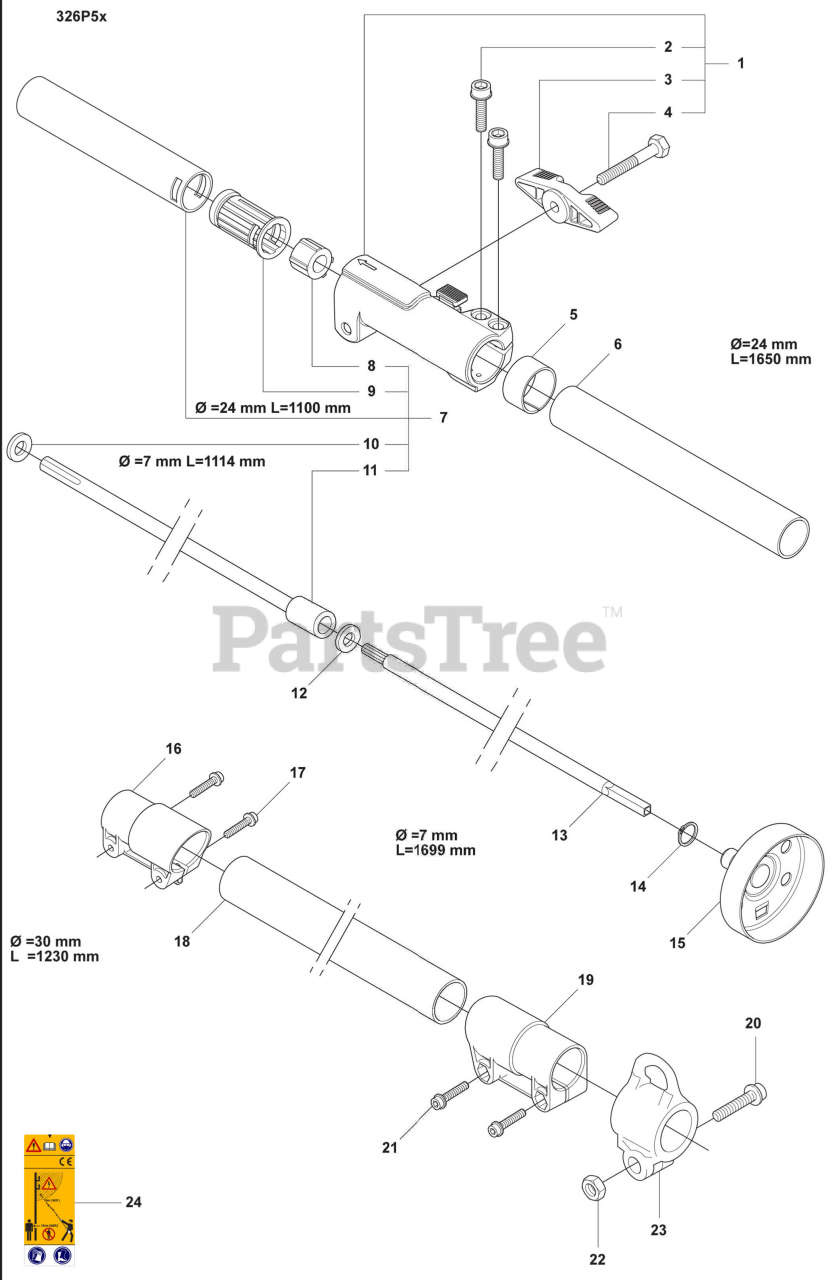

P5x Shaft Parts Diagram

  • Title
1

Husqvarna 544367501

Clamping Sleeve
(Superseded to 576282602)

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 729921801

Screw, M5 X 25 Pl Hsc Ih X
(Superseded to 503200725)

$4.99

$

In Stock, Qty 11

0

$7.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 537175001

Inner Tube Assembly
(Superseded to 587967502)

Note: 1 Ø=24 mm L=1650 mm

$68.99

$

In Stock, only 1 left!

0

7

Husqvarna 537174801

Tube
(Superseded to 587972104)

Note: 1 Ø=24 mm L=1100 mm

$136.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503785201

Bushing
(Superseded to 503785202)

$13.99

$

In Stock, only 2 left!

0

9

Husqvarna 544378701

Plug
(Superseded to 587414601)

$6.49

$

In Stock, only 2 left!

0

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 537180901

Drive Shaft
(Superseded to 587411702)

Note: 1 Ø=7 mm L=1114 mm

$74.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 537234806

Drive Shaft

Note: 1 Ø=7 mm L=1699 mm

$56.99

$

Usually ships in 3-10 days

0

14

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 537237501

Clutch Drum

$47.99

$

Usually ships in 3-10 days

0

16

Husqvarna 537272901

Locking Sleeve

$7.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, Qty 7

0

18

Husqvarna 537246801

Pipe
(Superseded to 537246802)

Note: 1 Ø=30 mm L=1230 mm

$56.99

$

In Stock, only 1 left!

0

19

Husqvarna 537272901

Locking Sleeve

$7.99

$

In Stock, only 2 left!

0

20

Husqvarna 503200716

Screw, M5 X 16 Ms Hsc Ih X
(Superseded to 525755101)

$4.99

$

In Stock, only 4 left!

0

$6.49

$

In Stock, Qty 7

0

22

Husqvarna 731231401

Hex Nut, M5 X .80 DIN

$2.49

$

In Stock, only 1 left!

0

23

Husqvarna 503941001

Harness Holder

$6.99

$

Usually ships in 3-10 days

0

$7.99

$

In Stock, only 2 left!

0
