326 P - Husqvarna Pole Saw (SN: 20080900001 & Above) SHAFT Parts Diagram

Pole Saw

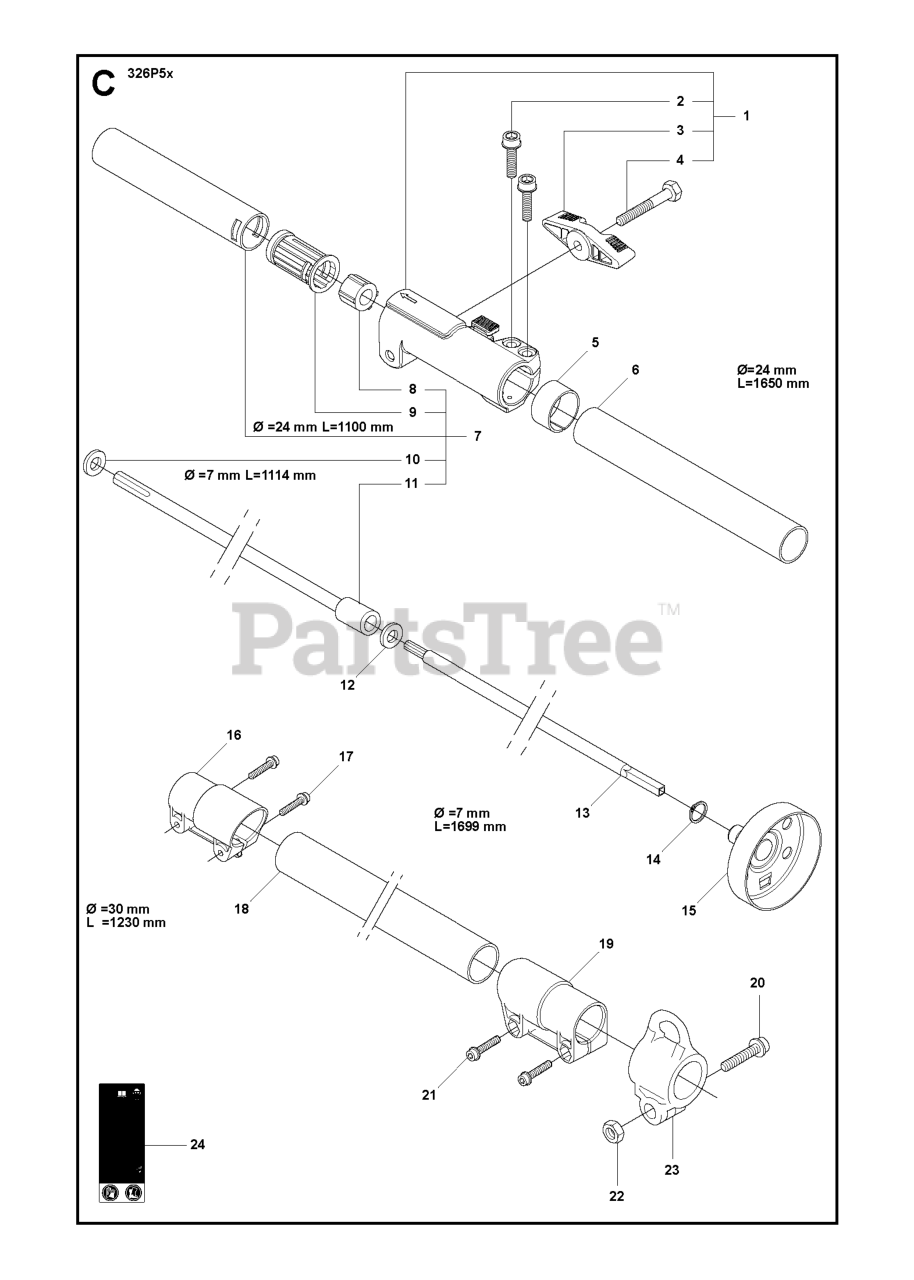

SHAFT Parts Diagram

  • Title

5

Husqvarna 537245101

SEALING

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 503217520

SCREW

$6.49

$

In Stock, Qty 7

0

16

Husqvarna 537272901

LOCKING SLEEVE

$7.99

$

In Stock, only 2 left!

0

22

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 537180901

SHAFT
(Superseded to 587411702)

Note: Ø=7 mm L=1114 mm

$74.99

$

In Stock, only 1 left!

0

12

Husqvarna 735580810

WASHER

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 735580810

WASHER

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 537083801

DECAL

$7.99

$

In Stock, only 2 left!

0

9

Husqvarna 544378701

PLUG
(Superseded to 587414601)

$6.49

$

In Stock, only 2 left!

0

19

Husqvarna 537272901

LOCKING SLEEVE

$7.99

$

In Stock, only 2 left!

0

18

Husqvarna 537246801

PIPE
(Superseded to 537246802)

Note: Ø=30 mm L=1230 mm

$56.99

$

In Stock, only 1 left!

0

20

Husqvarna 503200716

SCREW
(Superseded to 525755101)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 537174801

TUBE
(Superseded to 587972104)

Note: Ø=24 mm L=1100 mm

$136.99

$

Usually ships in 3-10 days

0

3

Husqvarna 502203801

HANDLE

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 537175001

TUBE
(Superseded to 587967502)

Note: Ø=24 mm L=1650 mm

$68.99

$

In Stock, only 1 left!

0

21

Husqvarna 503217520

SCREW

$6.49

$

In Stock, Qty 7

0

1

Husqvarna 544367501

CLAMPING SLEEVE
(Superseded to 576282602)

$37.99

$

Usually ships in 3-10 days

0

4

Husqvarna 725237951

SCREW

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 537237501

CLUTCH DRUM

$47.99

$

In Stock, only 1 left!

0

8

Husqvarna 503785201

BUSHING
(Superseded to 503785202)

$13.99

$

In Stock, only 2 left!

0

23

Husqvarna 503941001

HARNESS HOLDER

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 729921801

SCREW
(Superseded to 503200725)

$4.99

$

In Stock, Qty 11

0

13

Husqvarna 537234806

DRIVE SHAFT

Note: Ø=7 mm L=1699 mm

$56.99

$

Usually ships in 3-10 days

0

14

Husqvarna 735311200

RETAINING RING SGA 10

$4.99

$

In Stock, only 2 left!

0
