326 L - Husqvarna String Trimmer (SN: 20010900001 - 20020500000) BEVEL GEAR Parts Diagram

String Trimmer

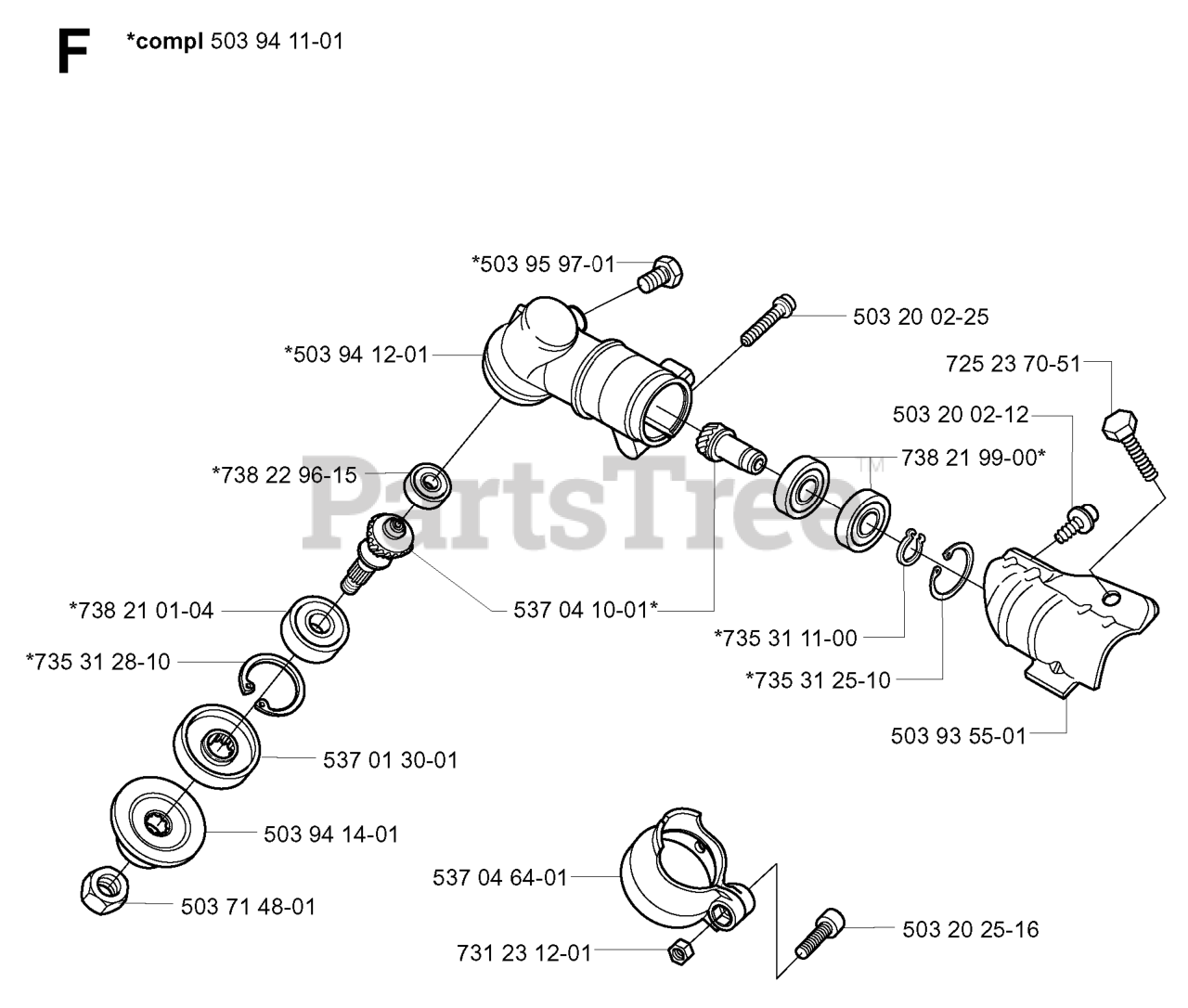

BEVEL GEAR Parts Diagram

  • Title
503 94 11-01

Husqvarna 503941101

GEARHEAD
(Superseded to 536503801)

$113.99

$

Usually ships in 3-10 days

0

731 23 12-01

Husqvarna 731231201

NUT M6M M4

$2.99

$

Usually ships in 3-10 days

0

503 94 14-01

Husqvarna 503941401

FLANGE
(Superseded to 537285601)

$

$

Not available

738 21 01-04

Husqvarna 738210104

BALL BEARING

$24.99

$

Usually ships in 3-10 days

0

537 01 30-01

$26.99

$

In Stock, only 2 left!

0

738 22 96-15

Husqvarna 738229615

Ball Bearing 626 6x19x6

$

$

Not available

503 71 48-01

Husqvarna 503714801

NUT
(Superseded to 503856301)

$7.49

$

In Stock, only 1 left!

0

725 23 70-51

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

503 20 02-25

$4.99

$

In Stock, Qty 7

0

537 04 10-01

Husqvarna 537041001

GEAR SET
(Superseded to 536503801)

$113.99

$

Usually ships in 3-10 days

0

738 21 99-00

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 2 left!

0

735 31 25-10

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 3 left!

0

503 93 55-01

Husqvarna 503935501

RP BRACKET TRIMMER GUARD
(Superseded to 574306904)

$24.99

$

In Stock, only 1 left!

0

735 31 28-10

Husqvarna 735312810

RETAINING RING SGH 28

$7.49

$

In Stock, only 3 left!

0

537 04 64-01

Husqvarna 537046401

GRASS PROTECTOR

$6.99

$

In Stock, only 2 left!

0

735 31 11-00

Husqvarna 735311100

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

503 95 97-01

$4.99

$

Usually ships in 3-10 days

0

503 94 12-01

Husqvarna 503941201

GEAR HOUSING
(Superseded to 536503801)

$113.99

$

Usually ships in 3-10 days

0

503 20 25-16

$3.49

$

In Stock, only 2 left!

0

503 20 02-12

Husqvarna 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 12

0
