326 HD 60 X - Husqvarna Hedge Trimmer (SN: 20062700001 - 20082200000) GEAR HOUSING Parts Diagram

Hedge Trimmer

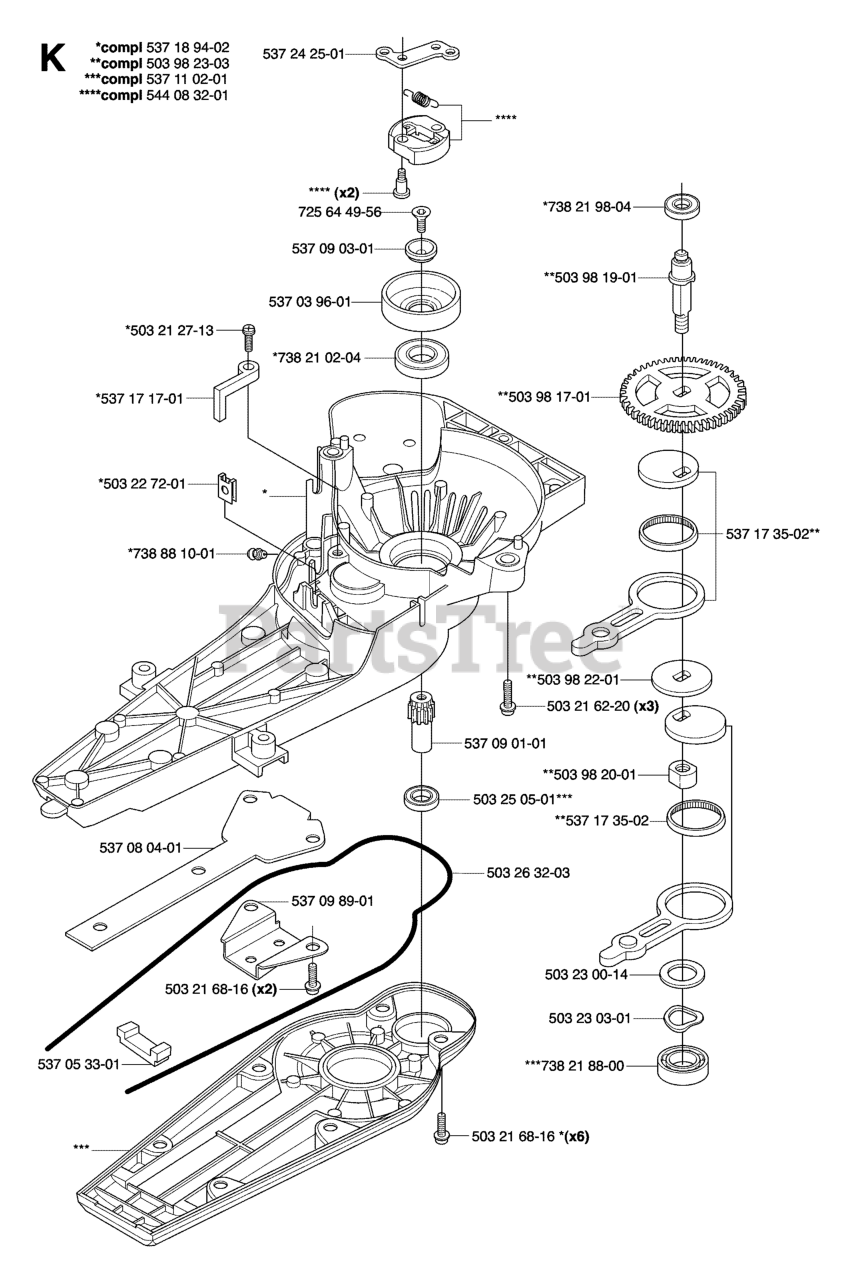

GEAR HOUSING Parts Diagram

  • Title

503 21 68-16

Husqvarna 503216816

SCREW

$4.99

$

In Stock, only 2 left!

0

537 24 25-01

Husqvarna 537242501

CLUTCH YOKE

$

$

Not available

537 17 35-02

Husqvarna 537173502

CONNECTING ROD

$62.99

$

In Stock, only 3 left!

0

544 08 32-01

Husqvarna 544083201

CLUTCH CPL

$51.99

$

Usually ships in 3-10 days

0

503 98 23-03

Husqvarna 503982303

SHAFT

$182.99

$

Usually ships in 3-10 days

0

537 05 33-01

Husqvarna 537053301

SEALING

$6.99

$

Usually ships in 3-10 days

0

725 64 49-56

Husqvarna 725644956

SCREW

$

$

Not available

503 98 19-01

Husqvarna 503981901

SHAFT

$13.99

$

Usually ships in 3-10 days

0

503 22 72-01

Husqvarna 503227201

NUT

$6.49

$

In Stock, only 4 left!

0

537 11 02-01

Husqvarna 537110201

COVER

$102.99

$

Usually ships in 3-10 days

0

537 09 03-01

Husqvarna 537090301

WASHER

$

$

Not available

738 21 98-04

Husqvarna 738219804

BALL BEARING

$10.99

$

In Stock, only 3 left!

0

503 98 20-01

Husqvarna 503982001

NUT

$5.99

$

Usually ships in 3-10 days

0

537 09 89-01

Husqvarna 537098901

PLATE

$9.49

$

Usually ships in 3-10 days

0

537 09 01-01

Husqvarna 537090101

SHAFT

$

$

Not available

537 08 04-01

Husqvarna 537080401

PLATE

$9.49

$

Usually ships in 3-10 days

0

503 21 62-20

Husqvarna 503216220

SCREW W/ LOCKING FLUID

$4.99

$

In Stock, Qty 20+

0

537 17 17-01

Husqvarna 537171701

HOLDER

$

$

Not available

738 21 88-00

Husqvarna 738218800

BEARING

$13.99

$

Usually ships in 3-10 days

0

503 21 27-13

Husqvarna 503212713

SCREW

$3.49

$

Usually ships in 3-10 days

0

738 88 10-01

Husqvarna 738881001

GREASE NIPPLE

$7.99

$

Usually ships in 3-10 days

0

503 26 32-03

Husqvarna 503263203

GASKET

$5.99

$

Usually ships in 3-10 days

0

503 25 05-01

Husqvarna 503250501

BEARING

$14.99

$

In Stock, only 1 left!

0

738 21 02-04

Husqvarna 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

503 23 00-14

Husqvarna 503230014

WASHER 15X24
(Superseded to 503230058)

$4.99

$

In Stock, Qty 9

0

503 98 17-01

Husqvarna 503981701

GEAR

$43.99

$

Usually ships in 3-10 days

0

503 21 68-16

Husqvarna 503216816

SCREW

$4.99

$

In Stock, only 2 left!

0

503 23 03-01

Husqvarna 503230301

WASHER

$7.99

$

Usually ships in 3-10 days

0

537 03 96-01

Husqvarna 537039601

CLUTCH DRUM

$22.99

$

Usually ships in 3-10 days

0

537 18 94-02

Husqvarna 537189402

GEARBOX
(Superseded to 537189404)

$148.99

$

Usually ships in 3-10 days

0

503 98 22-01

Husqvarna 503982201

WASHER

$6.99

$

Usually ships in 3-10 days

0
