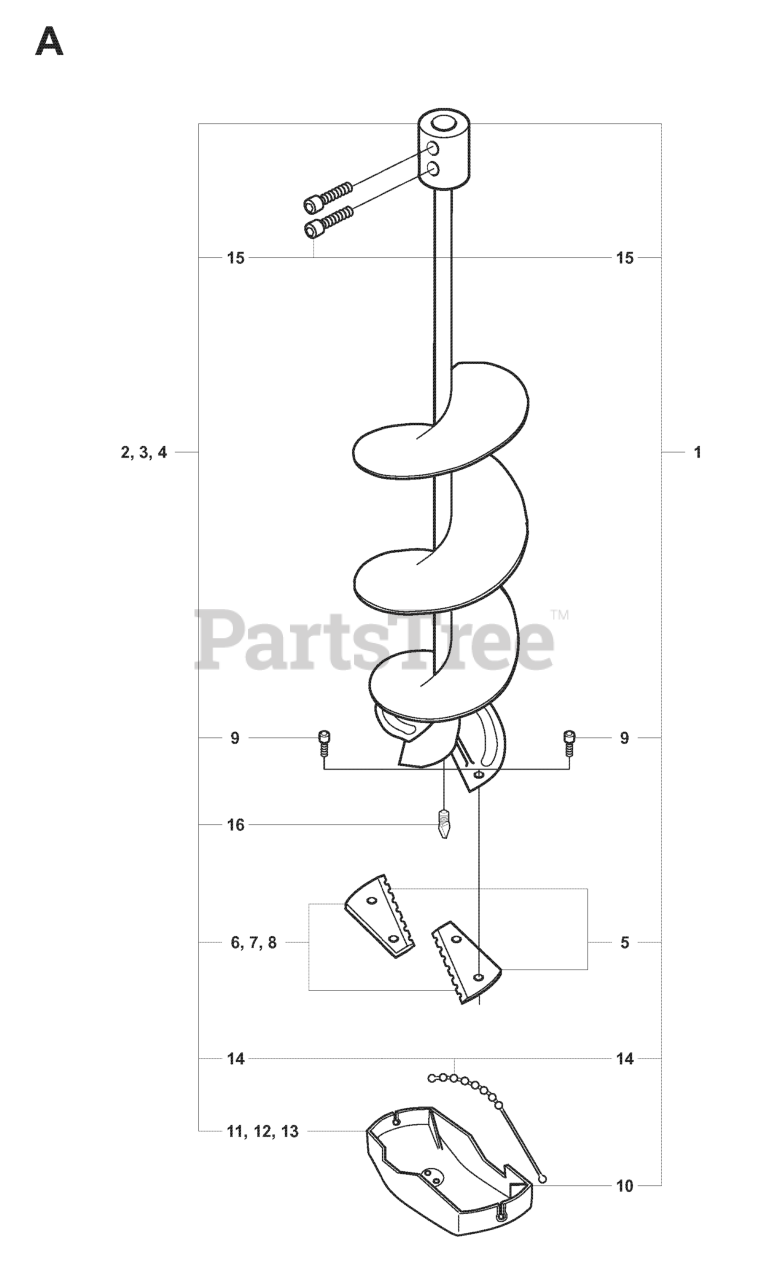

326 AI - Husqvarna Ice Auger DRILL Parts Diagram

Ice Auger

DRILL Parts Diagram

  • Title

2

Husqvarna 531007502

6" ICE AUGER BIT

Note: 150MM

$

$

Not available

9

Husqvarna 537038701

SCREW

$

$

Not available

13

Husqvarna 537035701

PROTECTOR 250MM

Note: 250MM

$

$

Not available

15

Husqvarna 725545501

SCREW

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 537035501

PROTECTOR 150MM

Note: 150MM

$

$

Not available

6

Husqvarna 531007506

6" ICE KNIFE

Note: 150MM

$

$

Not available

14

Husqvarna 537035801

STRAP

$12.68

$

Usually ships in 3-10 days

0

8

Husqvarna 531007508

10" ICE KNIFE

Note: 250MM

$

$

Not available

1

Husqvarna 531007501

Note: 130mm

$

$

Currently unavailable

12

Husqvarna 537035601

PROTECTOR 200MM

Note: 200MM

$

$

Not available

5

Husqvarna 531007505

BLADE 130MM

Note: 130mm

$

$

Not available

4

Husqvarna 531007504

10" ICE AUGER BIT

Note: 250MM

$

$

Not available

3

Husqvarna 531007503

8" ICE AUGER BIT

Note: 200MM

$

$

Not available

16

Husqvarna 531006983

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 537035401

PROTECTOR 130MM

Note: 130mm

$

$

Not available

7

Husqvarna 531007507

8" ICE KNIFE

Note: 200MM

$

$

Not available
