3256 A59 - Electrolux/AYP Walk-Behind Mower (1995) B&S ENGINE Parts Diagram

Walk-Behind Mower

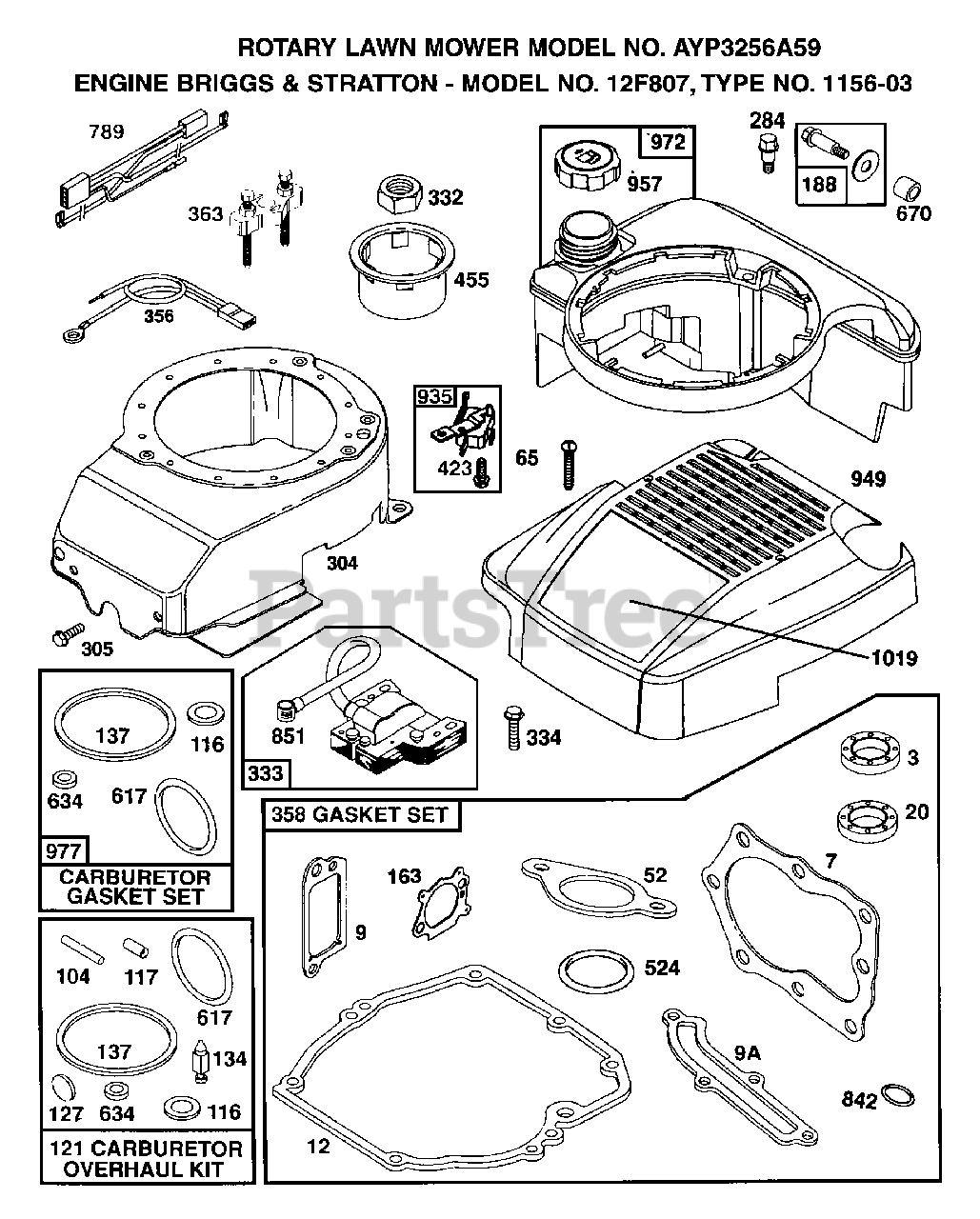

B&S ENGINE Parts Diagram

  • Title

1

Briggs & Stratton 493260

CYLINDER ASSY
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 293708

BUSHING, CYLINDER
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 214349

HEAD, CYLINDER
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

GASKET, CYLINDER HEAD
(Superseded to 692249)

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495786

BREATHER, VALVE CHAMBER
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

GASKET, VALVE COVER
(Superseded to 699833)

$5.49

$

Usually ships in 2-12 days

0

9A

Briggs & Stratton 272238

GASKET, BAFFLE PLATE
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94650

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 231685

TUBE, BREATHER
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 272198

GASKET, CRANKCASE
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 94547

SCREW, CYLINDER HEAD
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

15

Briggs & Stratton 94720

PLUG, OIL DRAIN
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 493362

CRANKSHAFT
(Superseded to 797018)

$179.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 493279

SUMP, ENGINE

$120.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 399781

SEAL, OIL
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

SCREW, HEX HEAD
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94612

SCREW, HEX HEAD
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

22A

Briggs & Stratton 94268

SCREW, HEX HEAD
(Superseded to 691127)

$4.49

$

In Stock, Qty 13

0

23

Briggs & Stratton 492175

FLYWHEEL
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 493262

PISTON ASSY STANDARD SIZE

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493385

PISTON ASSY

$62.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493386

PISTON ASSY

$

$

Not available

Briggs & Stratton 493387

PISTON ASSY

$62.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493261

RING SET, PISTON, STANDARD SIZE

$

$

Not available

Briggs & Stratton 493388

RING SET, PISTON, .010" OVERSIZE

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493389

RING SET, PISTON, .020" OVERSIZE

$

$

Not available

Briggs & Stratton 493390

RING SET, PISTON, .030" OVERSIZE

$29.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

LOCK, PISTON PIN
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 2 left!

0

Briggs & Stratton 298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490566

ROD, CONNECTING

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 490743

ROD, CONNECTING, .020" UNDERSIZE

$13.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

SCREW
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

VALVE, EXHAUST
(Superseded to 590394)

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

VALVE, INTAKE
(Superseded to 590393)

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262224

SPRING, VALVE
(Superseded to 691270)

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 262204

TAPPET, VALVE
(Superseded to 690548)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 492830

GEAR, CAM
(Superseded to 691449)

$73.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 493737

SLINGER, OIL
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 272199

GASKET, INTAKE ELBOW
(Superseded to 272199S)

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 94526

SCREW, HEX HEAD
(Superseded to 691650)

$2.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 492831

HOUSING REWIND STARTER

$74.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 493824

PULLEY, REWIND STARTER

$

$

Not available

57

Briggs & Stratton 262594

SPRING, REWIND STARTER
(Superseded to 491889)

$15.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 280399

ROPE, REWIND STARTER (CUT TO 88-5/8)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 7

0

59

Briggs & Stratton 396892

INSERT, HANDLE

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

HANDLE, REWIND STARTER

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 94696

SCREW
(Superseded to 690700)

$3.99

$

In Stock, only 2 left!

0

69

Briggs & Stratton 280973

WASHER

$5.49

$

Usually ships in 2-12 days

0

69A

Briggs & Stratton 224322

WASHER

$5.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

SCREW, HEX HEAD
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

81

Briggs & Stratton 223664

LOCK, MUFFLER SCREW
(Superseded to 691740)

$5.49

$

In Stock, Qty 5

0

95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 231371

PIN, FLOAT HINGE
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

116

REFER TO IMAGE

$

$

Not available

121

Briggs & Stratton 493762

CARB OVERHAUL KIT
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

124

Briggs & Stratton 94525

SCREW, CARBURETOR MOUNTING
(Superseded to 691688)

$4.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 497314

CARBURETOR ASSEMBLY
(Superseded to 799868)

$63.99

$

Usually ships in 2-12 days

0

127

REFER TO IMAGE

$

$

Not available

130

Briggs & Stratton 224908

VALVE, THROTTLE
(Superseded to 691203)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

SHAFT, THROTTLE

$16.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 398187

FLOAT, CARBURETOR

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

VALVE, INLET

$6.49

$

In Stock, Qty 20+

0

137

REFER TO IMAGE

$

$

Not available

163

Briggs & Stratton 272653

GASKET AIR CLEANER
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 492791

HOSE, FUEL
(Superseded to 791873)

$15.99

$

In Stock, Qty 7

0

188

Briggs & Stratton 398540

SCREW, HEX HEAD
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

188A

Briggs & Stratton 94644

SCREW, HEX HEAD
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

201

Briggs & Stratton 262579

LINK, GOVERNOR
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263044

SPRING, GOVERNOR
(Superseded to 690319)

$8.49

$

In Stock, only 1 left!

0

227

Briggs & Stratton 492349

LEVER, GOVERNOR
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 67072

WASHER, THRUST
(Superseded to 690272)

$3.99

$

In Stock, only 2 left!

0

258

Briggs & Stratton 94512

SCREW, HEX HEAD
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94511

SCREW, HEX HEAD
(Superseded to 690940)

$3.99

$

In Stock, Qty 5

0

300

Briggs & Stratton 490547

MUFFLER EXHAUST
(Superseded to 692038)

$29.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 493293

HOUSING, BLOWER
(Superseded to 795071)

$102.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94729

SCREW, SEMS, HEX HEAD
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

305A

Briggs & Stratton 94510

STUD, STATOR MOUNTING
(Superseded to 691094)

$10.99

$

In Stock, only 2 left!

0

306

Briggs & Stratton 224324

SHIELD, CYLINDER
(Superseded to 690450)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

SCREW HEX HD
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 494233

STARTER, ELECTRIC
(Superseded to 799045)

$198.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 94051

SCREW, HEX, WASHER HEAD
(Superseded to 692327)

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

ARMATURE, MAGNETO
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

PLUG SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

WIRE, GROUND

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 496117

GASKET SET

$40.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

PULLEY, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

387

Briggs & Stratton 496115

PRIMER, CARBURETOR
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

423

Briggs & Stratton 93758

SCREW, SEMS
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 224250

CUP, STARTER

$9.49

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 224321

RETAINER, REWIND STARTER

$8.99

$

In Stock, Qty 5

0

459

Briggs & Stratton 492833

PAWL, STARTER

$4.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 262626

PIN, STARTER

$4.49

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 492841

STATOR ASSEMBLY
(Superseded to 691991)

$118.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 494147

DRIVE KIT, STARTER

$33.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 394815

CLUTCH ASSEMBLY, STARTER
(Superseded to 795100)

$79.99

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 262556

SPRING PAWL
(Superseded to 492833)

$4.99

$

Usually ships in 2-12 days

0

515A

Briggs & Stratton 262625

SPRING, TORSION

$6.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 495264

CAP W/DIPSTICK, OIL FILTER
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 280393

SEAL, FILLER TUBE
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 495265

TUBE, OIL FILLER

$

$

Not available

529

Briggs & Stratton 281299

GROMMET, BREATHER
(Superseded to 691923)

$9.49

$

In Stock, only 1 left!

0

544

Briggs & Stratton 492921

ARMATURE ASSEMBLY
(Superseded to 690786)

$32.99

$

Usually ships in 2-12 days

0

548

Briggs & Stratton 492919

WASHER SET, STARTER

$2.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

BOLT, GOVERNOR LEVER

$

$

Not available

572

Briggs & Stratton 224328

BAFFLE, CYLINDER
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 93807

CLAMP HOSE
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

606

Briggs & Stratton 224815

STRAP, BRKT
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

608

Briggs & Stratton 493295

STARTER ASSY REWIND
(Superseded to 497598)

$75.99

$

In Stock, only 2 left!

0

613

Briggs & Stratton 94231

SCREW, HEX HEAD
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

615

Briggs & Stratton 94474

FASTENER
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 262578

CRANK, GOVERNOR
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 497203

BRACKET, CARBURETOR
(Superseded to 790143)

$44.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

625

Briggs & Stratton 492717

TUBE FUEL INTAKE
(Superseded to 794305)

$

$

Not available

634

REFER TO IMAGE

$

$

Not available

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

670

Briggs & Stratton 280512

SPACER, FUEL TANK
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

670A

Briggs & Stratton 493823

SPACER, BRACKET

$6.49

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262598

GEAR, TIMING
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0

782

Briggs & Stratton 281127

PINION, STARTER
(Superseded to 795099)

$21.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 261606

GEAR, PINION
(Superseded to 795096)

$13.99

$

Usually ships in 2-12 days

0

784

Briggs & Stratton 224262

COVER, GEAR

$

$

Not available

785

Briggs & Stratton 272201

GASKET, COVER
(Superseded to 795097)

$5.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 493380

HARNESS ASSEMBLY, WIRE
(Superseded to 691372)

$27.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 492335

BRACKET ASSEMBLY, STARTER
(Superseded to 690782)

$85.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 492922

HEAD ASSEMBLY, STARTER
(Superseded to 695975)

$53.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 492920

SHELL AND MAGNET ASSEMBLY, STARTER
(Superseded to 695975)

$53.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 280966

SEAL, O-RING
(Superseded to 692296)

$4.99

$

In Stock, Qty 5

0

847

Briggs & Stratton 495263

TUBE ASSEMBLY, OIL
(Superseded to 692047)

$

$

Not available

851

Briggs & Stratton 221798

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 213512

SEAT, INTAKE VALVE
(Superseded to 691155)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 213513

SEAT, EXHAUST VALVE
(Superseded to 690380)

$

$

Not available

871

Briggs & Stratton 262001

GUIDE, EXHAUST VALVE

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 63709

GUIDE, INTAKE VALVE

$14.99

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 262640

SPRING, BRAKE
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

BRAKE ASSEMBLY
(Superseded to 796387)

$

$

Not available

935

Briggs & Stratton 398758

BRACKET AND SWITCH ASSEMBLY
(Superseded to 499421)

$31.99

$

Usually ships in 2-12 days

0

937

Briggs & Stratton 281125

SPLINE, STARTER
(Superseded to 795098)

$11.99

$

Usually ships in 2-12 days

0

938

Briggs & Stratton 93941

RETAINER, LOCK

$6.99

$

In Stock, only 1 left!

0

949

Briggs & Stratton 281191

GUARD, FINGER
(Superseded to 497233)

$60.99

$

In Stock, only 1 left!

0

955

Briggs & Stratton 497315

JET, MAIN (HIGH ALTITUDE)

$13.99

$

Usually ships in 2-12 days

0

955A

Briggs & Stratton 496495

SCREW, BOWL MOUNTING

$

$

Not available

957

Briggs & Stratton 397974

CAP, FUEL TANK
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

966

Briggs & Stratton 496116

BASE AIR CLEANER
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

967

Briggs & Stratton 491588

SUB= 3364
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 281340

COVER AIR CLEANER
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

969

Briggs & Stratton 94120

SCREW, HEX HEAD
(Superseded to 690670)

$5.99

$

In Stock, only 4 left!

0

971

Briggs & Stratton 94121

SCREW, HEX HEAD
(Superseded to 692523)

$7.49

$

In Stock, only 2 left!

0

971A

Briggs & Stratton 94749

SCREW, HEX HEAD
(Superseded to 691669)

$3.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 495224

TANK ASSY FUEL
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 493640

BOWL, FLOAT
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 490937

GASKET SET, CARBURETOR
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1016

Briggs & Stratton 224278

COVER, REWIND STARTER

$3.49

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 495354

LABEL KIT
(Superseded to 498606)

$27.99

$

Usually ships in 2-12 days

0
