325 R - Husqvarna String Trimmer SHAFT & HANDLE Parts Diagram

String Trimmer

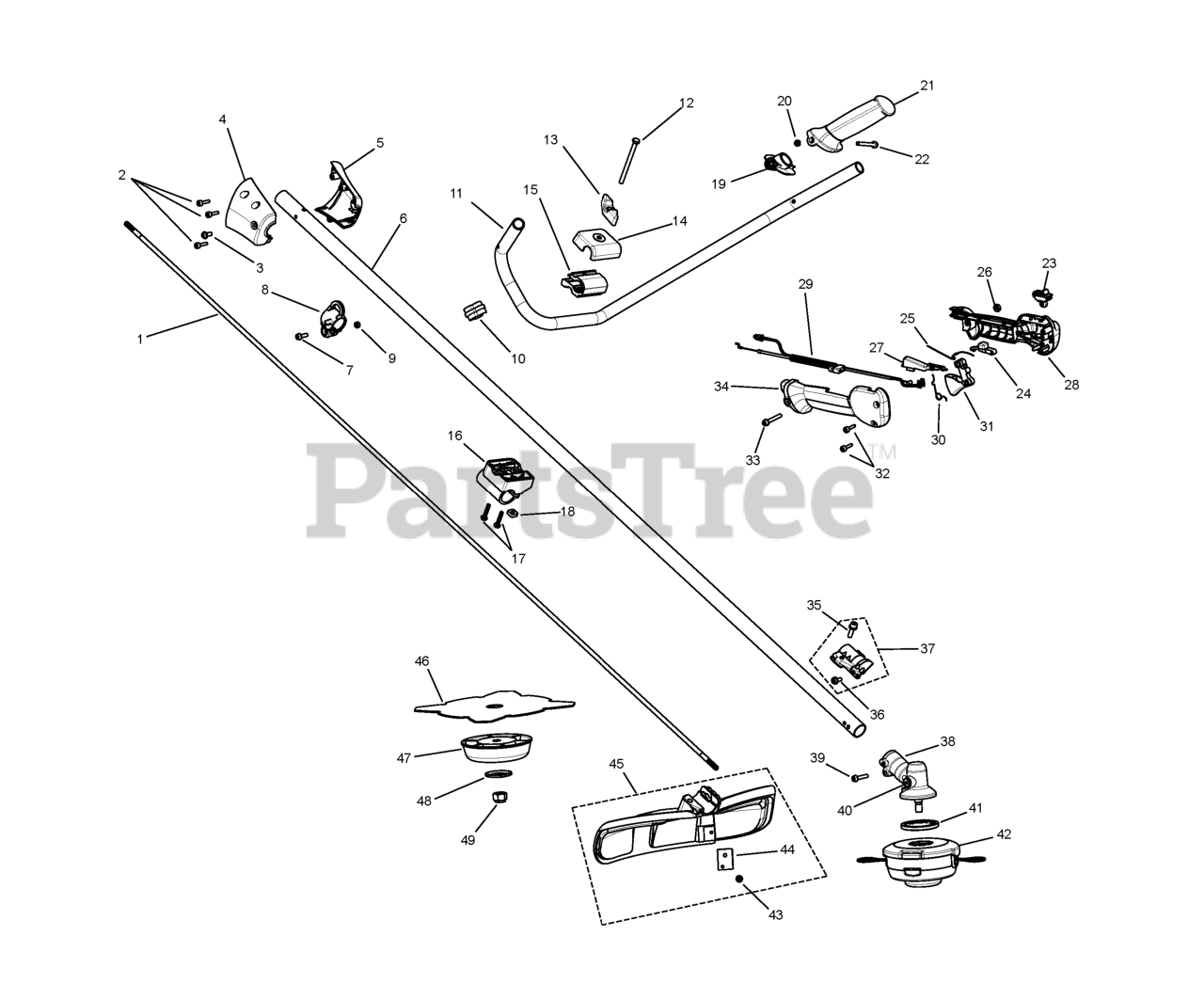

SHAFT & HANDLE Parts Diagram

  • Title
44

Husqvarna 503798801

LINE CUTTER
(Superseded to 503798802)

Note: BLADE

$6.99

$

In Stock, only 2 left!

0

43

Husqvarna 576275601

SCREW ITXSCFT PW4.8X16 T27 CH

Note: SCREW ITXSCFT

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 574444001

SCREW

Note: SCREW MT4X18 T27 10.9

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 574810705

CONE NOSE BULLHORN L/H HUSQ OR

Note: NOSE CONE B/H LH HVA 2

$7.99

$

Usually ships in 3-10 days

0

32

Husqvarna 574444001

SCREW

Note: SCREW ITXSCT

$3.99

$

In Stock, only 2 left!

0

6

Husqvarna 596024103

KIT SVC 325R DRIVESHAFT EU

Note: TUBE ASSY KIT (EUROPE)

$133.99

$

Usually ships in 3-10 days

0

35

Husqvarna 523019001

BOLT

Note: SCREW

$7.49

$

Usually ships in 3-10 days

0

48

Husqvarna 537285601

SUPPORT FLANGE

Note: FLANGE SUPPORT

$

$

Not available

28

Husqvarna 537160209

HANDLE HALF LEFT

Note: HANDLE HALF

$20.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503722901

BRACKET

Note: COVER

$7.99

$

Usually ships in 3-10 days

0

20

Husqvarna 731231401

NUT

Note: HEX NUT

$2.49

$

In Stock, only 2 left!

0

3

Husqvarna 584294001

SCREW

Note: SCREW

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 537160302

HANDLE

Note: HANDLE HALF

$20.99

$

Usually ships in 3-10 days

0

6

Husqvarna 596024104

KIT SVC 325R DRIVESHAFT RUS/LA

Note: TUBE ASSY KIT (RUSSIA & LATIN AMERICA)

$66.99

$

Usually ships in 3-10 days

0

41

Husqvarna 537234901

DRIVE DISC

Note: DRIVER DISC

$40.99

$

In Stock, only 1 left!

0

27

Husqvarna 506495101

THROTTLE LOCKOUT

Note: THROTTLE LOCKOUT

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 502211201

GROMMET

Note: THROTTLE CABLE CLIP

$7.49

$

In Stock, only 2 left!

0

13

Husqvarna 502203801

HANDLE

Note: KNOB

$7.99

$

In Stock, only 1 left!

0

22

Husqvarna 525755204

SCREW ITXSCFM M5X45 T27 12.9

Note: SCREW

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 503200782

SCREW IHSCFM

Note: SCREW IHSCFM

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 574810305

CONE

Note: NOSE CONE B/H RH HVA 2

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 503221013

NUT

Note: HEXAGON NUT

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 502199503

HANDLE

Note: HANDLE BAR

$48.99

$

In Stock, only 1 left!

0

16

Husqvarna 503882301

HOLDER

Note: BRACKET

$20.99

$

In Stock, only 3 left!

0

40

Husqvarna 503201501

PLUG

Note: GREASE PLUG

$9.99

$

In Stock, only 1 left!

0

31

Husqvarna 506495001

THROTTLE CONTROL

Note: THROTTLE CONTROL

$5.99

$

Usually ships in 3-10 days

0

45

Husqvarna 588117901

COMBINATION GUARD

Note: GUARD ASSY TRIMMER

$22.99

$

In Stock, only 3 left!

0

18

Husqvarna 502197101

NUT

Note: SQUARE NUT

$8.99

$

In Stock, only 1 left!

0

47

Husqvarna 503890101

SUPPORTING CUP

Note: CUP SUPPORT

$26.99

$

In Stock, only 1 left!

0

15

Husqvarna 544020903

HOLDER

Note: HANDLEBAR BRACKET

$12.99

$

In Stock, only 1 left!

0

30

Husqvarna 537174201

SPRING

Note: SPRING THROTTLE TRIG

$6.49

$

In Stock, Qty 7

0

8

Husqvarna 503941001

HARNESS HOLDER

Note: HOOK

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 731231401

NUT

Note: HEXAGON NUT

$2.49

$

In Stock, only 2 left!

0

17

Husqvarna 512848101

SCREW

Note: SCREW

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537172801

HANDLE

Note: HANDLE GRIP

$17.99

$

Usually ships in 3-10 days

0

36

Husqvarna 574710801

BOLT

Note: SCREW

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 525755101

SCREW

Note: SCREW ITXSCFM

$4.99

$

In Stock, Qty 6

0

38

Husqvarna 537333801

GEARHEAD

Note: GEAR HEAD

$87.99

$

In Stock, only 1 left!

0

42

Husqvarna 578446301

TRIMMER HEADS

Note: HEAD TRIMMER T35

$

$

Not available

25

Husqvarna 537174301

SPRING

Note: SPRING

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 525755104

SCREW

Note: SCREW ITXSCFM

$6.49

$

In Stock, only 2 left!

0

24

Husqvarna 537160703

STARTER THROTTLE LOCK

Note: STARTER THROTTLE LOC

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 725238651

SCREW

Note: SCREW M6 X 80 10.9

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 537419001

STOP BUTTON

Note: SWITCH

$9.49

$

In Stock, only 2 left!

0

49

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

Note: LOCKNUT BLADE

$7.49

$

In Stock, only 1 left!

0

29

Husqvarna 580294301

CABLE ASSY

Note: CABLE ASSY

$26.99

$

In Stock, only 1 left!

0

37

Husqvarna 581027501

ASSY CLAMP 523L

Note: CLAMP ASSY

$10.99

$

Usually ships in 3-10 days

0

46

Husqvarna 504001303

Blade - Grass
(Superseded to 596278001)

Note: "BLADE GRASS 255-4T-1"""

$36.99

$

Usually ships in 3-10 days

0

1

Husqvarna 581110501

DRIVESHAFT 525L
(Superseded to 581815101)

Note: DRIVESHAFT

$22.99

$

In Stock, Qty 9

0

19

Husqvarna 537172901

BRACKET

Note: COVER

$5.99

$

Usually ships in 3-10 days

0
