325 LXT - Husqvarna String Trimmer (2002-01) BEVEL GEAR & SHAFT Parts Diagram

String Trimmer

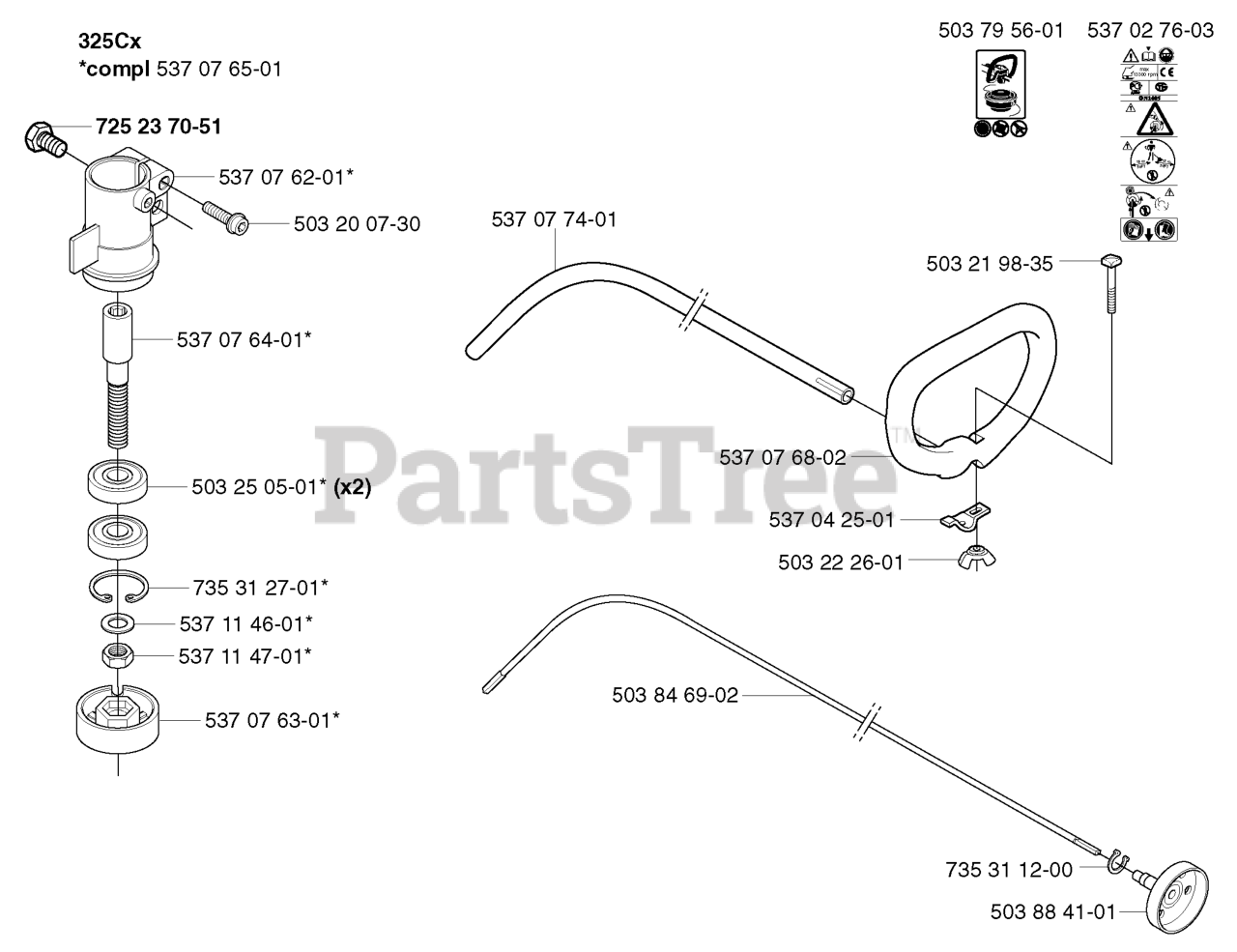

BEVEL GEAR & SHAFT Parts Diagram

  • Title

503 20 07-30

Husqvarna 503200730

SCREW
(Superseded to 503200230)

$6.49

$

In Stock, only 1 left!

0

537 02 76-03

Husqvarna 537027603

DECAL - WARNING
(Superseded to 537294802)

$

$

Not available

537 11 46-01

Husqvarna 537114601

WASHER

$

$

Not available

537 11 47-01

Husqvarna 537114701

NUT

$

$

Not available

537 07 65-01

Husqvarna 537076501

BEARING HOUSING

$

$

Not available

503 22 26-01

Husqvarna 503222601

WING NUT

$7.49

$

In Stock, only 2 left!

0

503 21 98-35

Husqvarna 503219835

SCREW

$6.49

$

In Stock, only 2 left!

0

537 07 62-01

Husqvarna 537076201

BEARING HOUSING
(Superseded to 537076501)

$

$

Not available

735 31 12-00

Husqvarna 735311200

RETAINING RING SGA 10

$4.99

$

In Stock, only 2 left!

0

735 31 27-01

Husqvarna 735312701

Lock Ring

$

$

Not available

503 84 69-02

Husqvarna 503846902

SHAFT
(Superseded to 537351501)

$113.99

$

In Stock, only 1 left!

0

537 07 74-01

Husqvarna 537077401

TUBE

$103.99

$

Usually ships in 3-10 days

0

537 07 68-02

Husqvarna 537076802

HANDLE, LOOP
(Superseded to 537076801)

$14.99

$

Usually ships in 3-10 days

0

503 25 05-01

Husqvarna 503250501

BEARING

$14.99

$

In Stock, only 1 left!

0

503 79 56-01

Husqvarna 503795601

DECAL WARNING "NO BLADES"

$4.99

$

Usually ships in 3-10 days

0

537 07 63-01

Husqvarna 537076301

CARRIER

$28.99

$

Usually ships in 3-10 days

0

725 23 70-51

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

503 88 41-01

Husqvarna 503884101

CLUTCH DRUM
(Superseded to 537237501)

$47.99

$

In Stock, only 1 left!

0

537 04 25-01

Husqvarna 537042501

HOLDER
(Superseded to 530038599)

$2.49

$

In Stock, only 2 left!

0

537 07 64-01

Husqvarna 537076401

SHAFT

$14.99

$

Usually ships in 3-10 days

0
