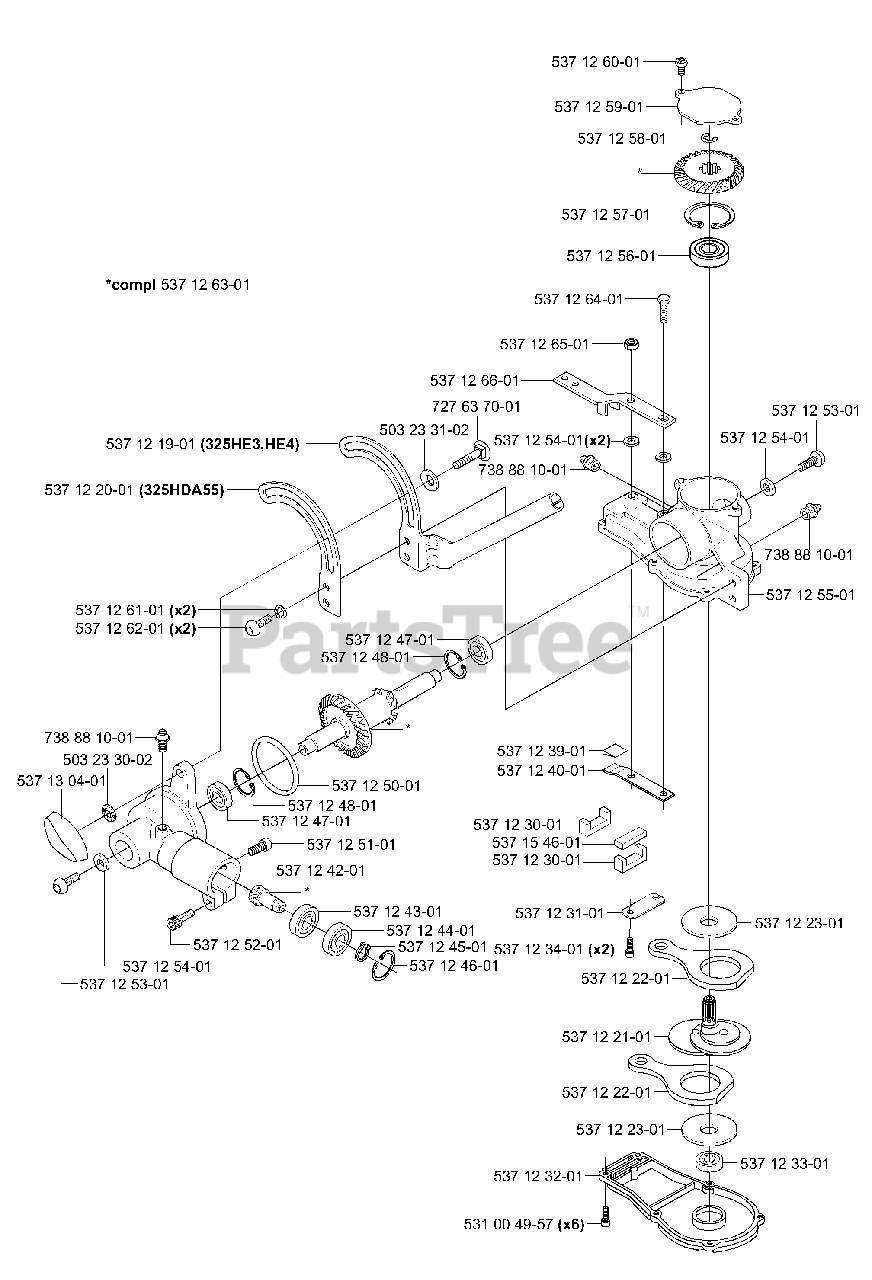

325 HE 4 - Husqvarna Hedge Trimmer (2001-01) Gear Box Assy. Parts Diagram

Hedge Trimmer

Gear Box Assy. Parts Diagram

  • Title
537124801

Husqvarna 537124801

RETAINING RING

$

$

Not available

537123901

$

$

Not available

537124001

$

$

Not available

537125001

$

$

Not available

537124801

Husqvarna 537124801

RETAINING RING

$

$

Not available

537124701

$

$

Not available

537124701

$

$

Not available

537125101

$

$

Not available

537124201

Husqvarna 537124201

GEAR HOUSING
(Superseded to 537267501)

$113.99

$

Usually ships in 3-10 days

0

537124301

Husqvarna 537124301

BEARING
(Superseded to 537124401)

$55.38

$

Usually ships in 3-10 days

0

537124401

$55.38

$

Usually ships in 3-10 days

0

537123001

$4.99

$

Usually ships in 3-10 days

0

537154601

$4.99

$

Usually ships in 3-10 days

0

537123001

$4.99

$

Usually ships in 3-10 days

0

537123101

$5.99

$

Usually ships in 3-10 days

0

537124501

Husqvarna 537124501

RETAINING RING

$

$

Not available

537124601

Husqvarna 537124601

RETAINING RING

$

$

Not available

537123401

$

$

Not available

537123201

$74.99

$

Usually ships in 3-10 days

0

531004957

$4.99

$

Usually ships in 3-10 days

0

537123301

$20.99

$

Usually ships in 3-10 days

0

537122201

Husqvarna 537122201

CONNECTING ROD

$20.99

$

Usually ships in 3-10 days

0

537122101

$

$

Not available

537122201

Husqvarna 537122201

CONNECTING ROD

$20.99

$

Usually ships in 3-10 days

0

537122301

$

$

Not available

537122301

$

$

Not available

537125301

$

$

Not available

537125401

$4.99

$

Usually ships in 3-10 days

0

738881001

Husqvarna 738881001

GREASE NIPPLE

$7.99

$

Usually ships in 3-10 days

0

537125501

Husqvarna 537125501

GEAR HOUSING

$

$

Not available

537126001

$

$

Not available

537125901

$7.99

$

In Stock, only 1 left!

0

537125801

Husqvarna 537125801

RETAINING RING

$

$

Not available

537125701

Husqvarna 537125701

RETAINING RING

$

$

Not available

537125601

$

$

Not available

537126401

Husqvarna 537126401

RP SCREW
(Superseded to 725536855)

$6.49

$

In Stock, Qty 20+

0

537126501

$

$

Not available

537126601

$43.99

$

Usually ships in 3-10 days

0

727637001

Husqvarna 727637001

REPL BY 515 71 16-20
(Superseded to 515711620)

$

$

Not available

537125401

$4.99

$

Usually ships in 3-10 days

0

738881001

Husqvarna 738881001

GREASE NIPPLE

$7.99

$

Usually ships in 3-10 days

0

503233102

$

$

Not available

537121901

Husqvarna 537121901

HANDLE

Note: Model 325HE3, HE4

$

$

Not available

537122001

Husqvarna 537122001

PLATE

Note: Model 325HDA55

$

$

Not available

537126101

$

$

Not available

537126201

$4.99

$

Usually ships in 3-10 days

0

738881001

Husqvarna 738881001

GREASE NIPPLE

$7.99

$

Usually ships in 3-10 days

0

503233002

Husqvarna 503233002

Spring Washer, 6.4 X 10

$2.23

$

Usually ships in 3-10 days

0

537130401

$

$

Not available

537125201

Husqvarna 537125201

SCREW
(Superseded to 725533355)

$6.49

$

In Stock, Qty 19

0

537125401

$4.99

$

Usually ships in 3-10 days

0

537125301

$

$

Not available

537126301

Husqvarna 537126301

GEAR
(Superseded to 544221101)

$

$

Not available
