325 HD 60 X - Husqvarna Hedge Trimmer (SN: 20022200001 - 20062300000) CYLINDER, PISTON & MUFFLER Parts Diagram

Hedge Trimmer

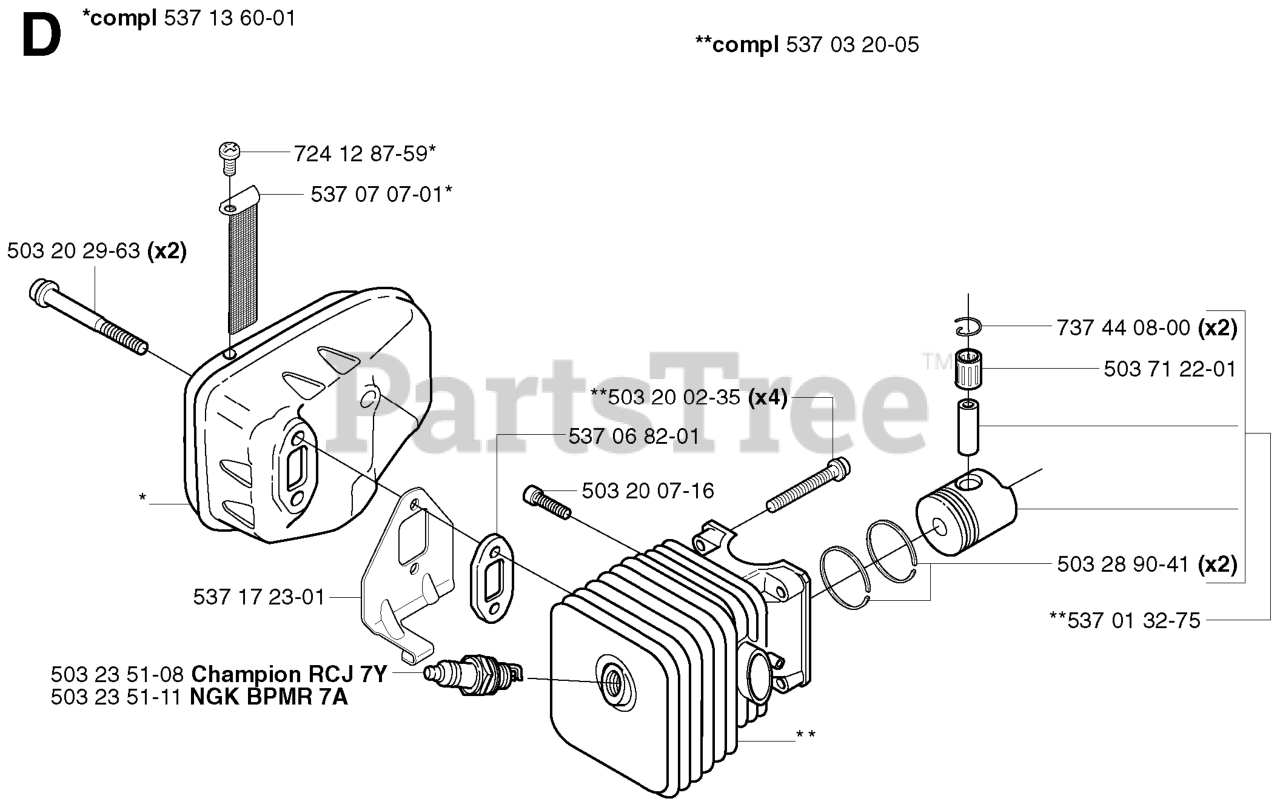

CYLINDER, PISTON & MUFFLER Parts Diagram

  • Title

537 06 82-01

Husqvarna 537068201

GASKET

$

$

Not available

503 28 90-41

Husqvarna 503289041

PISTON RING

$17.99

$

In Stock, only 3 left!

0

724 12 87-59

Husqvarna 724128759

SCREW

$6.49

$

In Stock, Qty 5

0

537 01 32-75

Husqvarna 537013275

PISTON
(Superseded to 537405902)

$79.99

$

In Stock, only 1 left!

0

537 13 60-01

Husqvarna 537136001

MUFFLER
(Superseded to 537221401)

$

$

Not available

737 44 08-00

Husqvarna 737440800

CLIP RING

$3.49

$

Usually ships in 3-10 days

0

503 71 22-01

Husqvarna 503712201

BEARING

$13.99

$

Usually ships in 3-10 days

0

503 20 07-16

Husqvarna 503200716

SCREW
(Superseded to 525755101)

$4.99

$

Usually ships in 3-10 days

0

537 03 20-05

Husqvarna 537032005

CYLINDER
(Superseded to 537032008)

$148.99

$

Usually ships in 3-10 days

0

537 07 07-01

Husqvarna 537070701

SCREEN

$10.99

$

In Stock, only 1 left!

0

503 23 51-11

Husqvarna 503235111

SPARK PLUG M14X1.25 NGK BPMR7A

Note: NGK BPMR 7A

$3.49

$

In Stock, Qty 20+

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: CHAMPION RCJ 7Y

$3.49

$

In Stock, Qty 20+

0

503 20 29-63

Husqvarna 503202963

SCREW

$8.99

$

In Stock, only 3 left!

0

503 20 02-35

Husqvarna 503200235

SCREW
(Superseded to 725533755)

$6.49

$

In Stock, Qty 6

0

537 17 23-01

Husqvarna 537172301

COOLING AIR CONDUCTOR

$8.07

$

Usually ships in 3-10 days

0
