325 HD 60 X - Husqvarna Hedge Trimmer (SN: 20022200001 - 20062300000) CUTTING EQUIPMENT Parts Diagram

Hedge Trimmer

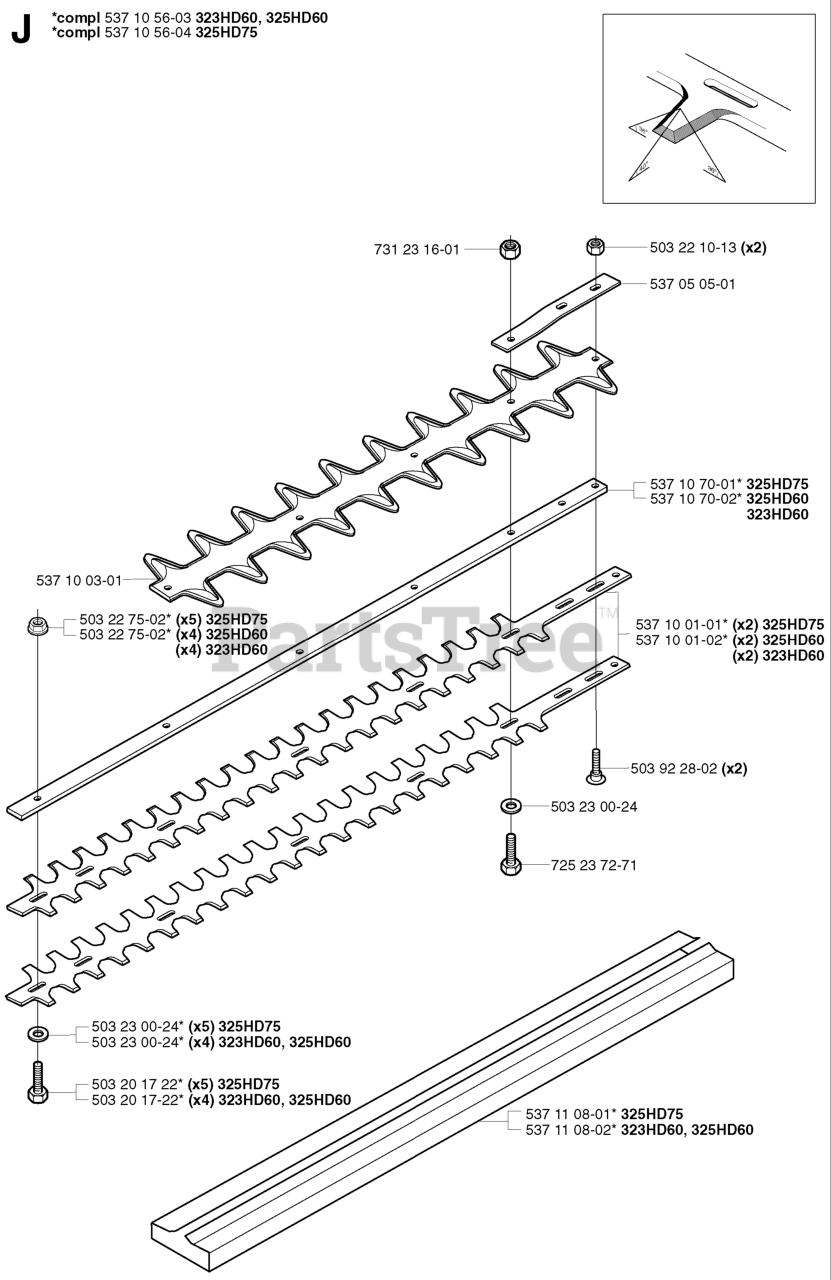

CUTTING EQUIPMENT Parts Diagram

  • Title
537 10 56-03

Husqvarna 537105603

BLADE CPL
(Superseded to 537105611)

Note: 323HD60, 325HD60

$

$

Not available

503 92 28-02

Husqvarna 503922802

RP SHOULDER BOLT
(Superseded to 503922803)

$6.49

$

Usually ships in 3-10 days

0

537 10 70-02

Husqvarna 537107002

BALK

Note: 325HD60, 323HD60

$56.99

$

Usually ships in 3-10 days

0

537 11 08-01

Husqvarna 537110801

PROTECTOR
(Superseded to 537110804)

Note: 325HD75

$34.99

$

Usually ships in 3-10 days

0

731 23 16-01

$6.49

$

In Stock, only 1 left!

0

537 10 01-01

Husqvarna 537100101

BLADE
(Superseded to 537413306)

Note: 325HD75

$117.38

$

Usually ships in 3-10 days

0

503 22 75-02

Husqvarna 503227502

NUT
(Superseded to 503220006)

Note: 325HD75

$6.49

$

In Stock, Qty 20+

0

537 10 03-01

$

$

Not available

503 22 10-13

$7.49

$

In Stock, Qty 6

0

537 10 70-01

Husqvarna 537107001

PLATE

Note: 325HD75

$

$

Not available

503 20 17-22

Husqvarna 503201722

SCREW

Note: 323HD60, 325HD60

$

$

Not available

537 10 56-04

Husqvarna 537105604

BLADE CPL
(Superseded to 537105612)

Note: 325HD75

$261.99

$

Usually ships in 3-10 days

0

503 23 00-24

Husqvarna 503230024

WASHER 6,4X18X1,5

Note: 323HD60, 325HD60

$4.99

$

In Stock, Qty 20+

0

537 05 05-01

$6.99

$

Usually ships in 3-10 days

0

537 10 01-02

Husqvarna 537100102

BLADE
(Superseded to 537413305)

Note: 325HD60, 323HD60

$

$

Not available

503 23 00-24

Husqvarna 503230024

WASHER 6,4X18X1,5

Note: 325HD75

$4.99

$

In Stock, Qty 20+

0

725 23 72-71

$2.99

$

In Stock, only 3 left!

0

503 23 00-24

Husqvarna 503230024

WASHER 6,4X18X1,5

$4.99

$

In Stock, Qty 20+

0

537 11 08-02

Husqvarna 537110802

RP PROTECTOR
(Superseded to 537110805)

Note: 323HD60, 325HD60

$26.99

$

Usually ships in 3-10 days

0

503 22 75-02

Husqvarna 503227502

NUT
(Superseded to 503220006)

Note: 325HD60, 323HD60

$6.49

$

In Stock, Qty 20+

0

503 20 17 22

Husqvarna 503201722

SCREW

Note: 325HD75

$

$

Not available
