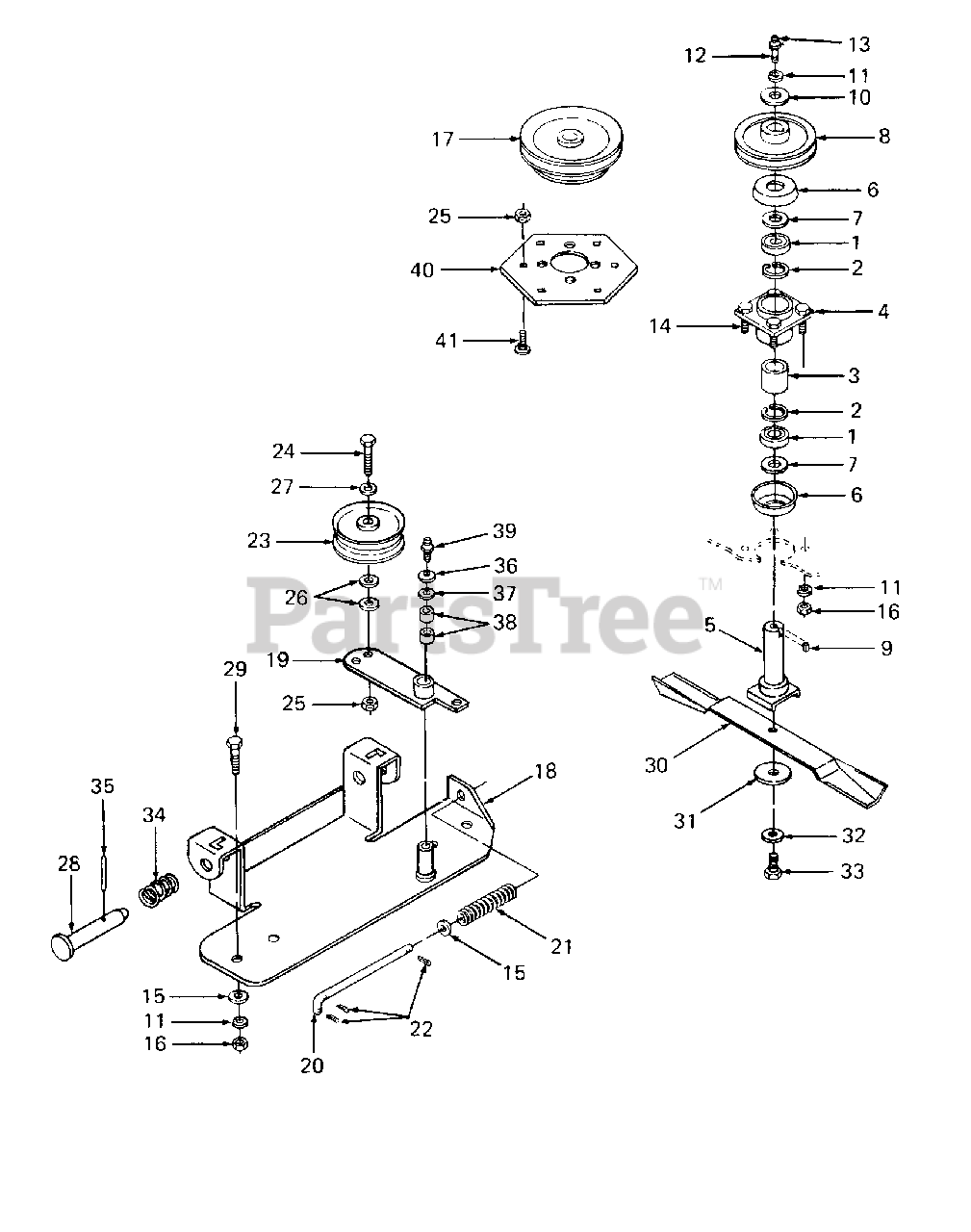

325 (190-325-100) - Cub Cadet 60" Mower Deck Blade & Drive Parts Diagram

60" Mower Deck

Blade & Drive Parts Diagram

  • Title

1

Cub Cadet 759-3504

Bearing
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

2

Cub Cadet 716-3012

Ring, Internal Snap

$

$

Not available

3

Cub Cadet HA-14236

Spacer, Bearing

$

$

Not available

4

Cub Cadet HA-14647

Housing, Spindle w/o Bolts
(Superseded to HA-14648)

$

$

Not available

5

Cub Cadet HA-20267

Shaft, Spindle
(Superseded to HA-20267P)

$276.99

$

Usually ships in 3-6 days

0

6

Cub Cadet HA-13616

Cup, Bearing

$

$

Not available

7

Cub Cadet HA-10454

Washer
(Superseded to 936-0420)

$

$

Not available

8

Cub Cadet HA-14239

Pulley, Outer

$99.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 714-0128

Key, 1/4 X 1 Sq Parallel

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet HA-14232

Washer

$

$

Not available

11

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

12

Cub Cadet HA-15939

Bolt Assy

Note: (Includes Ref No. 13)

$

$

Not available

13

Cub Cadet HA-4123

Fitting, Grease

$

$

Not available

14

Cub Cadet HA-15767

Bolt, Full Thread Rd Hd, 1/2-13

$

$

Not available

15

Cub Cadet 736-0272

Washer, Flat, .510 ID X 1.00 OD X .060 Thk

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3034

Nut, Hex, 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 756-3057

Pulley, Center

$

$

Not available

18

Cub Cadet HA-20210

Plate, Idler

$

$

Currently unavailable

19

Cub Cadet HA-20345

Arm, Idler

$

$

Not available

20

Cub Cadet HA-14256

Rod, Idler Spring

$

$

Not available

21

Cub Cadet HA-14245

Spring, Idler

$

$

Not available

22

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet HA-17581

Pulley, Idler
(Superseded to 956-3063)

$86.99

$

In Stock, only 1 left!

0

24

Cub Cadet 710-0427

Screw, Hex Cap, 3/8-16 X 2 Lg GR5
(Superseded to 710-3144)

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 9

0

26

Cub Cadet 736-3054

Washer, Flat, .438 ID X 1.00 OD X .064 Thk
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

27

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet HA-20308

Pin, Quick Latch

$

$

Not available

29

Cub Cadet 710-3032

Bolt, Hex Hd, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 759-3411

Blade, Mower, 21.00 Lg
(Superseded to 759P3411)

$

$

Not available

Cub Cadet 759-3412

Blade, Hard Coated, 21.00 Lg
(Superseded to 759-3840)

$

$

Not available

31

Cub Cadet HA-14306

Washer, Mower Blade

$

$

Not available

32

Cub Cadet HA-12157

Washer, Spring
(Superseded to 936-0253)

$

$

Not available

33

Cub Cadet HA-GM181702

Screw, Hex Cap, 1/2-20 X 1.75 Lg GR5

$

$

Not available

34

Cub Cadet HA-5681

Spring, Coupler

$9.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HA-GM9416147

Pin, Roll, 7/16 X 2

$

$

Currently unavailable

36

Cub Cadet HA-4772

Washer, Spring

$

$

Not available

37

Cub Cadet 736-3054

Washer, Flat, .438 ID X 1.00 OD X .064 Thk
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

38

Cub Cadet HA-15652

Bushing, Oilite

$

$

Not available

39

Cub Cadet HA-15293

Fitting, Grease

$

$

Not available

40

Cub Cadet HA-20258

Plate, Spindle Support

$

$

Not available

41

Cub Cadet 710-0389

Bolt, Carriage, 3/8-16 X .75 Lg

$4.49

$

In Stock, Qty 10

0
