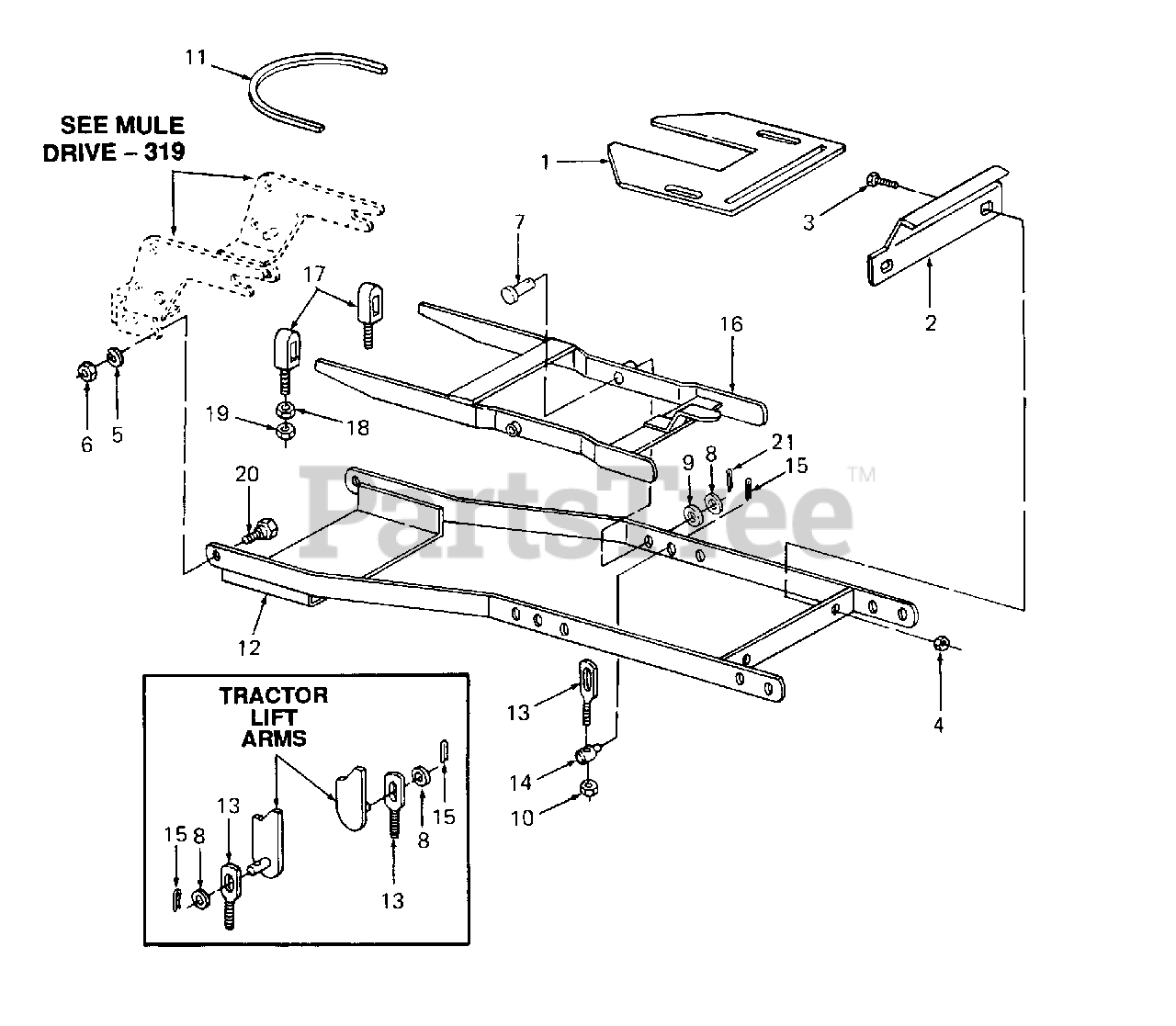

325 (190-325-100) - Cub Cadet 60" Mower Deck att Hitch & Mounting Parts Diagram

60" Mower Deck

Hitch & Mounting Parts Diagram

  • Title
1

Cub Cadet HA-20256

Plate, Rear Stabilizer

Variations

Cub Cadet HA-20256-0498

PLATE-STAB - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet HA-20255

Bracket, Rear Stabilizer

Variations

Cub Cadet HA-20255-0498

BRACKET-STABILIZER - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-3000

Nut, Hex Lock, 3/8-16

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-0510

Pin, Clevis, .50 Dia X 2.19 Lg

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0272

Washer, Flat, .51 X 1.0 X .06 Thk

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0326

Washer, Flat, .51 X 1.0 X .1 2 Thk

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

11

Cub Cadet 754-3051A

Belt, Mule Drive
(Superseded to 954-3051A)

$74.99

$

In Stock, only 1 left!

0

12

Cub Cadet HA-20280

Bracket, Mower Mounting

Variations

Cub Cadet HA-20280-0498

BRACKET-MOWER MTG. - OLD CUB YELLOW (0498)

$

$

Not available

$

$

13

Cub Cadet 719-3103

Link, Adjustable, 7.35 Lg
(Superseded to 919-3103)

$

$

Not available

14

Cub Cadet HA-19649

Ferrule, Adjustment

$

$

Not available

15

Cub Cadet HA-3430

Pin, Quick Attach
(Superseded to AF-47134)

$6.99

$

In Stock, only 1 left!

0

16

Cub Cadet HA-20283

Bracket, Mower Lift

Variations

Cub Cadet HA-20283-0498

BRACKET-MOWER LIFT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

17

Cub Cadet 719-3009

Hanger, Front Mower Support
(Superseded to 919-3009)

$69.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-3015

Nut, Hex Jam, 5/8-11 GR5

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3016

Nut, Hex Insert Top Lock, 5/8-11 GR5

$6.99

$

In Stock, Qty 13

0

20

Cub Cadet 738-3004

Bolt, Shoulder

$15.99

$

In Stock, only 4 left!

0

21

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 20+

0
