3235 (14A-692-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Starting System KH-25-098-08-S Parts Diagram

Garden Tractor

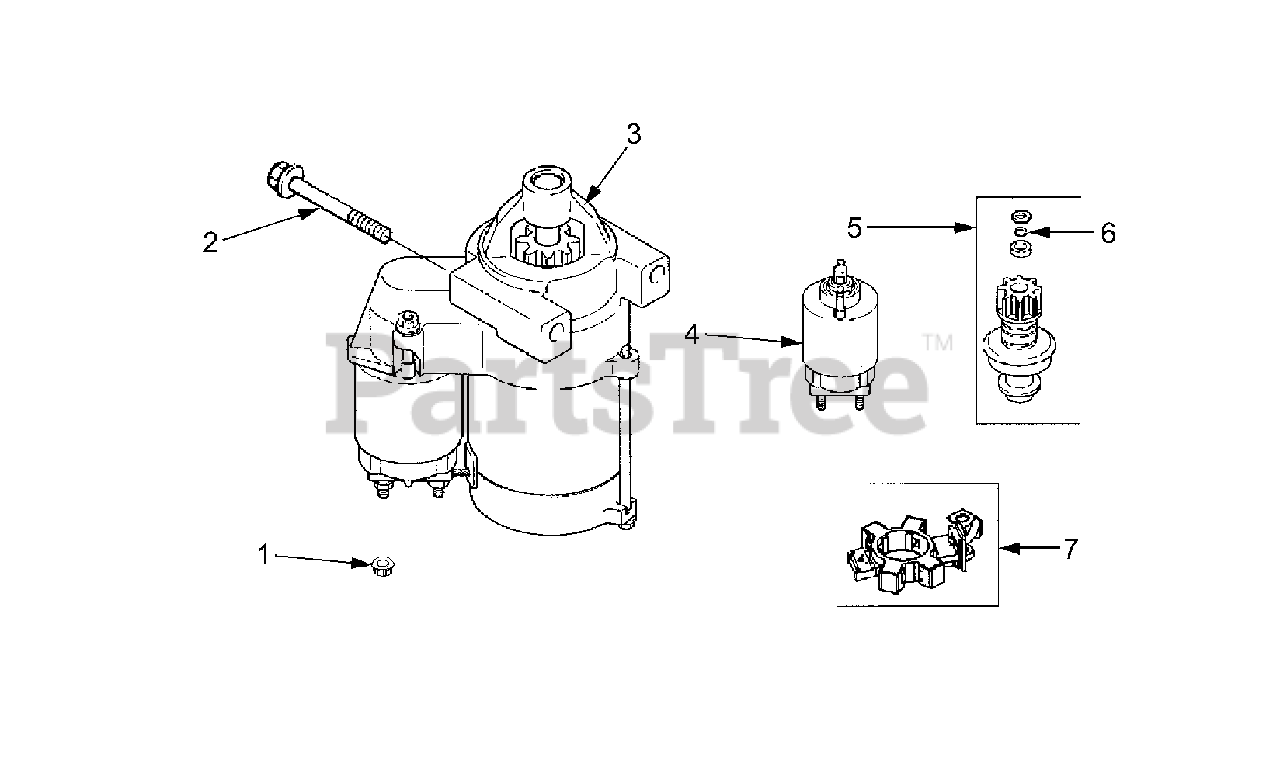

Starting System KH-25-098-08-S Parts Diagram

  • Title

1

Cub Cadet KH-M-0841080

Nut, Hex Flange M8 x 1.25"
(Superseded to 712-3086)

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-M-839080

Screw, Hex Flange M8 x 1.25 x 80
(Superseded to KH-M-851080-S)

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-25-098-09-S

Starter assembly, solenoid shift (Delco)
(Superseded to KH-25-098-24-S)

Note: (Includes 4-7)

$316.99

$

In Stock, Qty 17

0

4

Cub Cadet KH-25-435-05-S

Kit, Solenoid
(Superseded to KH-25-435-06-S)

Note: (Includes 3 Torx head screws)

$212.99

$

In Stock, only 2 left!

0

Cub Cadet KH-25-086-113-S

Screw, external Torx head M4 x 0.7 x 26

Note: (not shown)

$15.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-25-755-33-S

Kit, Pinion Drive

Note: (Includes 6)

$

$

Not available

6

Cub Cadet KH-25-141-05-S

Ring, Retainer

$3.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-25-221-01-S

Kit, Brush

$70.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-M-0841080

Nut, hex. flange M8x1.25
(Superseded to 712-3086)

Note: Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S); Not shown

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-M-839080

Screw, hex. flange M8x1.25x80
(Superseded to KH-M-851080-S)

Note: Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S); Not shown

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-25-098-08-S

Starter assembly, solenoid shift (Delco)
(Superseded to KH-25-098-24-S)

Note: Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S); Not shown

$316.99

$

In Stock, Qty 17

0

Cub Cadet KH-25-435-04-S

Kit, solenoid (plunger not part of solenoid)

Note: Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S); Not shown

$

$

Not available

~N/A

Screw, external Phillips head (purchase locally)

Note: Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S); Not shown

$

$

Not available

Cub Cadet KH-25-755-33-S

Kit, pinion drive

Note: Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S); Not shown

$

$

Not available

Cub Cadet KH-25-141-05-S

Ring, retainer

Note: Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S); Not shown

$3.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-221-01-S

Kit, brush

Note: Delco-Remy SOLENOID SHIFT STARTER (25 098 08-S); Not shown

$70.99

$

Usually ships in 2-5 days

0
