3235 (14A-692-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Hood, Grille And Side Panels With Hood Latch Parts Diagram

Garden Tractor

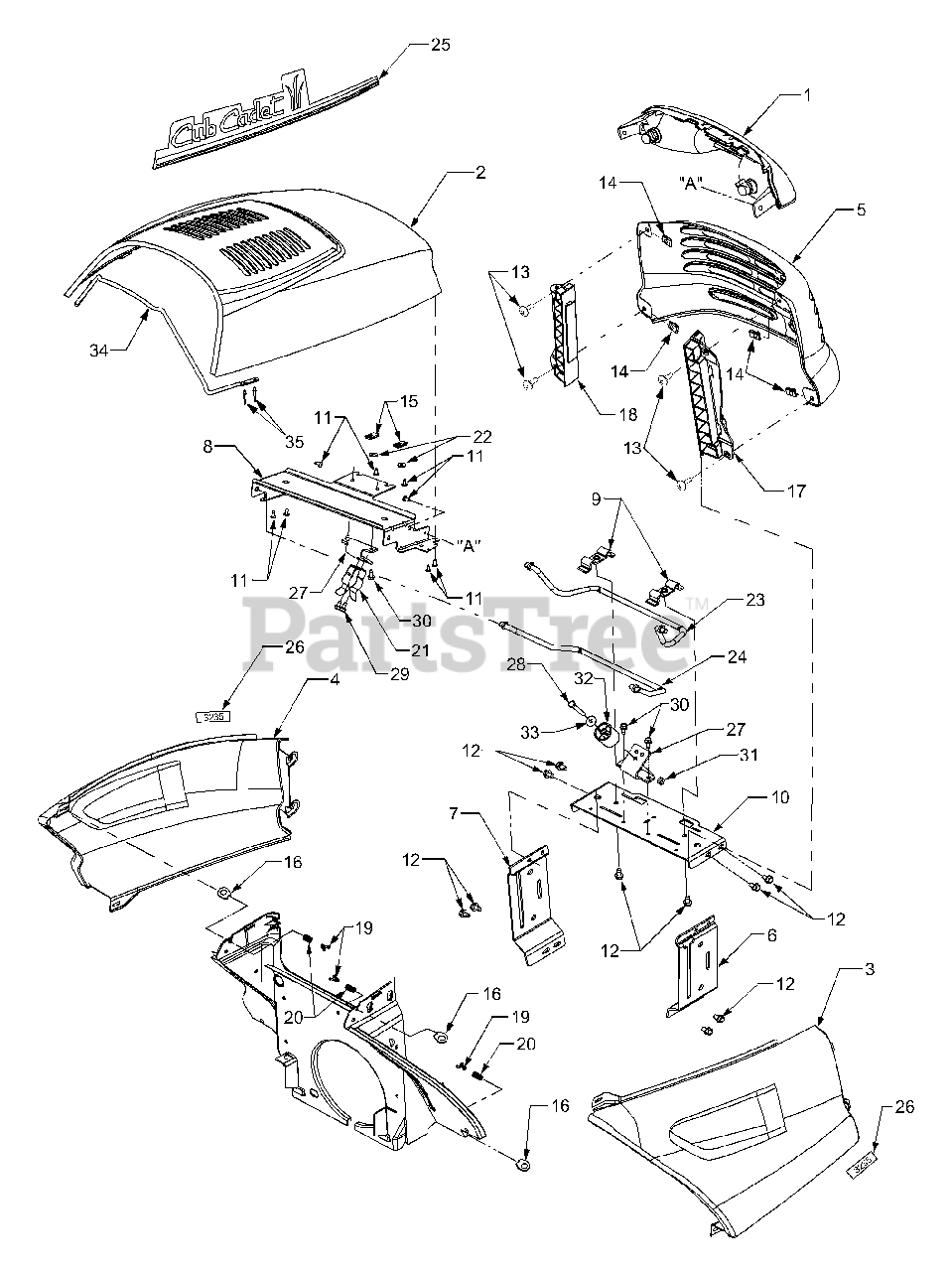

Hood, Grille And Side Panels With Hood Latch Parts Diagram

  • Title

1

Cub Cadet 625-04001

Headlight Assembly
(Superseded to 925-04001A)

$158.99

$

In Stock, Qty 9

0

Cub Cadet 725-0963

Bulb, Headlight
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

Cub Cadet 725-1649

Socket Assembly, Headlight
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

2

Cub Cadet 703-05000A-0499

Hood

$270.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2946-0499

Side Panel, RH

$344.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-2947-0499

Side Panel, LH

$

$

Not available

5

Cub Cadet 703-2950-0499

Grille, Series 3000

$163.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20314

Graphic, Warning

$

$

Not available

6

Cub Cadet 703-2984-0716

Support, Grille - RH

$

$

Not available

7

Cub Cadet 703-2985-0716

Support, Grille - LH

$

$

Not available

8

Cub Cadet 703-3070B-0499

Bracket, Upper Hood

$

$

Not available

Cub Cadet 777S30538

Graphic, Hot Surface

$

$

Not available

9

Cub Cadet 703-3071

Bracket, Rod Retainer

$

$

Not available

10

Cub Cadet 703-3101B-0716

Support, Hood

$

$

Not available

11

Cub Cadet 710-0351

Screw, Truss Hd, Tapp, #10-16 x .5

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 12

0

13

Cub Cadet 710-0924

Screw, Phil. Pan Hd. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 726-3054

Nut, U Type Speed, 1/4-20

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-0139

Nut, U-type Speed, #10

$6.99

$

In Stock, only 1 left!

0

16

Cub Cadet 726-3056

Latch, 1/4 Turn

$7.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-3227

Mount, Side Panel/Grille RH

$

$

Not available

18

Cub Cadet 731-3228

Mount, Side Panel/Grille LH

$

$

Not available

19

Cub Cadet 732-0936

Clip, Spring
(Superseded to 726-05561)

$

$

Not available

20

Cub Cadet 732-0937

Spring, Compression

$8.49

$

In Stock, only 2 left!

0

21

Cub Cadet 732-1178

Spring, Hood Latch

$28.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$5.49

$

In Stock, Qty 14

0

23

Cub Cadet 747-3478

Rod, Upper Hood

$

$

Not available

24

Cub Cadet 747-3338

Rod, Lower Hood

$

$

Not available

25

Cub Cadet 777D03265

Graphic, Hood - RH

$

$

Not available

Cub Cadet 777D03266

Graphic, Hood - LH

$

$

Not available

26

Cub Cadet 777D03276

Graphic, 3235

$

$

Not available

27

Cub Cadet 703-4088-0716

Bracket, Hood Latch Support

$

$

Currently unavailable

28

Cub Cadet 710-0136

Screw, Hex Cap, 1/4-20 x 1.75 GR5

$3.99

$

In Stock, only 2 left!

0

29

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-1005

Screw, Hex Wash Hd Tapp, 1/4-14 x .5
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 712-3051

Nut, Hex Top Lock, 1/4-20

$

$

Not available

32

Cub Cadet 731-3232

Roller, Hood Latch

$8.99

$

In Stock, only 1 left!

0

33

Cub Cadet 736-0342

Washer, Flat, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-04085

Rod, Hood Support

$

$

Not available

35

Cub Cadet 728-0117

Rivet, Pop, .125 OD

$3.99

$

Usually ships in 3-6 days

0
