3235 (14A-676-100) - Cub Cadet Garden Tractor (SN: 1J310G & Before) Ignition/Electrical Parts Diagram

Garden Tractor

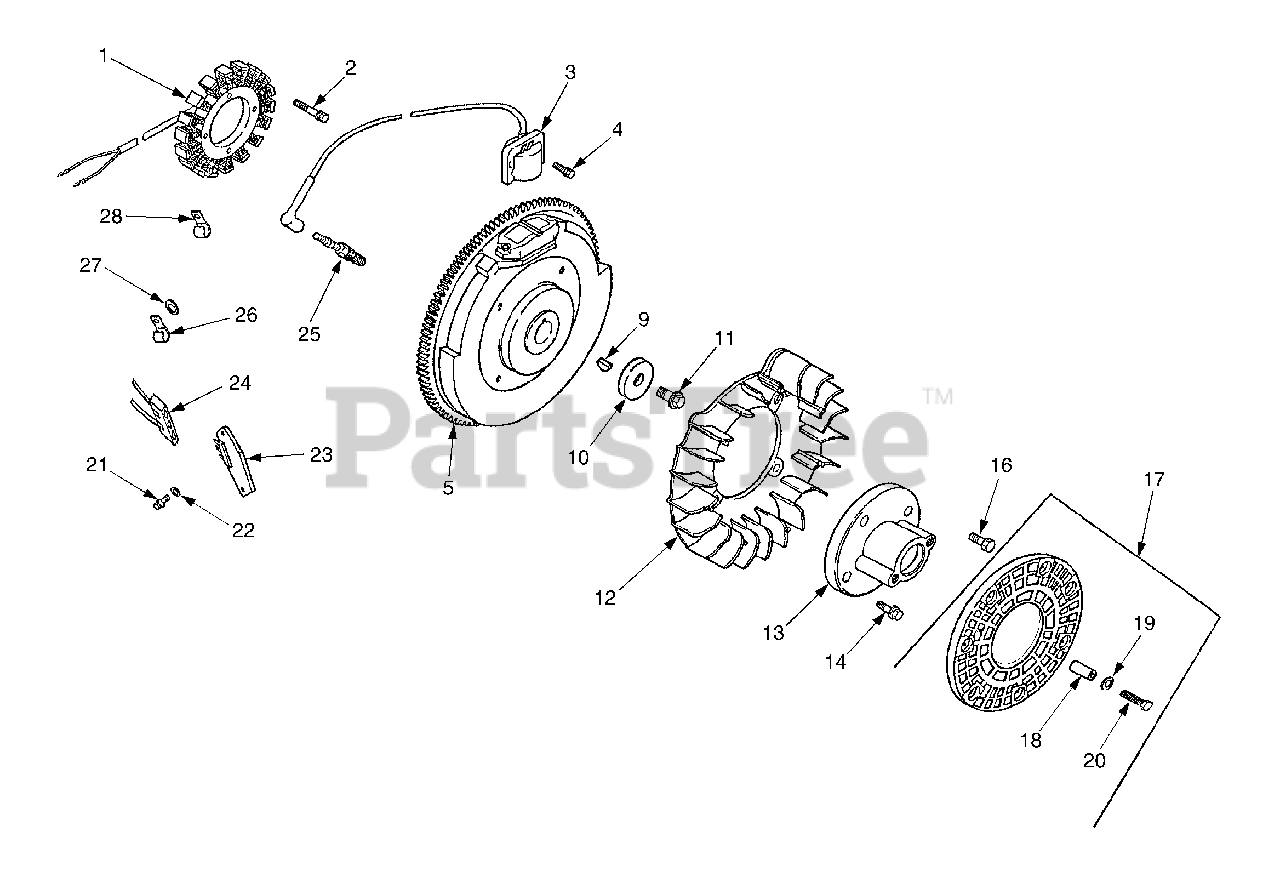

Ignition/Electrical Parts Diagram

  • Title

1

Cub Cadet KH-54-755-09

Kit, 15 Amp Stator
(Superseded to KH-237878)

Note: (Incl KH-24-126-71 Bracket)

$

$

Not available

2

Cub Cadet KH-M-0548025

Screw, Hex Cap M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-584-01

Module, Ignition
(Superseded to KH-24-584-45-S)

$110.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-M-0545020

Screw, Hex Socket Hd. M5 x 0.8 x

$

$

Not available

5

Cub Cadet KH-24-025-04

Flywheel
(Superseded to KH-24-025-55-S)

$

$

Not available

9

Cub Cadet KH-X-42-15

Key

$

$

Not available

10

Cub Cadet KH-12-468-03

Washer, Plain 3/8"

$

$

Not available

11

Cub Cadet KH-12-086-14

Screw, Hex Flange M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, Qty 12

0

12

Cub Cadet KH-24-157-03

Fan
(Superseded to KH-24-755-253-S)

$45.99

$

In Stock, Qty 8

0

13

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$32.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-24-086-16

Screw, Hex Flange M10 x 1.5 x 90
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 5

0

16

Cub Cadet KH-25-086-47

Bolt, Shoulder, M6 x 1.0 x 16

$

$

Not available

17

Cub Cadet KH-54-755-15

Kit, Grass Screen

Note: (Incl 18-20 and KH-24-113-18)

$

$

Not available

18

Cub Cadet KH-24-112-04

Spacer

$

$

Not available

19

Cub Cadet KH-X-25-92

Washer, Plain 3/16"

$

$

Not available

20

Cub Cadet KH-M-0403025

Screw, Hex Cap M4 x 0.7 x 25

$

$

Currently unavailable

21

Cub Cadet KH-24-086-18

Screw, Phillips Hd. 11-16 x 7/8"

$

$

Not available

22

Cub Cadet KH-X-25-92

Washer, Plain 3/16"

$

$

Not available

23

Cub Cadet KH-25-403-03

Rectifier-regulator 15 Amp
(Superseded to KH-41-403-10-S)

$

$

Not available

24

Cub Cadet KH-236602

Connector (3 Contact)
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, only 1 left!

0

25

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

26

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

27

Cub Cadet KH-X-25-63

Washer, Plain 1/4"

$

$

Not available

28

Cub Cadet KH-48-154-02

Clip, Cable

$

$

Not available

Cub Cadet KH-24-176-08

Harness, Wire
(Superseded to KH-24-176-171-S)

$117.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-518-12-S

Lead

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-22-11

Washer, Lock, 1/4

$

$

Not available

Cub Cadet KH-X-67-3

Screw, Hex Sems 10-26 x .5
(Superseded to KH-25-086-91-S)

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-71

Bracket
(Superseded to KH-24-126-139-S)

$15.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-113-18

UNKNOWN

$

$

Currently unavailable
