3235 (14A-672-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Starting System KH-25-098-09S Parts Diagram

Garden Tractor

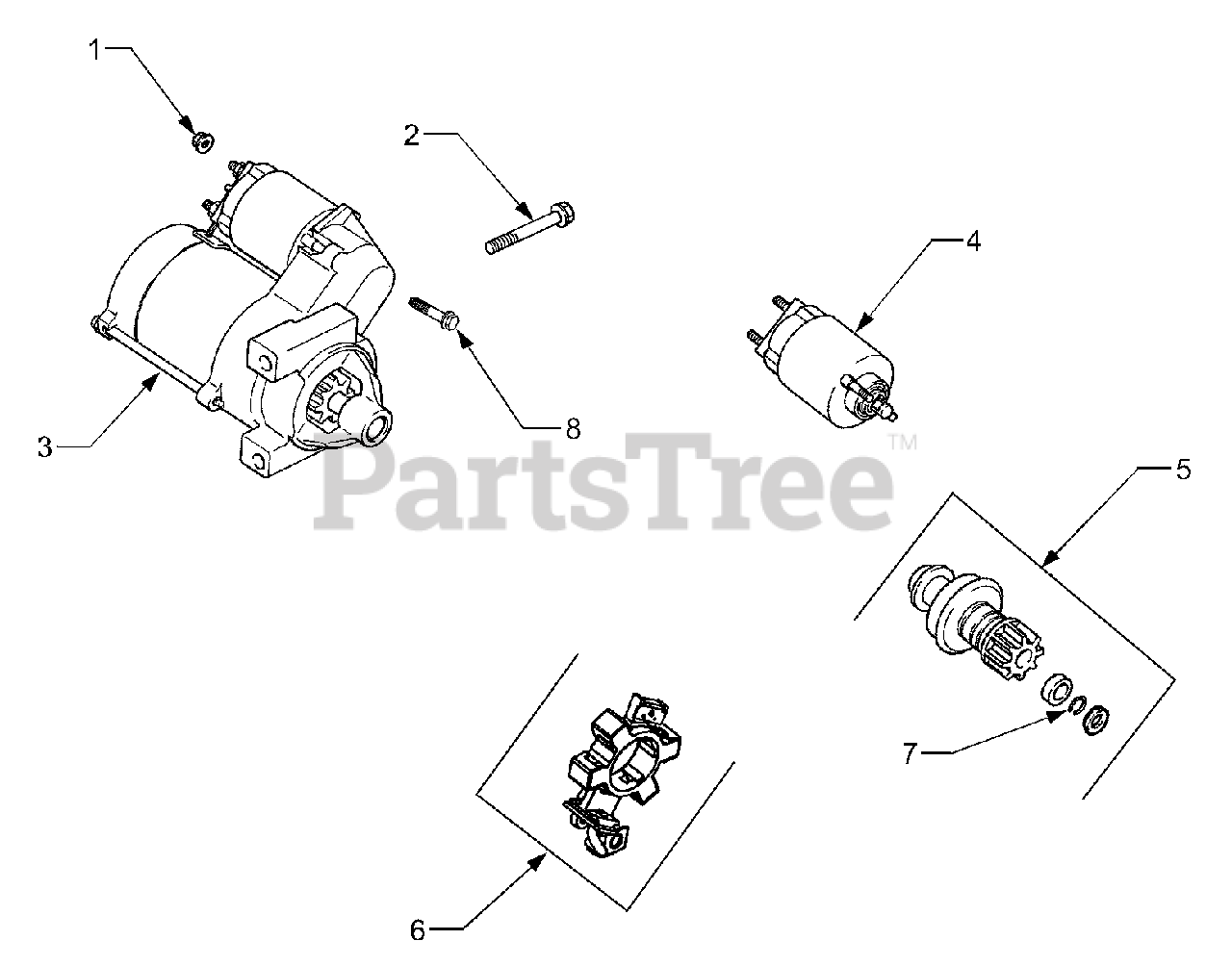

Starting System KH-25-098-09S Parts Diagram

  • Title

1

Cub Cadet KH-M-0841080

Nut, Hex Flange M8 x 1.25"
(Superseded to 712-3086)

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-M-839080

Screw, Hex Flange M8 x 1.25 x 80
(Superseded to KH-M-851080-S)

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-25-098-09-S

Starter, Solenoid Shift Assembly
(Superseded to KH-25-098-24-S)

Note: (Includes 4-8)

$316.99

$

In Stock, Qty 17

0

4

Cub Cadet KH-25-435-05-S

Kit, Solenoid
(Superseded to KH-25-435-06-S)

Note: (Includes 8)

$212.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-25-755-33-S

Kit, Pinion Drive

Note: (Includes 7)

$

$

Not available

6

Cub Cadet KH-25-221-01-S

Kit, Brush

$70.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-25-141-05-S

Ring, Retainer

$3.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-25-086-113-S

Screw, External Torx Hd.

$15.99

$

Usually ships in 2-5 days

0
