3235 (14A-672-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Fuel System KH-730104 Parts Diagram

Garden Tractor

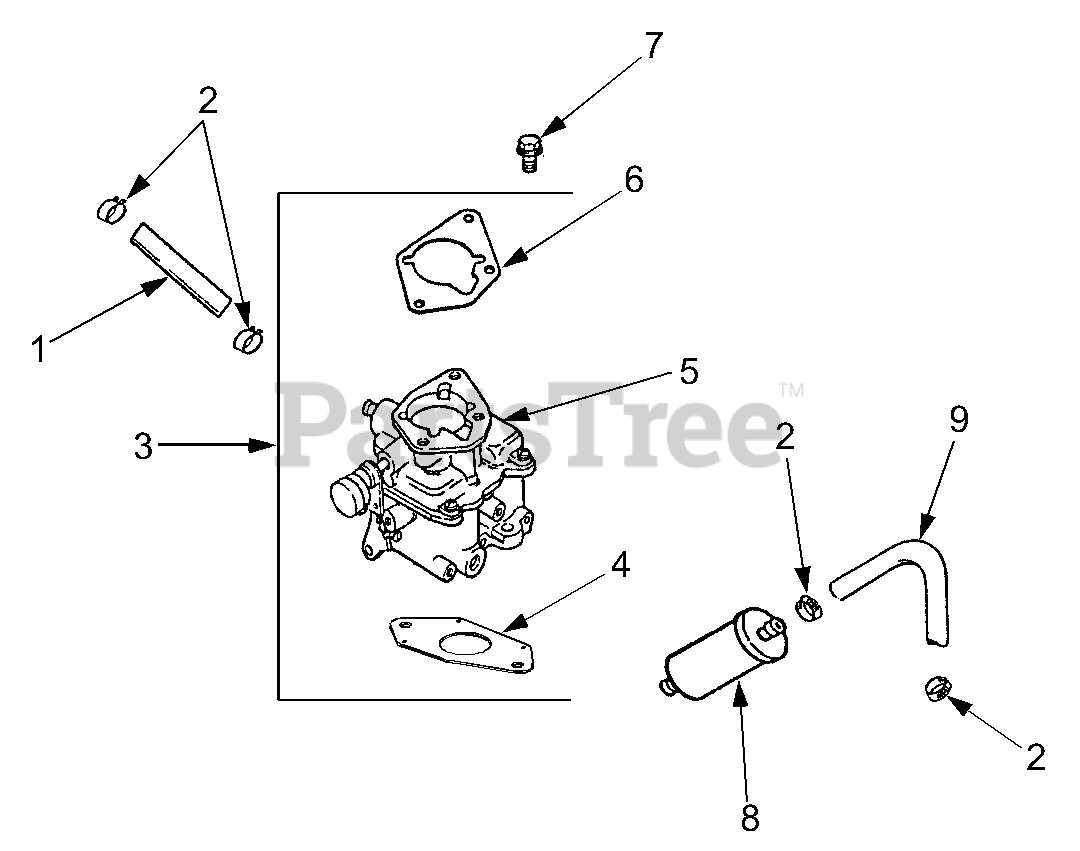

Fuel System KH-730104 Parts Diagram

  • Title
1

Cub Cadet KH-52-353-20

Line, Fuel 10"
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

2

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-91-S

Kit, Carburetor w/Gasket
(Superseded to KH-24-853-257-S)

Note: (Includes 4-6)

$

$

Not available

4

Cub Cadet KH-24-041-52-S

Gasket, Carburetor
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

5

Carburetor Assembly

Note: Not available separately

$

$

Not available

6

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-M-651025-S

Screw, Hex Flange, M6 x 1.0 x
(Superseded to KH-25-086-124-S)

Note: 2

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-050-02

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-353-12

Line, Fuel 11"

$

$

Not available

Cub Cadet KH-24-518-24-S

Lead, Ground

Note: Not Illustrated

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-01

Kit, Solenoid

Note: Includes Solenoid Screw [qty. 2], O-Ring, O-Ring, O-Ring , Solenoid Assembly & Solenoid Seat.; Not Illustrated

$

$

Not available

Cub Cadet KH-24-757-02

Kit, Float Repair -
(Superseded to KH-24-757-02-S)

Note: Includes Carburetor Body Gasket, Float Screw, Float Assembly and Float Shaft.; Not Illustrated

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03

Kit, Carburetor Repair -
(Superseded to KH-24-757-03-S)

Note: Includes Carburetor Gasket; Carburetor Body Screw; Idle Needle Spring; U-Ring; Slow Jet O-Ring; Main Jet Screw O-Ring; Solenoid O-Rings; Inlet Needle Valve Clip; Idle Needle and Inlet Needle Valve.; Not Illustrated

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Choke Repair -

Note: Includes Choke Plate Screws; Choke Spring; Choke Lever; Choke Shaft; Choke Plate; Choke Bushings; and Choke Lever Cap.; Not Illustrated

$

$

Not available

Cub Cadet KH-24-757-08-S

Kit, Repair, (accelerator pump diaphragm)

Note: Not Illustrated

$84.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-09-S

Kit, Repair, (accelerator pump seal & bushing)

Note: Not Illustrated

$109.99

$

Usually ships in 2-5 days

0
