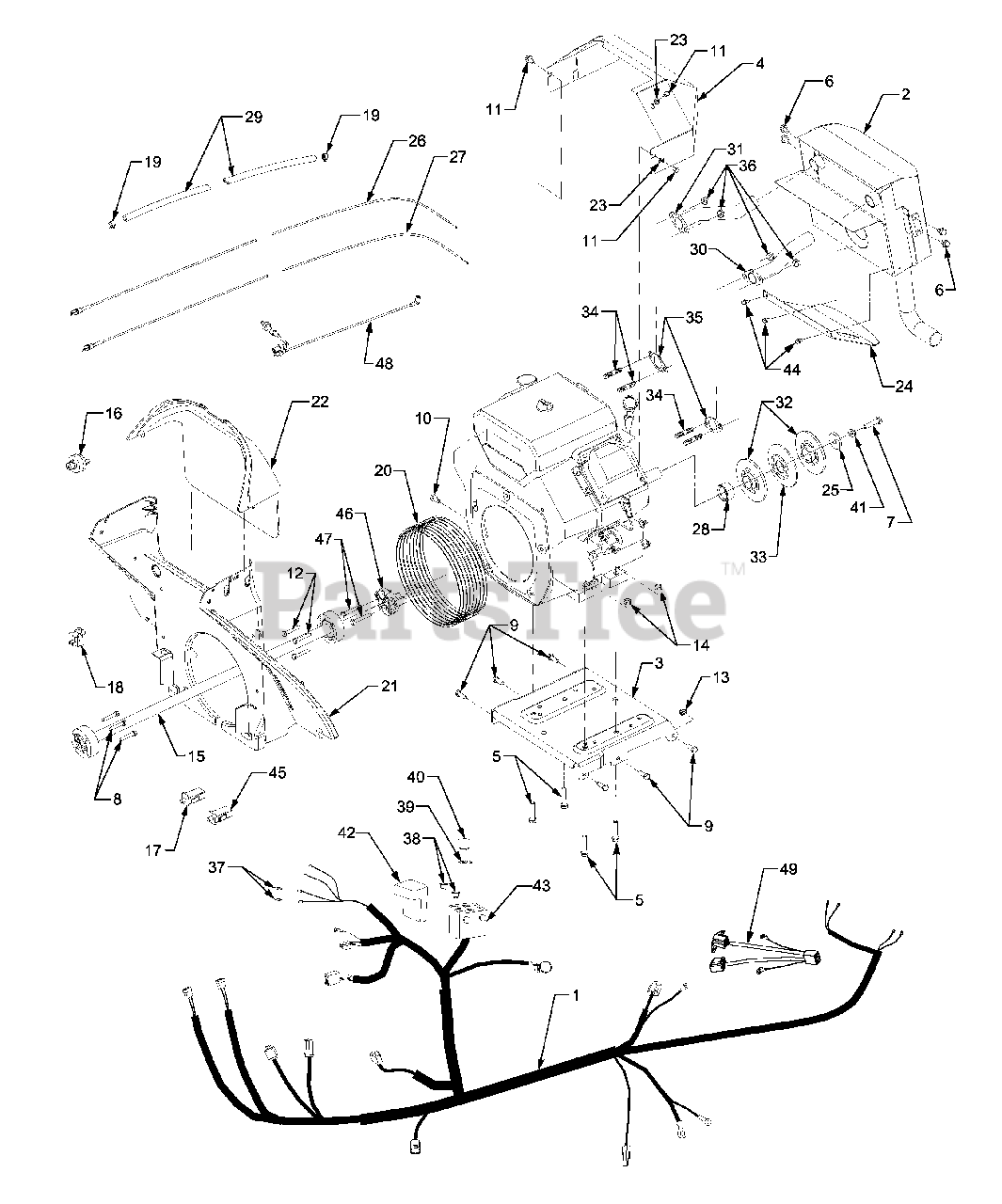

3235 (14A-672-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Driveshaft And Engine Connections Parts Diagram

Garden Tractor

Driveshaft And Engine Connections Parts Diagram

  • Title

1

Cub Cadet 929-3074A

Harness, Wire

$

$

Not available

1

Cub Cadet 926-0154

Tie, Pushmount

$6.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 726-3055

Clip, Cable

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 651-3003

Muffler Assembly

$

$

Not available

3

Cub Cadet 703-2909-0716

Plate, Engine Mounting

$

$

Not available

4

Cub Cadet 703-2999

Shield, Muffler Heat

$92.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0539

Screw, Hex Cap, 3/8-24 x 1.75 GR5

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 12

0

7

Cub Cadet 710-0757

Screw, Hex Cap, 7/16-20 x 1.5 GR5

$9.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-1062

Screw, Hex Cap Lock 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

10

Cub Cadet 710-0237

Screw, Hex Cap, M8 - 1.25 x 16MM GR5

Note: (Use with KH-730104 engine)

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 710-3209

Screw, Hex Cap, M6 - 1.0 x 10MM

$8.49

$

In Stock, Qty 13

0

12

Cub Cadet 710-3288

Screw, Hex Cap, Lock 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

13

Cub Cadet 912-0429

Nut, Hex Insert Lock, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 918-3093

Shaft, Drive, 27.125 Long

$337.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 759-3764

Drive Barrels Kit

Note: Not shown (2 used per tractor)

$27.99

$

In Stock, Qty 20+

0

16

Cub Cadet 925-3163

Switch, Key

$48.99

$

In Stock, only 3 left!

0

16

Cub Cadet 959-3476A

Key, Ignition
(Superseded to 925-0201)

Note: (Set of 2)(not shown)

$9.49

$

In Stock, only 1 left!

0

16

Cub Cadet 725-1341B

Key, Ignition

Note: (no logo)(not shown)

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet 925-3164A

Switch, Plunger (Reverse)

$40.99

$

In Stock, only 2 left!

0

18

Cub Cadet 925-3166

Switch, Snap Mount (Seat)

$16.99

$

In Stock, Qty 20+

0

19

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

20

Cub Cadet 731-3166

Boot, Intake

$

$

Not available

21

Cub Cadet 731-3221A

Baffle, Lower Air

$98.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-3231A

Baffle, Upper Air

$

$

Not available

23

Cub Cadet 936-0142

Washer, Flat, .281 x .50 x .06
(Superseded to 736-0142)

$4.99

$

In Stock, only 4 left!

0

24

Cub Cadet 703-3398

Shield, Lower Exhaust

$65.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-3017

Washer, Flat, .417 x 1.5 x .225

$10.99

$

In Stock, only 4 left!

0

26

Cub Cadet 746-3075

Cable, Throttle Control

$23.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 746-3077

Cable, Choke Control

$25.99

$

In Stock, Qty 7

0

28

Cub Cadet 750-3201

Spacer, Crankshaft

Note: NLA

$

$

Not available

29

Cub Cadet 751-10349-72

Hose, Fuel Line

Note: (60in. Required)

$60.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 751-3154

Pipe, Exhaust RH

$

$

Not available

31

Cub Cadet 751-3155

Pipe, Exhaust LH

$85.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-3091A

Pulley Half

$54.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 756-3099

Pulley, Center

$79.99

$

In Stock, only 1 left!

0

34

Cub Cadet KH-25-072-24-S

Stud, M8 - 1.25 x 33MM

$3.99

$

In Stock, only 3 left!

0

35

Cub Cadet KH-24-041-49-S

Gasket, Exhaust

$

$

Not available

36

Cub Cadet 712-3086

Nut, Hex, M8 x 1.25

$4.49

$

In Stock, only 2 left!

0

37

Cub Cadet 925-1365

Bulb, Indicator

$10.99

$

In Stock, only 3 left!

0

38

Cub Cadet 725-3243

Fuse, 25 Amp

$5.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 921-0342

Gasket, Silicone

$7.99

$

In Stock, only 3 left!

0

40

Cub Cadet 925-1648

Relay, PTO
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 8

0

41

Cub Cadet 936-0171

Washer, Lock, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

42

Cub Cadet 959-3869

Cover, Fuse Box

$

$

Not available

43

Cub Cadet 959-3869

Box, Fuse

$

$

Not available

44

Cub Cadet 710-3007

Screw, Hex Wash. Hd. Tapp, #12-24 x .38

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 925-3191A

Switch, Plunger (Brake)

$54.99

$

In Stock, only 4 left!

0

46

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$32.99

$

In Stock, only 1 left!

0

47

Cub Cadet KH-24-086-17-S

Screw, Hex Flange, M10 x 1.5 x 90

$2.49

$

In Stock, Qty 5

0

48

Cub Cadet 751-3199

Hose, Vacuum

$79.99

$

Usually ships in 3-6 days

0

49

Not used

$

$

Not available
