323 HD 60 - Husqvarna Hedge Trimmer (SN: 20022200001 - 20062300000) CARBURETOR Parts Diagram

Hedge Trimmer

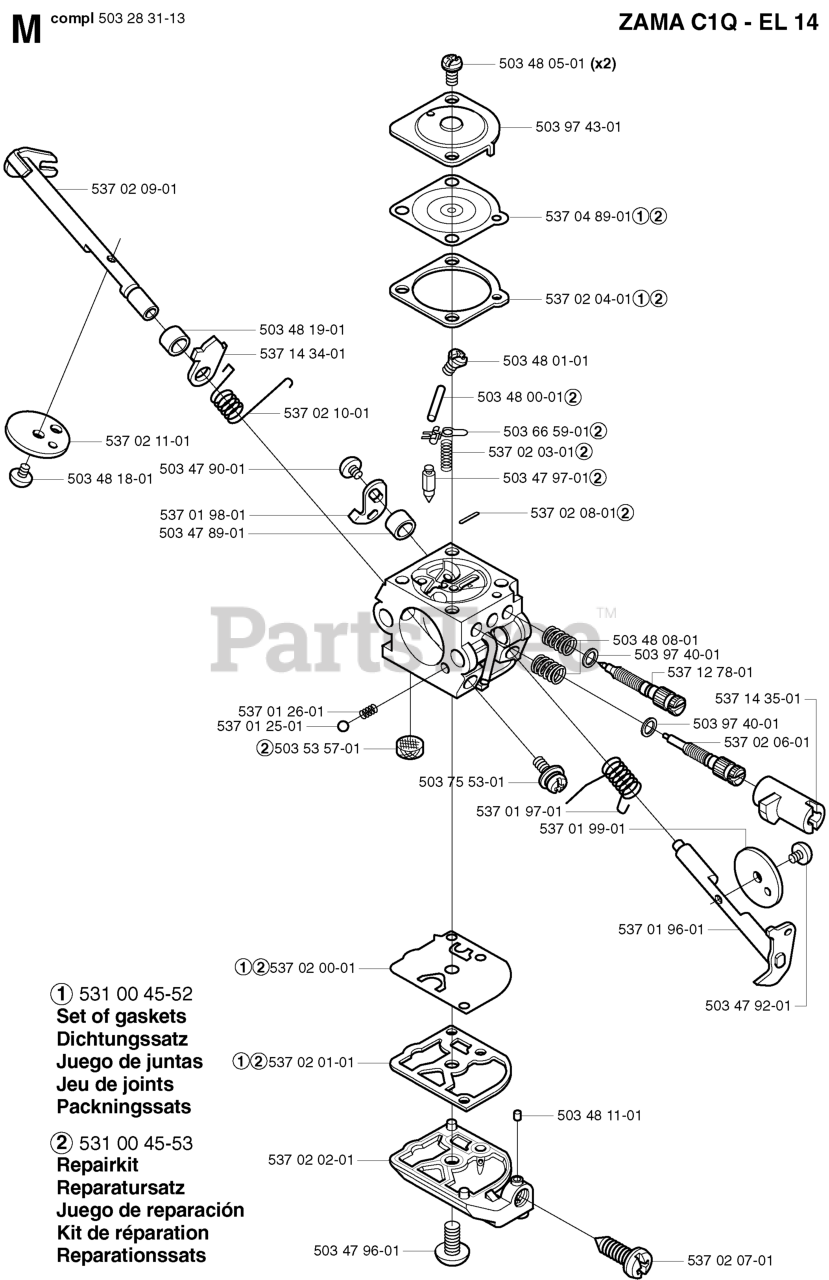

CARBURETOR Parts Diagram

  • Title
503 75 53-01

$3.49

$

In Stock, only 1 left!

0

503 97 40-01

$3.49

$

Usually ships in 3-10 days

0

537 02 02-01

$26.99

$

Usually ships in 3-10 days

0

537 02 03-01

Husqvarna 537020301

SPRING
(Superseded to 537273401)

Note: 531 00 45-53 REPAIRKIT

$

$

Not available

537 02 08-01

Husqvarna 537020801

PIN

Note: 531 00 45-53 REPAIRKIT

$3.49

$

In Stock, only 1 left!

0

503 53 57-01

Husqvarna 503535701

STRAINER

Note: 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, only 3 left!

0

537 02 00-01

Husqvarna 537020001

PUMP DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS 531 00 45-53 REPAIRKIT

$9.49

$

In Stock, Qty 5

0

503 47 97-01

Husqvarna 503479701

INLET NEEDLE

Note: 531 00 45-53 REPAIRKIT

$10.99

$

In Stock, only 1 left!

0

537 01 99-01

Husqvarna 537019901

THROTTLE FLAP

$3.34

$

In Stock, only 2 left!

0

537 01 26-01

$3.99

$

In Stock, only 1 left!

0

537 01 98-01

$4.99

$

In Stock, only 1 left!

0

537 02 07-01

$14.99

$

In Stock, only 1 left!

0

537 02 09-01

Husqvarna 537020901

CHOKE SHAFT

$10.99

$

Usually ships in 3-10 days

0

537 02 11-01

Husqvarna 537021101

DISC
(Superseded to 537370301)

$7.99

$

In Stock, only 3 left!

0

531 01 96-01

Husqvarna 531019601

NEEDS DESCRIPTION

$

$

Currently unavailable

503 48 11-01

$10.99

$

Usually ships in 3-10 days

0

537 02 04-01

Husqvarna 537020401

GASKET

Note: 531 00 45-52 SET OF GASKETS 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, Qty 9

0

537 01 96-01

$6.91

$

Usually ships in 3-10 days

0

503 66 59-01

Husqvarna 503665901

LEVER

Note: 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, only 2 left!

0

503 48 05-01

$4.99

$

Usually ships in 3-10 days

0

537 14 34-01

$

$

Not available

503 47 96-01

$3.99

$

In Stock, Qty 5

0

537 02 06-01

Husqvarna 537020601

NEEDLE HIGH SPEED

$4.99

$

Usually ships in 3-10 days

0

503 48 18-01

$3.99

$

Usually ships in 3-10 days

0

537 01 97-01

Husqvarna 537019701

SPRING THROTTLE

$3.49

$

In Stock, only 1 left!

0

537 01 25-01

$3.99

$

In Stock, Qty 7

0

503 48 08-01

Husqvarna 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

503 48 19-01

$6.99

$

In Stock, only 4 left!

0

537 14 35-01

$

$

Not available

503 28 31-13

Husqvarna 503283113

CARBURETOR

$113.99

$

In Stock, only 3 left!

0

503 48 01-01

$3.99

$

Usually ships in 3-10 days

0

537 02 01-01

Husqvarna 537020101

GASKET

Note: 531 00 45-52 SET OF GASKETS 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, Qty 13

0

503 47 92-01

$3.99

$

In Stock, only 2 left!

0

531 00 45-52

Husqvarna 531004552

GASKET KIT (ZAMA GND39)

$11.99

$

In Stock, only 1 left!

0

503 48 00-01

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

Note: 531 00 45-53 REPAIRKIT

$3.49

$

In Stock, only 1 left!

0

503 47 89-01

$4.99

$

Usually ships in 3-10 days

0

537 04 89-01

Husqvarna 537048901

DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS 531 00 45-53 REPAIRKIT

$13.99

$

In Stock, Qty 18

0

531 00 45-53

Husqvarna 531004553

CARBURETOR KIT (ZAMA RB69)

$20.99

$

Usually ships in 3-10 days

0

503 97 43-01

$6.99

$

In Stock, only 1 left!

0

503 47 90-01

$3.99

$

In Stock, Qty 8

0

537 12 78-01

Husqvarna 537127801

LOW SPEED NEEDLE

$17.99

$

Usually ships in 3-10 days

0

537 02 10-01

$3.49

$

In Stock, only 1 left!

0
