323 EX - Husqvarna Handheld Edger CARBURETOR & AIR FILTER Parts Diagram

Handheld Edger

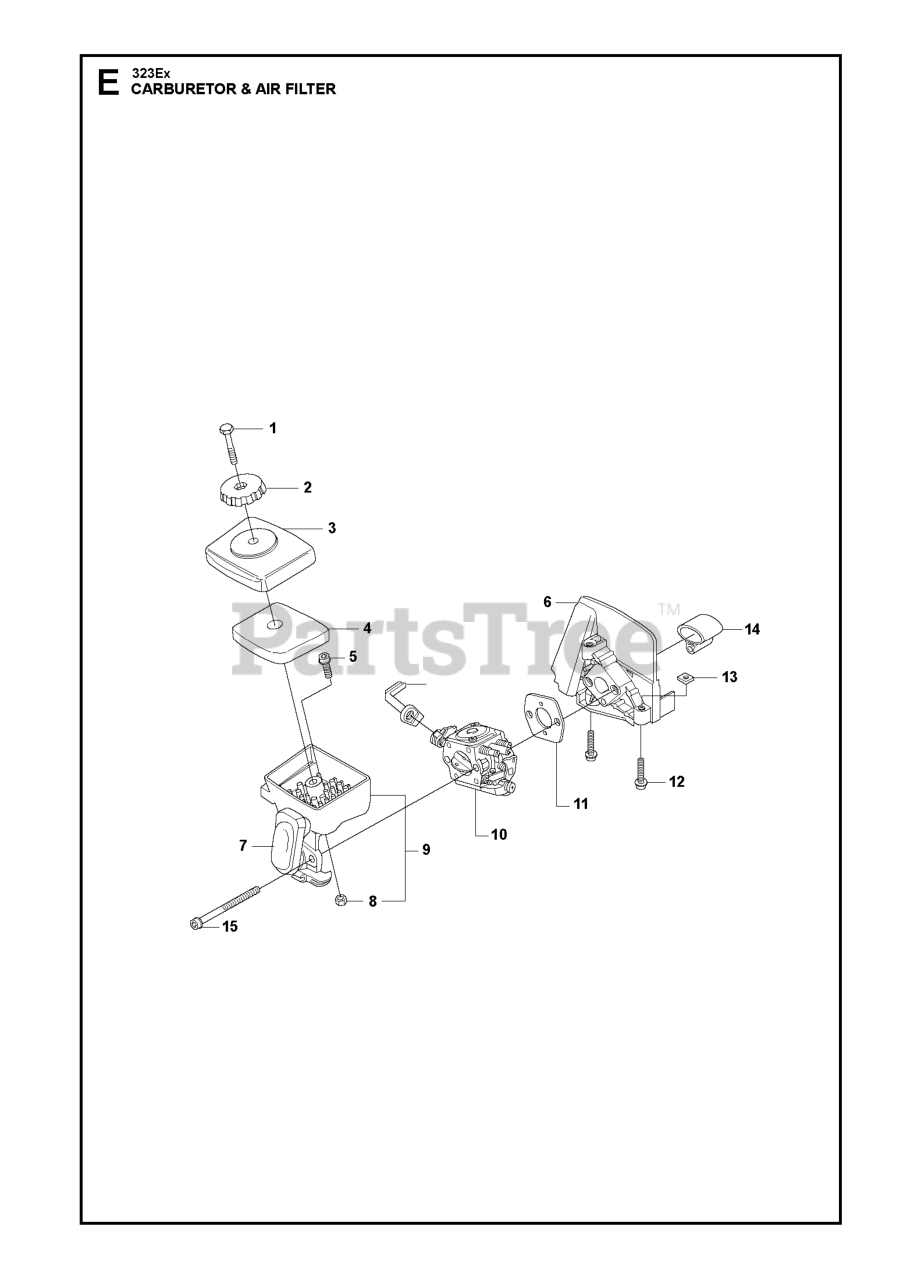

CARBURETOR & AIR FILTER Parts Diagram

  • Title

1

Husqvarna 502206503

SCREW

$3.99

$

In Stock, Qty 13

0

4

Husqvarna 537186301

AIR FILTER (READY-OILED)

$7.49

$

In Stock, Qty 6

0

8

Husqvarna 731231401

NUT

$2.49

$

In Stock, only 1 left!

0

2

Husqvarna 502204001

KNOB

$6.49

$

In Stock, Qty 15

0

13

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 13

0

12

Husqvarna 503200325

SCREW

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503888001

AIR FILTER COVER

$9.99

$

In Stock, only 2 left!

0

5

Husqvarna 503217516

SCREW

$4.99

$

In Stock, only 4 left!

0

14

Husqvarna 503942601

PIPE

$11.99

$

In Stock, only 2 left!

0

15

Husqvarna 503217550

SCREW

$6.49

$

In Stock, only 4 left!

0

6

Husqvarna 503910901

PARTITION

$14.99

$

In Stock, only 1 left!

0

9

Husqvarna 503890301

FILTER HOLDER

$17.99

$

In Stock, only 1 left!

0

11

Husqvarna 503497101

GASKET

$8.99

$

In Stock, Qty 17

0

10

Husqvarna 503283111

CARBURETOR
(Superseded to 588171156)

$45.99

$

In Stock, Qty 18

0

7

Husqvarna 503887901

CAP FILTER HOLDER

$5.99

$

In Stock, Qty 9

0
