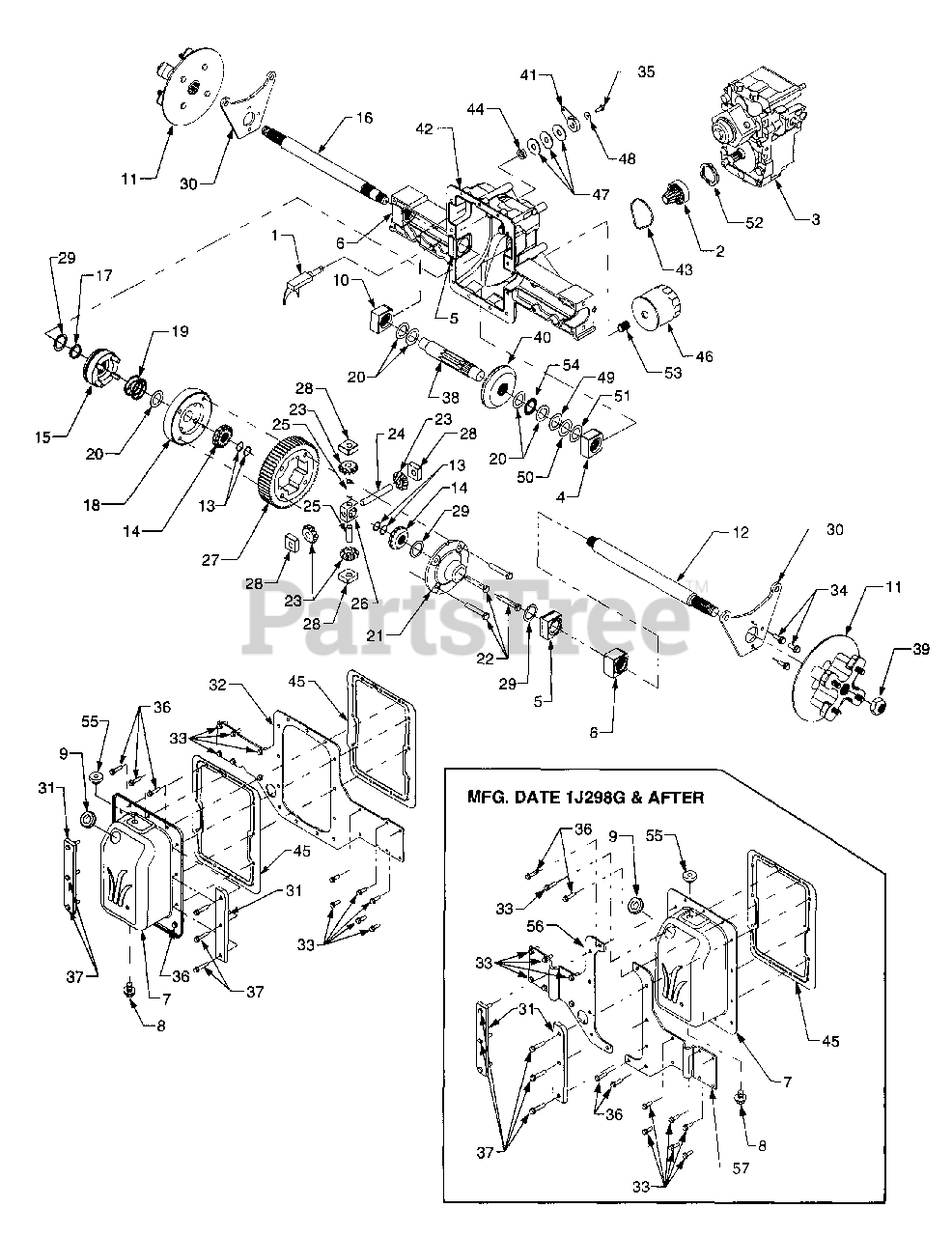

3225 (14A-688-100) - Cub Cadet Garden Tractor Transmission - Differential Parts Diagram

Garden Tractor

Transmission - Differential Parts Diagram

  • Title

Cub Cadet 618-3192

Transmission Assembly, Complete

Note: (Mfg. Date 1J288G & Before; Does NOT Include Ref. Nos. 2, 3, 11, 30, 34, 39, 43, 46, and 52)

$

$

Not available

Cub Cadet 618-3192A

Transmission Assembly, Complete

Note: (Mfg. Date 1J298G & after - Replaces 618-3192 by also ordering 710-0465 (Qty. 4), 703-3410 (Qty. 2) & 710-1506 (Qty. 4)

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz. Tube

$70.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 611-3024

Shaft, Differential Actuator

$

$

Not available

2

Cub Cadet 617-3001

Gear Assembly, Pinion 13T

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-3037

Bearing, Ball
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

3

Cub Cadet 759-3967

Hydrostatic Transmission Assy. Kit

$

$

Not available

4

Cub Cadet 618-3145

Bearing Block Assembly, Needle
(Superseded to 918-3145)

$

$

Not available

5

Cub Cadet 618-3149

Bearing Block Assembly

$

$

Not available

6

Cub Cadet 618-3150

Bearing Block Assembly

$

$

Not available

7

Cub Cadet 618-3162

Cover Assembly, Rear

Note: (Mfg. Date 1J288G & Before; Includes Ref. Nos. 8, 9 and 55)

$

$

Not available

Cub Cadet 618-3203

Cover Assembly, Rear

Note: (Mfg. Date 1J298G & After; Includes Ref. Nos. 8)

$

$

Not available

8

Cub Cadet 710-1633

Plug, Drain, M14 x 1.5 x .827

$14.99

$

In Stock, only 2 left!

0

9

Cub Cadet 735-0277

Grommet, Rubber
(Superseded to 735-0277A)

$10.99

$

In Stock, only 2 left!

0

10

Cub Cadet 618-3163

Bearing Block Assembly

$

$

Not available

11

Cub Cadet 618-3169

Hub Assembly, Wheel

$

$

Not available

12

Cub Cadet 711-1308

Axle Shaft, 15.08 Long - RH
(Superseded to 911-1308)

$200.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 716-0172

Retaining Ring
(Superseded to 916-0172)

$8.49

$

In Stock, only 3 left!

0

14

Cub Cadet 717-1119

Gear, Spur, 14T

$44.99

$

In Stock, only 3 left!

0

15

Cub Cadet 618-3155

Collar Assembly, Diff. Lock
(Superseded to 618-3155A)

$249.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-1309

Axle Shaft, 15.08 Long - LH

$233.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 716-3018

Retaining Ring

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet 718-3099A

Housing, Diff. Lock
(Superseded to 718-3099B)

$295.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-0856

Spring, Compression

$31.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0615

Washer, Thrust, 1.007 x 1.542 x .03

$8.99

$

In Stock, only 2 left!

0

21

Cub Cadet 619-3086

Housing, Diff. Cover

$77.99

$

In Stock, only 3 left!

0

22

Cub Cadet 710-1254

Hex Cap Screw, 3/8-24 x 2.25 GR8

$7.99

$

In Stock, Qty 9

0

23

Cub Cadet 717-1120

Gear, Differential 10T

$32.99

$

In Stock, only 4 left!

0

24

Cub Cadet 717-1173

Shaft, Cross, .5 x 3.485

$38.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 717-1178

Shaft, Cross, Special

$28.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 717-1180

Differential Pinion Block

$33.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 717-3466

Gear, Spur 60T

$280.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 718-3101

Block, Thrust Miter

$13.99

$

In Stock, only 2 left!

0

29

Cub Cadet 736-0558

Washer, Flat, 1.187 x 1.56 x .062

$5.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 661-3015

Bracket, Brake Mounting

$

$

Not available

31

Cub Cadet 703-3188A

Block, Transmission Cover

$

$

Not available

32

Cub Cadet 703-3316

Plate, Transmission

Note: (Mfg. Date 1J288G & Before)

$

$

Not available

33

Cub Cadet 710-0642

Screw, Hex Wash. Hd. Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0650

Screw, Hex Wash. Hd. Tapp 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 710-0788

Screw, Hex Wash. Hd. Tapp 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

37

Cub Cadet 710-0809

Screw, Hex Wash. Hd. Tapp 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

38

Cub Cadet 711-1205A

Shaft, Output 9T

$

$

Not available

39

Cub Cadet 712-0682

Nut, Lock, 7/8-14

$13.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 717-3449

Gear, Bevel 54T

$427.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 718-3089

Arm, Diff. Lock Actuator

$

$

Not available

42

Cub Cadet 759-3937

Housing, Differential w/Diff. Lock

$

$

Not available

Cub Cadet 719-3149

Housing, Differential w/Diff. Lock

Note: (Mfg. Date 1J298G & After

$

$

Not available

43

Cub Cadet 721-0261

O-Ring, 2.75 x .103

$9.99

$

In Stock, only 1 left!

0

44

Cub Cadet 721-0393

Seal, Oil

$12.99

$

In Stock, only 1 left!

0

45

Cub Cadet 721-0467

Gasket
(Superseded to 721P0467)

$49.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0208

Washer, Flat, .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

48

Cub Cadet 736-0270

Washer, Belleville, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0423

Washer, Flat Shim, 1.0 x 1.56 x .010

$

$

Not available

50

Cub Cadet 736-0424

Washer, Flat Shim, 1.0 x 1.56 x .020
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

51

Cub Cadet 736-0431

Washer, Flat Shim, 1.0 x 1.56 x .015
(Superseded to 936-0431)

$

$

Not available

52

Cub Cadet 736-0619

Washer, Spring

$18.99

$

In Stock, only 1 left!

0

53

Cub Cadet 737-3022

Fitting, Filter Nipple
(Superseded to 937-3022)

$15.99

$

In Stock, only 1 left!

0

54

Cub Cadet 741-3083

Bearing, Needle Thrust

$16.99

$

In Stock, only 1 left!

0

55

Cub Cadet 735-0279

Grommet

$7.49

$

In Stock, only 2 left!

0

56

Cub Cadet 603-0699

Plate, Trans. Support LH

$

$

Not available

57

Cub Cadet 603-0700

Plate, Trans. Support RH
(Superseded to 603-0701)

$

$

Not available

Cub Cadet 737-3120

Drive System Fluid Plus - Quart
(Superseded to 490-000-C051)

$21.99

$

In Stock, Qty 10

0

Cub Cadet 737-3121

Drive System Fluid Plus - Gallon

$77.99

$

In Stock, only 3 left!

0

$

$

Not available
