3225 (14A-688-100) - Cub Cadet Garden Tractor Hydraulic Steering Pump Parts Diagram

Garden Tractor

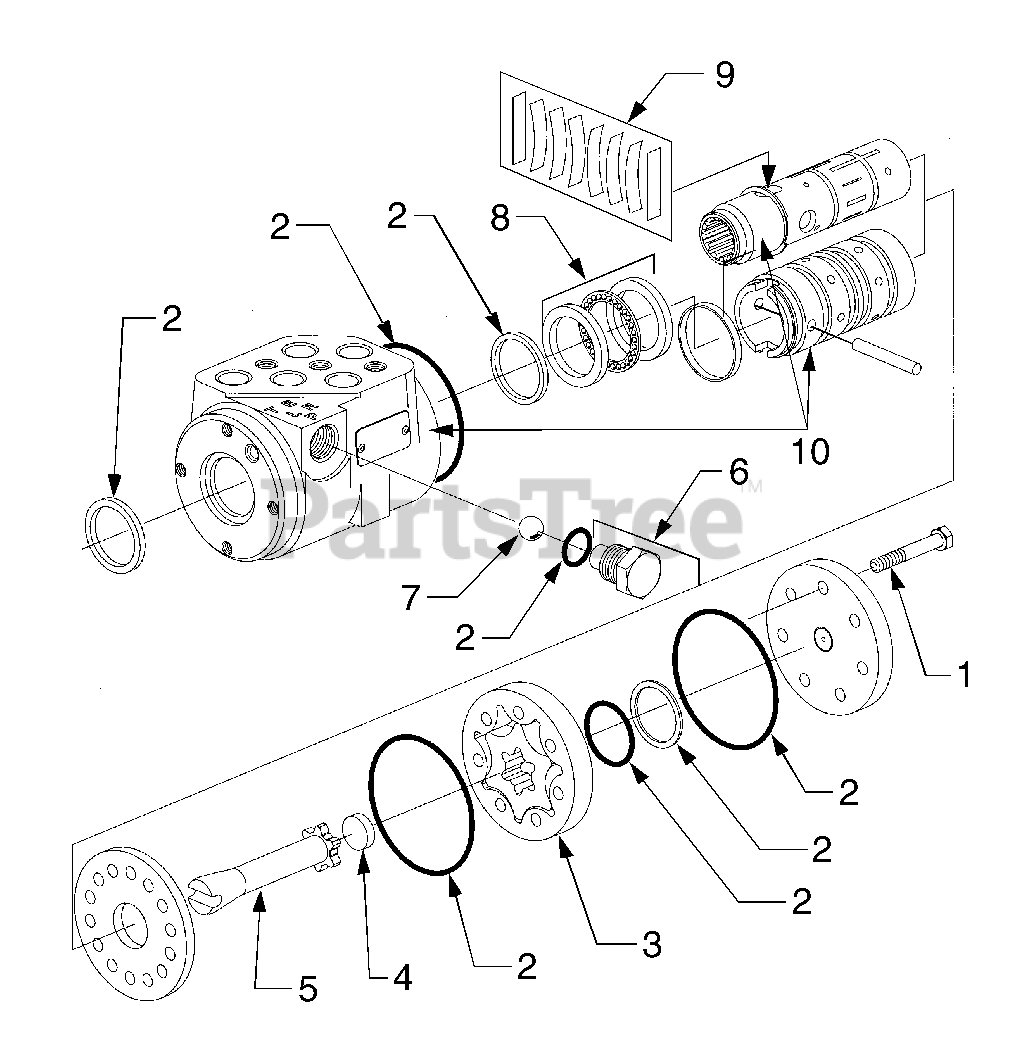

Hydraulic Steering Pump Parts Diagram

  • Title

1

Cub Cadet ET-14543-002

Screw, Hex Cap, 1.57" Lg.

$

$

Not available

2

Cub Cadet ET-64455-000

Seal Kit

Note: (Includes All Parts Marked Ref. 2)

$116.99

$

Usually ships in 3-6 days

0

3

Cub Cadet N/A

Gerotor Assembly

Note: (ET-22991-003 or ET-4996815-005 N/A, furnish 917-3442 Complete Steering Pump)

$

$

Currently unavailable

4

Cub Cadet ET-22919-005

Spacer, .240 Lg.

$

$

Not available

5

Cub Cadet ET-22918-000

Drive

$

$

Not available

6

Cub Cadet ET-9199-000

Plug, Manual Check

$

$

Not available

7

Cub Cadet ET-285020-140

Ball, Manual Check

$

$

Not available

8

Cub Cadet ET-64457-000

Bearing Kit

$

$

Not available

9

Cub Cadet ET-64456-000

Spring Kit, Centering

$

$

Not available

10

Cub Cadet N/A

Spool, Sleeve and Housing

Note: (Not Available as Replacement Parts, furnish 917-3442 Complete Steering Pump)

$

$

Currently unavailable

Cub Cadet 917-3442

Complete Steering Pump

Note: (not shown)

$

$

Not available
