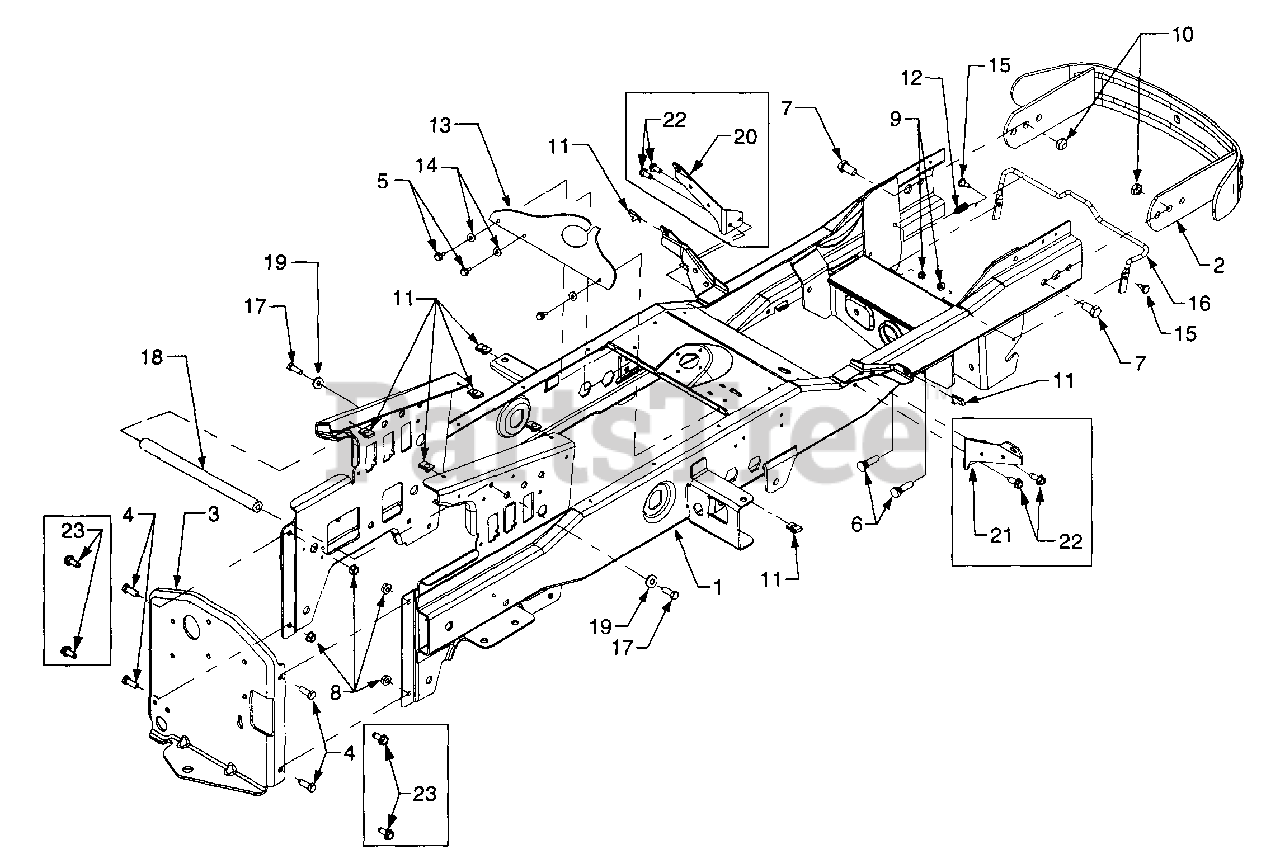

3225 (14A-688-100) - Cub Cadet Garden Tractor Frame And Hitch Plate Parts Diagram

Garden Tractor

Frame And Hitch Plate Parts Diagram

  • Title

1

Cub Cadet 603-0446-0498

Frame Assembly

Note: Mfg. Date 1J148G & Before)

$

$

Not available

Cub Cadet 603-0446A-0498

Frame Assembly

Note: Mfg. Date 1J158G & After; Replaces 603-0446 by also ordering Ref. Nos. 20 thru 23)

$

$

Not available

2

Cub Cadet 603-0463A-0498

Bumper, Front
(Superseded to 603-04252-0637)

$

$

Not available

Cub Cadet 777D00585

Graphic

$

$

Not available

3

Cub Cadet 703-2915-0498

Hitch Plate

$

$

Not available

Cub Cadet 777I20297

Graphic, Trans. Release

$

$

Not available

4

Cub Cadet 710-0514

Screw, Hex Cap 3/8-16 x 1.0 GR5

Note: (Mfg. Date 1J148G & Before)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0617

Screw, Round Hd., 3/8-24

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3131

Screw, Hex Cap 1/2-13 x 1.0 GR5

$5.49

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

Note: (Mfg. Date 1J148G & Before)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3083

Nut, Hex Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 726-0211

Speed Nut, U-Type, 5/16-18

$4.49

$

In Stock, only 1 left!

0

12

Cub Cadet 732-3002

Spring, Extension
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0

13

Cub Cadet 735-0653

Flap, Intk.

$

$

Not available

14

Cub Cadet 736-0342

Washer, Flat, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 738-0704

Shoulder Screw, .312 x .18

$17.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 747-3336

Rod, Front Latch

$35.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

18

Cub Cadet 711-1333

Shaft, Frame Brace

$

$

Not available

19

Cub Cadet 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 703-3417-0498

Bracket, Running Board LH

Note: (Mfg. Date 1J158G & After)

$

$

Not available

21

Cub Cadet 703-3418-0498

Bracket, Running Board RH
(Superseded to 703-3418-0637)

Note: (Mfg. Date 1J158G & After)

$

$

Not available

22

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

Note: (Mfg. Date 1J158G & After)

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0623

Screw, Hex Wash. Hd. Tapp 3/8-16 x .75

Note: (Mfg. Date 1J158G & After)

$4.49

$

In Stock, only 2 left!

0
