3225 (14A-688-100) - Cub Cadet Garden Tractor Crankcase And Crankshaft (76516) Parts Diagram

Garden Tractor

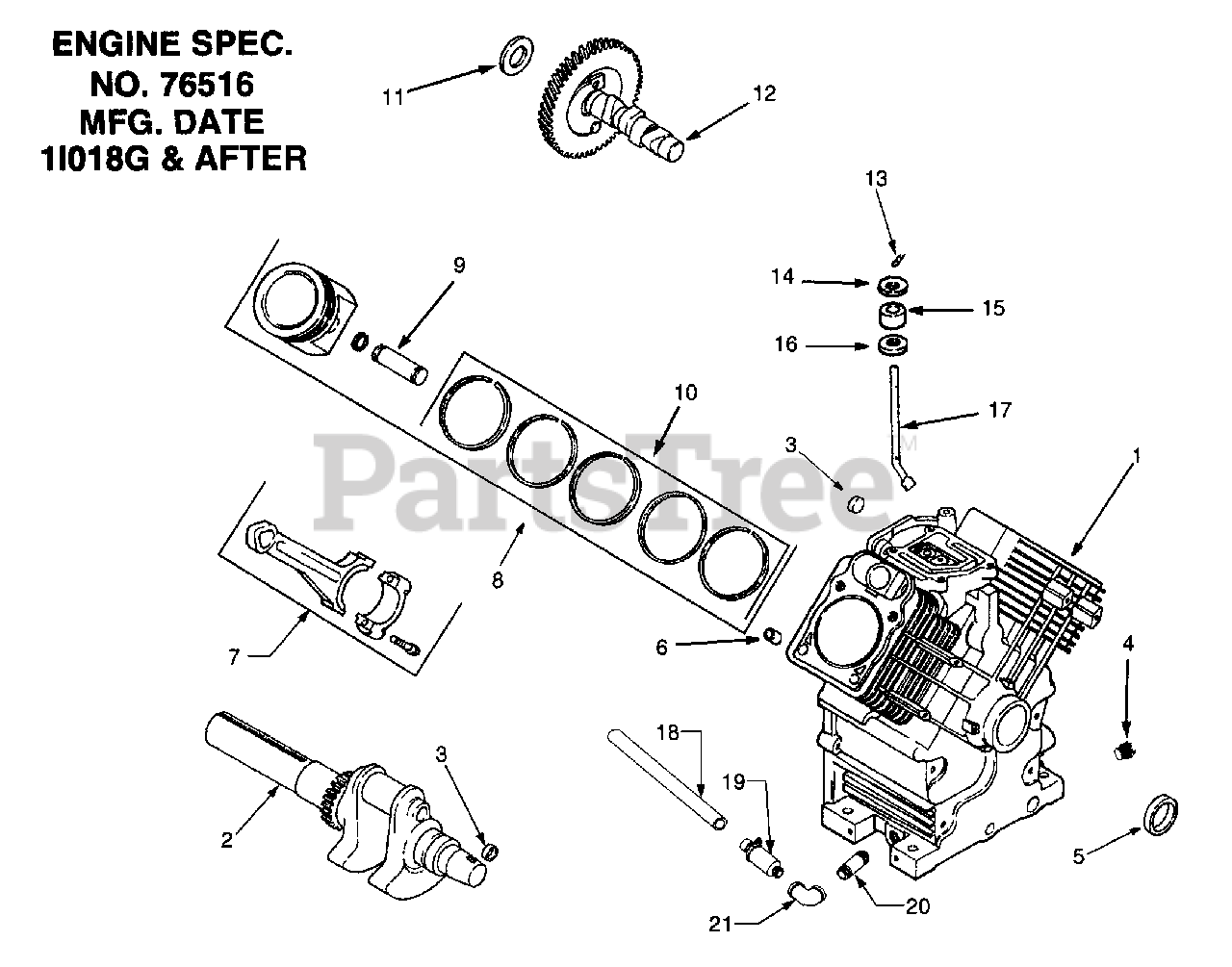

Crankcase And Crankshaft (76516) Parts Diagram

  • Title

1

Cub Cadet KH-76516

Engine, Complete

$

$

Not available

2

Cub Cadet KH-24-014-06

Crankshaft
(Superseded to KH-24-014-347-S)

Note: (Includes 3)

$575.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-X-75-10

Plug, Hex Head, 3/8 NPTF
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-032-01

Seal, Oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-12-380-17

Pin, Dowel Locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-067-13

Rod, Connecting, Std
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-067-14

Rod, Connecting, .010

$

$

Not available

8

Cub Cadet KH-24-874-09

Piston w/Ring Set, Std
(Superseded to KH-24-874-54-S)

$250.99

$

In Stock, only 3 left!

0

Cub Cadet KH-24-874-10

Piston w/Ring Set, .010
(Superseded to KH-24-874-56-S)

$289.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-874-11

Piston w/Ring Set, .020
(Superseded to KH-24-874-45-S)

$289.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-874-15

Piston w/Ring Set, .003
(Superseded to KH-24-874-43-S)

$

$

Not available

9

Cub Cadet KH-24-018-01

Retainer, Piston Pin
(Superseded to KH-24-018-01-S)

$2.99

$

In Stock, Qty 7

0

10

Cub Cadet KH-24-108-08

Ring Set, Std

$

$

Currently unavailable

Cub Cadet KH-24-108-09

Ring Set, .010

$

$

Currently unavailable

Cub Cadet KH-24-108-10

Ring Set, .020

$

$

Currently unavailable

11

Cub Cadet KH-12-422-09

Shim, Camshaft, .0320
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-13

Shim, Camshaft, .0400
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-07

Shim, Camshaft, .0280
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-08

Shim, Camshaft, .0300
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-10

Shim, Camshaft, .0340
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-11

Shim, Camshaft, .0360
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12

Shim, Camshaft, .0380
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-012-10

Camshaft
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

13

Cub Cadet KH-12-380-04

Pin, Hitch

$

$

Not available

14

Cub Cadet KH-M-0631005

Washer, Plain
(Superseded to KH-M-631005)

$

$

Not available

15

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

16

Cub Cadet KH-X-25-102

Washer, Plain
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, Qty 5

0

17

Cub Cadet KH-24-144-01

Shaft, Governor Cross

$

$

Not available

18

Cub Cadet 751-3141-12

Hose, Oil Drain 12 in.
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

19

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

Cub Cadet 751-3142

Cap, Oil Drain

$4.49

$

In Stock, Qty 14

0

20

Cub Cadet 737-0199

Pipe, Straight
(Superseded to 937-0199)

$

$

Not available

21

Cub Cadet 737-0272

Elbow, 90°.

$

$

Not available

Cub Cadet KH-24-755-03

Gasket Set
(Superseded to KH-24-755-107-S)

$143.99

$

In Stock, only 3 left!

0
