3225 (14A-688-100) - Cub Cadet Garden Tractor Blower Housing And Baffles Parts Diagram

Garden Tractor

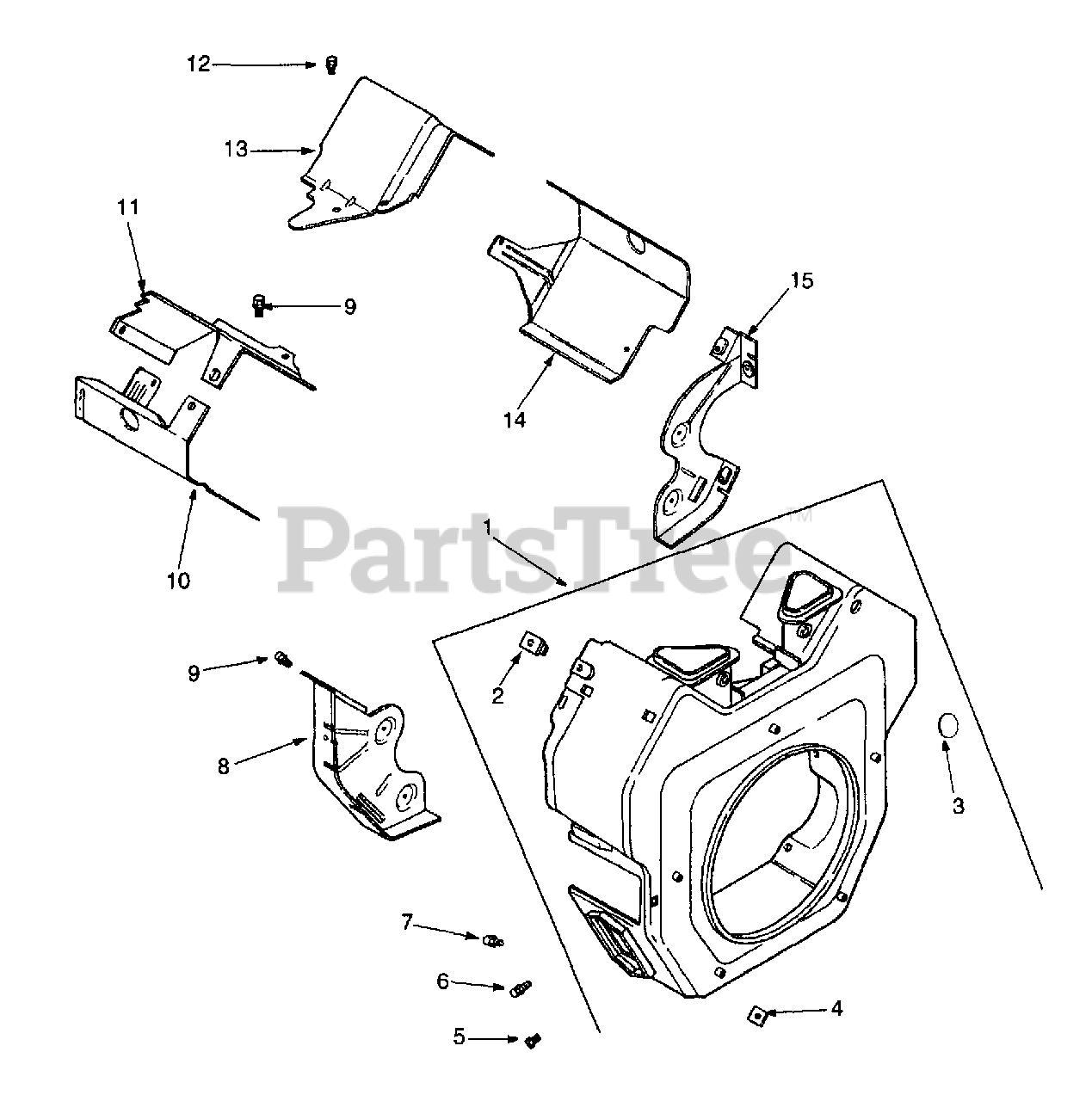

Blower Housing And Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-18

Housing, Blower

Note: (Includes 2-4; Engine Spec. No. 66549)

$

$

Not available

Cub Cadet KH-24-027-20

Housing, Blower
(Superseded to KH-24-027-477-S)

Note: (Includes 2-4; Engine Spec. No. 76516)

$111.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-24-100-02

Nut, Plastic

$

$

Not available

3

Cub Cadet KH-25-139-16

Plug, Button 9/16"

$

$

Not available

4

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

Note: (Qty. 3 - Engine Spec. No. 76516)

$2.49

$

In Stock, Qty 13

0

5

Cub Cadet KH-M-0551016

Screw, Hex Flange M5 x 0.8 x 16

$

$

Not available

6

Cub Cadet KH-M-0545016

Screw, Hex Flange M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

Note: (Qty. 3 - Engine Spec. No. 76516)

$2.49

$

In Stock, Qty 15

0

7

Cub Cadet KH-M-0545020

Screw, Hex Flange M5 x 0.8 x 20

Note: (Engine Spec. No. 66549)

$

$

Not available

Cub Cadet KH-M-0567020

Screw, Hex Flange M5 x 0.8 x 20

Note: (Engine Spec. No. 76516)

$

$

Not available

8

Cub Cadet KH-24-146-02

Plate, Backing #2 Side
(Superseded to KH-24-146-16-S)

$

$

Not available

9

Cub Cadet KH-M-0645016

Screw, Hex Flange M6 x 1.0 x 16
(Superseded to KH-M-645016-S)

$3.99

$

In Stock, Qty 15

0

10

Cub Cadet KH-24-063-20

Baffle, Cyl. Barrel #2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-063-17

Baffle, Valley #2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-0545010

Screw, Hex Flange M5 x 0.8 x 10

$

$

Not available

13

Cub Cadet KH-24-063-24

Baffle, Valley #1 Side
(Superseded to KH-24-063-93-S)

$

$

Not available

14

Cub Cadet KH-24-063-08

Baffle, Cyl. Barrel #1 Side
(Superseded to KH-24-063-85-S)

Note: (Engine Spec. No. 66549)

$17.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-063-30

Baffle, Cyl. Barrel #1 Side

Note: (Engine Spec. No. 76516)

$

$

Not available

15

Cub Cadet KH-24-146-08

Plate, Backing #1 Side

$

$

Not available
