322 R - Husqvarna String Trimmer (1999-03) Piston & Cylinder Assembly Parts Diagram

String Trimmer

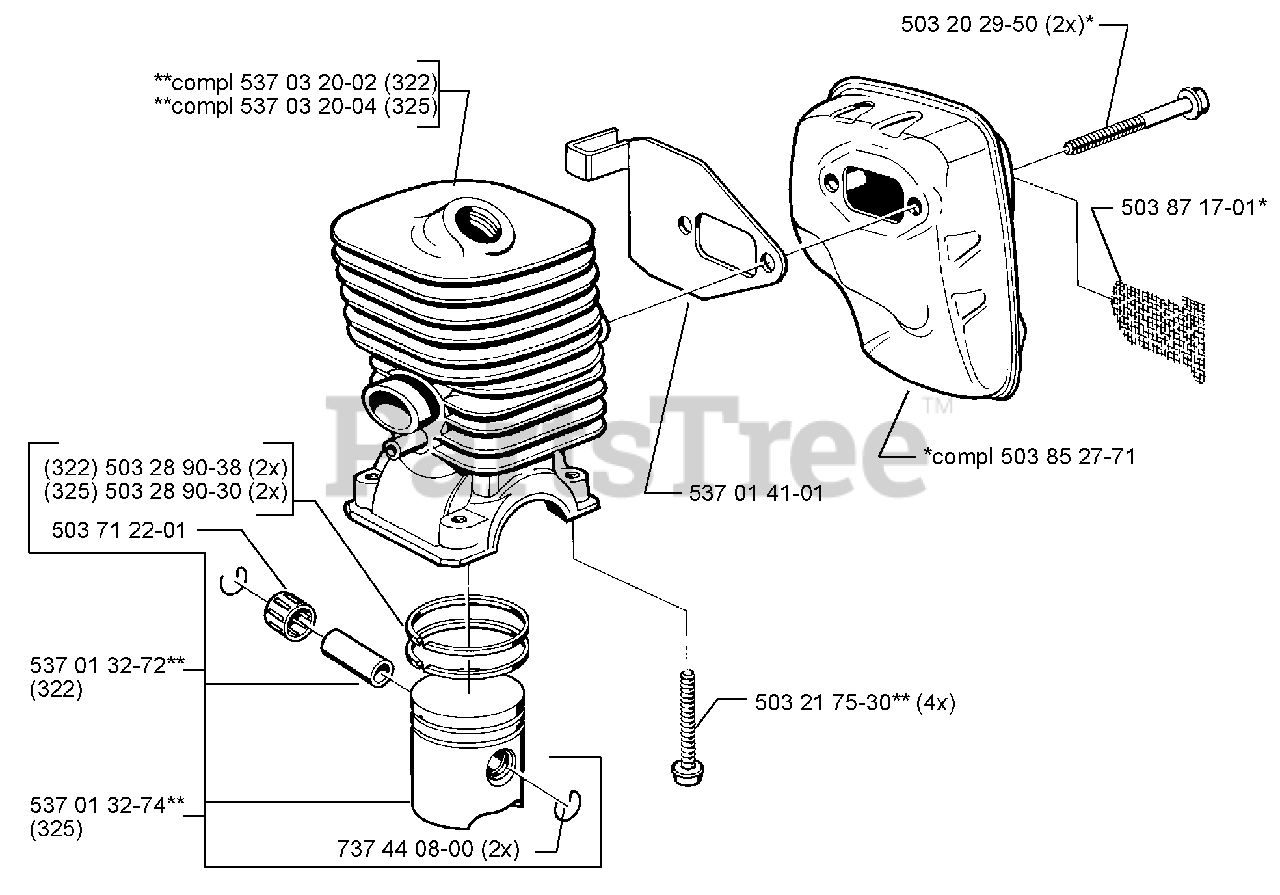

Piston & Cylinder Assembly Parts Diagram

  • Title

537032002

Husqvarna 537032002

CYLINDER

$

$

Not available

537032004

Husqvarna 537032004

CYLINDER
(Superseded to 537032008)

$148.99

$

Usually ships in 3-10 days

0

503289038

Husqvarna 503289038

PISTON RING

$17.99

$

Usually ships in 3-10 days

0

503289030

Husqvarna 503289030

PISTON RING
(Superseded to 503289041)

$17.99

$

In Stock, only 3 left!

0

503712201

Husqvarna 503712201

BEARING

$13.99

$

Usually ships in 3-10 days

0

537013272

Husqvarna 537013272

PISTON

$

$

Not available

537013274

Husqvarna 537013274

PISTON ASSY
(Superseded to 537405902)

$79.99

$

In Stock, only 1 left!

0

737440800

Husqvarna 737440800

CLIP RING

$3.49

$

Usually ships in 3-10 days

0

503217530

Husqvarna 503217530

SCREW

$

$

Not available

537014101

Husqvarna 537014101

GASKET

$4.99

$

In Stock, Qty 9

0

503852771

Husqvarna 503852771

MUFFLER
(Superseded to 537039405)

$148.99

$

In Stock, Qty 5

0

503871701

Husqvarna 503871701

SCREEN

$85.99

$

Usually ships in 3-10 days

0

503202950

Husqvarna 503202950

SCREW

$4.99

$

Usually ships in 3-10 days

0
