322 C (968042102) - Husqvarna String Trimmer (1999-03) IGNITION SYSTEM & CLUTCH Parts Diagram

String Trimmer

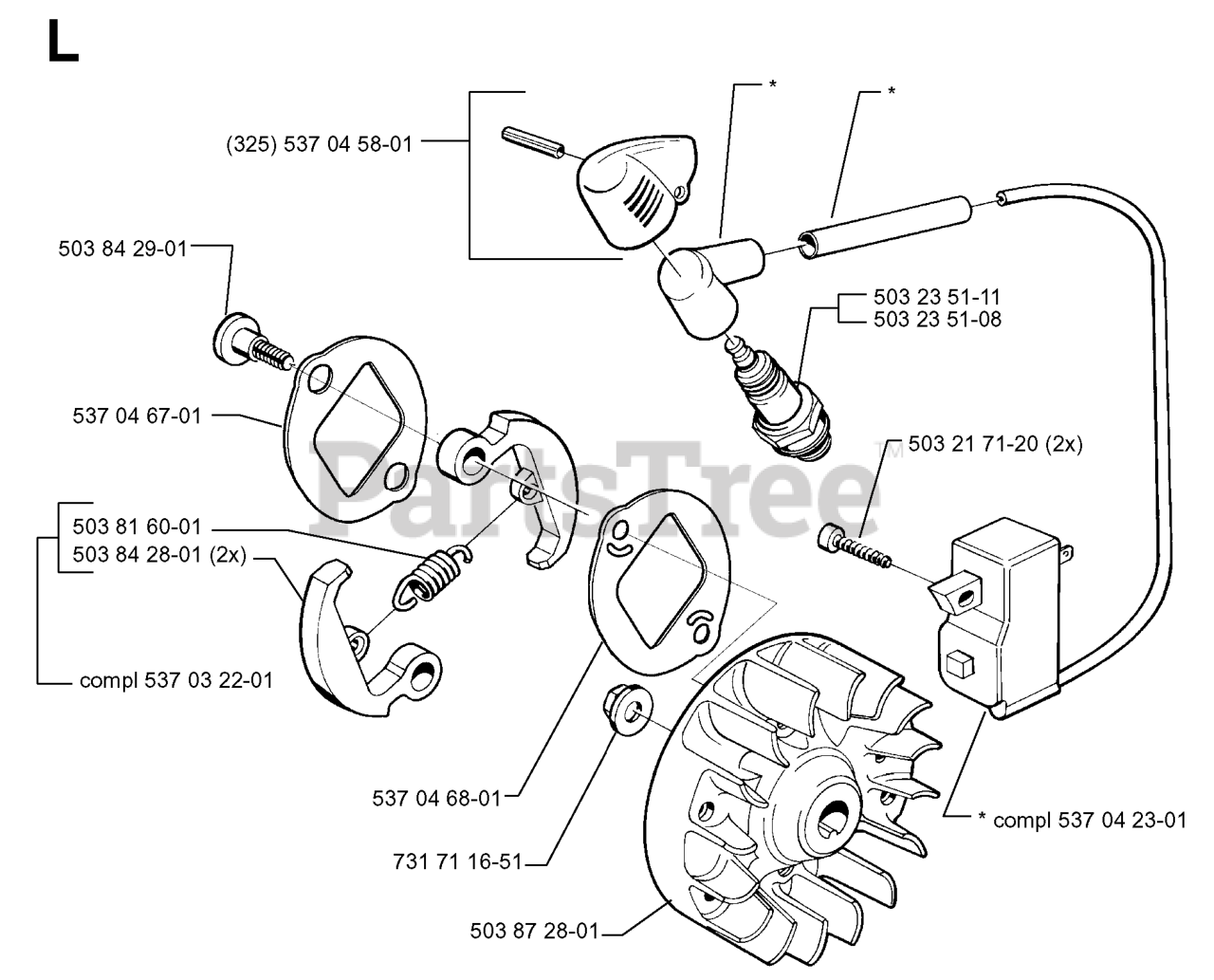

IGNITION SYSTEM & CLUTCH Parts Diagram

  • Title
537 04 58-01

Husqvarna 537045801

COVER

Note: 325

$5.99

$

In Stock, only 1 left!

0

537 03 22-01

$66.99

$

In Stock, only 1 left!

0

503 81 60-01

$6.99

$

In Stock, Qty 9

0

503 84 29-01

Husqvarna 503842901

SCREW
(Superseded to 503842902)

$4.99

$

In Stock, only 3 left!

0

731 71 16-51

Husqvarna 731711651

FLANGE NUT

$7.49

$

In Stock, only 2 left!

0

537 04 67-01

Husqvarna 537046701

WASHER
(Superseded to 537046702)

$5.99

$

Usually ships in 3-10 days

0

503 21 71-20

Husqvarna 503217120

SCREW
(Superseded to 503216618)

Note: 2X

$7.49

$

In Stock, Qty 5

0

537 04 23-01

Husqvarna 537042301

IGNITION MODULE-MB20-1

$102.99

$

In Stock, Qty 5

0

503 87 28-01

Husqvarna 503872801

FLYWHEEL
(Superseded to 537249602)

$87.99

$

Usually ships in 3-10 days

0

537 04 68-01

Husqvarna 537046801

WASHER
(Superseded to 537046802)

$8.99

$

In Stock, only 1 left!

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

503 84 28-01

Husqvarna 503842801

CLUTCH

Note: 2X

$17.99

$

In Stock, only 1 left!

0

503 23 51-11

Husqvarna 503235111

SPARK PLUG M14X1.25 NGK BPMR7A

$3.49

$

In Stock, Qty 20+

0
