3210 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1959) MODEL C-22 ENGINE PARTS LIST Parts Diagram

Walk-Behind Mower

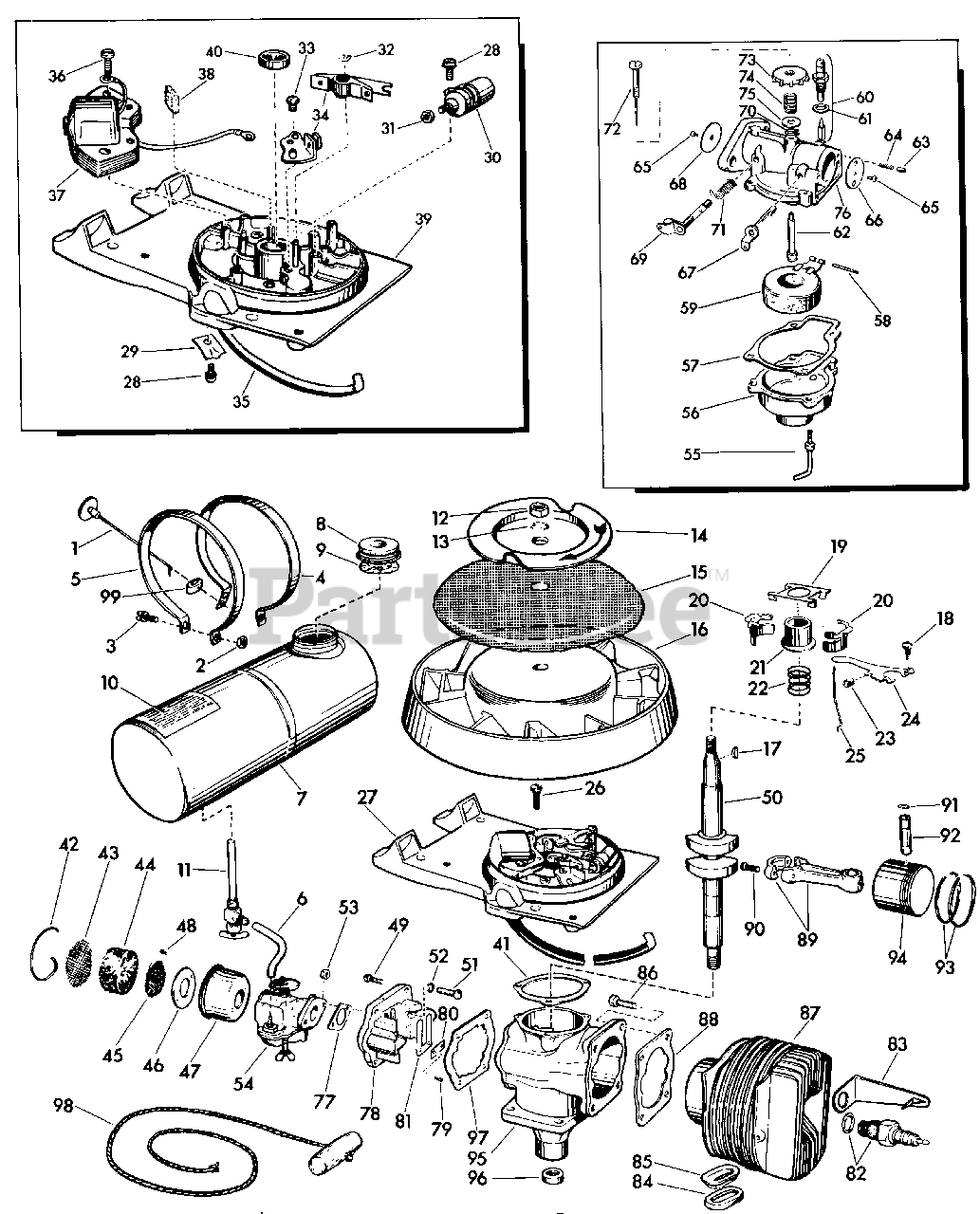

MODEL C-22 ENGINE PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 677379

Choke Knob Assembly

$

$

Not available

2

Lawn-Boy 71A1341

Nut-Tank Strap Screw

$

$

Currently unavailable

3

Lawn-Boy 602065

Screw-Tank Strap

$

$

Currently unavailable

4

Lawn-Boy 602894

Strap-Gas Tank, Left

$

$

Currently unavailable

5

Lawn-Boy 602893

Strap-Gas Tank, Right

$

$

Currently unavailable

6

Lawn-Boy 602253

Line-Gas

$

$

Not available

7

Lawn-Boy 677014

Gas Tank Assembly

$

$

Not available

8

Lawn-Boy 677081

Cap and Gasket Assembly

$

$

Currently unavailable

9

Lawn-Boy 602059

Gasket-Tank Cap

$

$

Not available

10

Lawn-Boy 602878

Decal-Gas Tank (Operating Instructions)

$

$

Not available

11

Lawn-Boy 677052

Shut-off Valve and Screen Assembly

$22.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 130981

Nut-Flywheel

$

$

Not available

13

Lawn-Boy 304161

Washer-Lock, Flywheel

$

$

Not available

14

Lawn-Boy 602010

Pulley-Starter

$

$

Currently unavailable

15

Lawn-Boy 603051

Screen-Flywheel

$

$

Currently unavailable

16

Lawn-Boy 677334

Flywheel Assembly

$

$

Not available

17

Lawn-Boy 120395

Key-Woodruff, Flywheel
(Superseded to 607199)

$4.99

$

In Stock, Qty 9

0

18

Lawn-Boy 602640

Screw-Governor

$

$

Not available

Lawn-Boy 677674

Governor Assembly

$

$

Not available

19

Lawn-Boy 602635

Yoke-Governor

$

$

Not available

20

Lawn-Boy 602636

Weight-Governor

$

$

Not available

21

Lawn-Boy 602634

Collar-Governor

$21.99

$

In Stock, only 3 left!

0

22

Lawn-Boy 603415

Spring-Governor

$

$

Currently unavailable

23

Lawn-Boy 602639

Block-Wear, Governor

$2.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 677294

Governor Lever and Wear Block Assembly

$19.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 602638

Rod-Governor

$

$

Not available

26

Lawn-Boy 603294

Screw-Crankcase to Armature Plate

$

$

Not available

27

Lawn-Boy 677471

Armature Plate Assembly

$

$

Not available

28

Lawn-Boy 602651

Screw-Condenser and Clamp Mounting
(Superseded to 604344)

$

$

Not available

29

Lawn-Boy 602454

Clamp-High Tension Lead

$

$

Not available

30

Lawn-Boy 677299

Condenser Assembly

$

$

Not available

31

Lawn-Boy 133079

Nut-Condenser Terminal

$2.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 71A1052

Clip-Spring, Breaker Post

$

$

Currently unavailable

33

Lawn-Boy 302812

Screw-Breaker Base

$

$

Not available

34

Lawn-Boy 677254

Breaker Base and Arm Assembly

$52.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 677699

High Tension Lead Assembly

$

$

Not available

36

Lawn-Boy 510195

Screw-Lamination Mounting

$

$

Not available

37

Lawn-Boy 580184

Coil and Lamination Assy

$

$

Not available

38

Lawn-Boy 510189

Wick-Oiler

$

$

Currently unavailable

39

Lawn-Boy 677397

Armature Plate, Post, Bearing and Oil Seal Assy

$

$

Not available

40

Lawn-Boy 602632

Seal-Oil
(Superseded to 611396)

$5.99

$

In Stock, Qty 6

0

41

Lawn-Boy 602590

Gasket-Crankcase to Armature Plate, .005 in.

Note: 677481 Gasket Set

$

$

Not available

41

Lawn-Boy 602763

Gasket-Crankcase to Armature Plate, .010 in.

Note: 677481 Gasket Set

$1.99

$

In Stock, only 2 left!

0

Lawn-Boy 677080

Air Filter Assembly

$

$

Not available

42

Lawn-Boy 602018

Clip-Air Filter

$

$

Not available

43

Lawn-Boy 602017

Screen-Air Filter (Large)

$

$

Not available

44

Lawn-Boy 602016

Element-Air Filter

$5.49

$

In Stock, only 2 left!

0

45

Lawn-Boy 602015

Screen-Air Filter (Small)

$9.49

$

Usually ships in 3-6 days

0

46

Lawn-Boy 602724

Plate-Back-up, Filter Cup

$4.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 602014

Cup-Air Filter

$

$

Not available

48

Lawn-Boy 602594

Screw-Air Filter

$

$

Not available

49

Lawn-Boy 602192

Screw-Reed Plate to Crankcase

$8.49

$

Usually ships in 3-6 days

0

50

Lawn-Boy 603138

Crankshaft

$

$

Currently unavailable

51

Lawn-Boy 132492

Screw-Reed Plate to Carburetor

$

$

Not available

52

Lawn-Boy 303630

Washer-Reed Plate to Carburetor Screw

$

$

Not available

53

Lawn-Boy 602201

Nut-Stop, Reed Plate to Carburetor Screw

$

$

Not available

54

Lawn-Boy 677396

Carburetor Assembly

$

$

Not available

55

Lawn-Boy 603169

Screw-Wing

$

$

Not available

56

Lawn-Boy 602712

Float Chamber

$

$

Not available

57

Lawn-Boy 602850

Gasket-Carburetor Body to Float Chamber
(Superseded to 98-1362)

Note: 677271 Carburetor Repair Kit

$2.99

$

In Stock, Qty 20+

0

58

Lawn-Boy 300096

Pin-Float Arm Hinge
(Superseded to 92-6389)

Note: 677271 Carburetor Repair Kit

$5.49

$

In Stock, only 1 left!

0

59

Lawn-Boy 375919

Float and Arm Assembly
(Superseded to 678113)

$

$

Not available

60

Lawn-Boy 486218

Float Valve, Seat and Washer Assembly
(Superseded to 678736)

Note: 677271 Carburetor Repair Kit

$

$

Not available

61

Lawn-Boy 301996

Washer-Float Valve Seat

$3.49

$

Usually ships in 3-6 days

0

62

Lawn-Boy 601096

Nozzle

Note: 677271 Carburetor Repair Kit

$

$

Not available

63

Lawn-Boy 601098

Plug-Choke Friction

$

$

Not available

64

Lawn-Boy 601097

Spring-Choke, Friction

$

$

Not available

65

Lawn-Boy 53X220

Screw-Choke and Throttle Disc

Note: 677271 Carburetor Repair Kit

$

$

Currently unavailable

66

Lawn-Boy 603115

Disc-Choke

$

$

Not available

67

Lawn-Boy 677090

Choke Shaft and Lever Assembly

$

$

Not available

68

Lawn-Boy 602290

Disc-Throttle

$

$

Not available

69

Lawn-Boy 677637

Throttle Shaft Assembly

$

$

Not available

70

Lawn-Boy 603292

Grip-Ring

$

$

Not available

71

Lawn-Boy 602685

Spring-Throttle Shaft

Note: 677271 Carburetor Repair Kit

$

$

Not available

72

Lawn-Boy 677039

Needle Assembly

$

$

Not available

73

Lawn-Boy 602495

Knob-Needle Valve

$7.99

$

In Stock, only 1 left!

0

74

Lawn-Boy 602293

Spring-Needle Adjustment

$

$

Currently unavailable

75

Lawn-Boy 306561

Washer-Needle Adjustment

$

$

Currently unavailable

76

Lawn-Boy 603488

Carburetor Body

$

$

Not available

77

Lawn-Boy 602052

Gasket-Carburetor

Note: 677481 Gasket Set

$3.49

$

In Stock, Qty 19

0

78

Lawn-Boy 677362

Reed Plate Assembly

$

$

Not available

79

Lawn-Boy 303761

Screw-Reed to Reed Plate
(Superseded to 612872)

$2.49

$

In Stock, Qty 5

0

80

Lawn-Boy 602587

Plate-Back-up, Reed

$2.99

$

Usually ships in 3-6 days

0

81

Lawn-Boy 602588

Reed

$

$

Not available

82

Lawn-Boy 602721

Spark Plug and Gasket

$

$

Currently unavailable

83

Lawn-Boy 602798

Lever-Stop

$

$

Not available

84

Lawn-Boy 602644

Gasket-Exhaust

Note: 677481 Gasket Set

$

$

Not available

85

Lawn-Boy 602717

Sleeve-Exhaust Gasket

$2.99

$

In Stock, Qty 15

0

86

Lawn-Boy 603293

Screw-Cylinder to Crankcase

$

$

Not available

87

Lawn-Boy 677226

Cylinder and Sleeve Assembly

$

$

Currently unavailable

88

Lawn-Boy 603038

Gasket-Cylinder to Crankcase

Note: 677481 Gasket Set

$

$

Not available

Lawn-Boy 676077

Piston and Connecting Rod Assembly

$

$

Not available

89

Lawn-Boy 676078

Connecting Rod Assembly

$

$

Not available

90

Lawn-Boy 603148

Screw-Connecting Rod

$

$

Currently unavailable

91

Lawn-Boy 120110

Ring-Spring

$

$

Not available

92

Lawn-Boy 303333

Pin-Wrist

$

$

Not available

93

Lawn-Boy 601006

Ring-Piston

$

$

Currently unavailable

94

Lawn-Boy 601134

Piston

$

$

Not available

95

Lawn-Boy 677544

Crankcase, Oil Seal and Reed Plate Gasket Assembly

$

$

Not available

96

Lawn-Boy 602632

Seal-Oil
(Superseded to 611396)

$5.99

$

In Stock, Qty 6

0

97

Lawn-Boy 602841

Gasket-Reed Plate to Crankcase

Note: 677481 Gasket Set

$

$

Not available

98

Lawn-Boy 677120

Rope-Starter

$

$

Not available

99

Lawn-Boy 603179

Block-Friction, Choke Knob

$

$

Currently unavailable
