321 R (31A-142-101) - Cub Cadet 21" Snow Thrower (1998) Shave Plate & Chute/Frame Assembly Parts Diagram

21" Snow Thrower

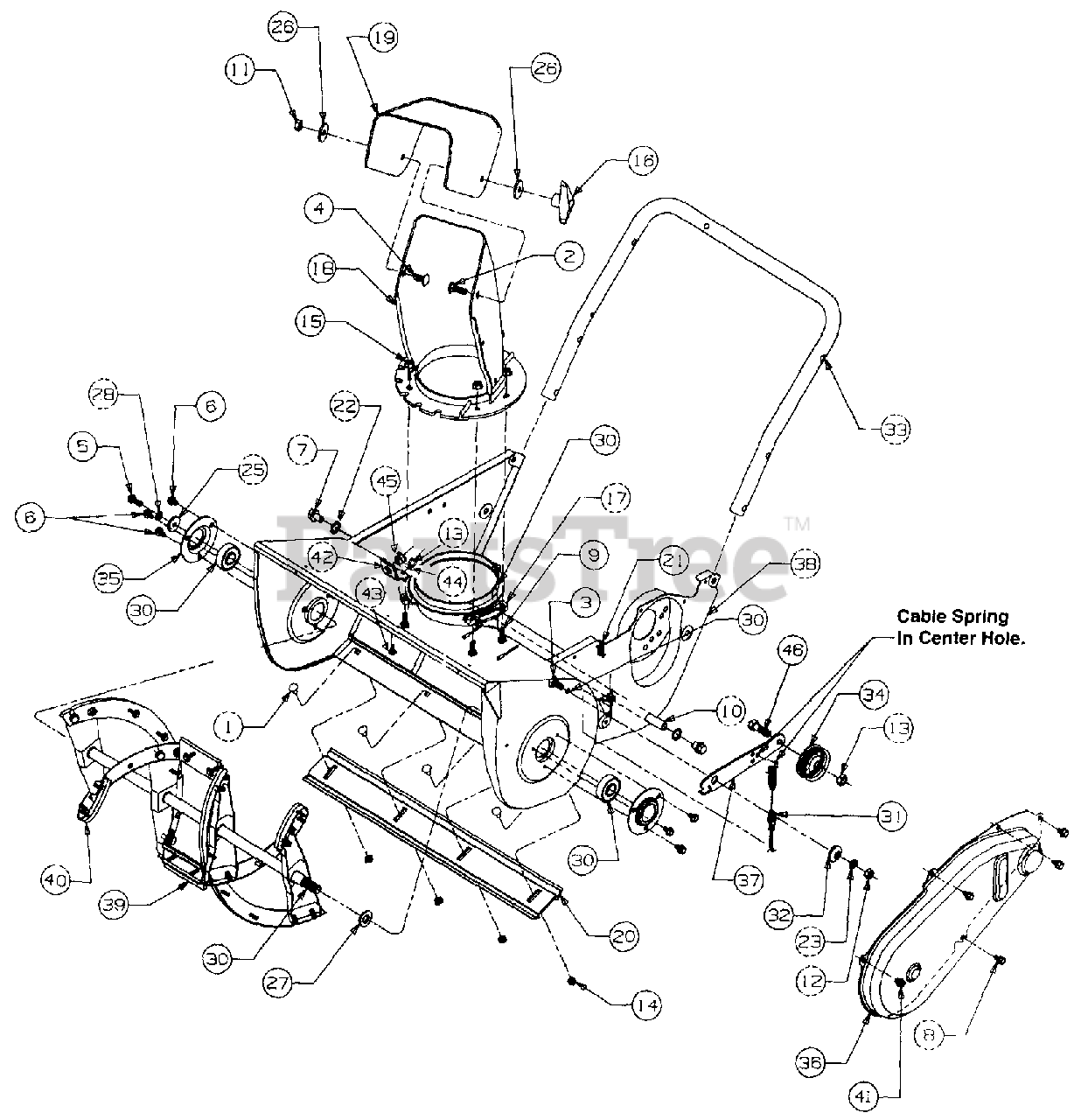

Shave Plate & Chute/Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0167

Bolt - Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0276

Bolt - Carriage

$3.99

$

In Stock, Qty 10

0

3

Cub Cadet 710-0323

Screw - Pan Head

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0451

Bolt - Carriage

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0642

Screw - Hex Washer

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1005

Screw - Hex Washer
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0773

Screw - Hex Washer

$7.49

$

In Stock, only 3 left!

0

8

Cub Cadet 710-0896

Screw - Hex Washer

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3015

Screw - Hex Cap

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0848A

Axle
(Superseded to 753-05480)

$

$

Not available

11

Cub Cadet 712-0429

Nut - Hex Center Lock

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3010

Nut - Hex

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0116

Nut - Hex Lock

$4.99

$

In Stock, Qty 6

0

14

UNKNOWN

$

$

Not available

15

Cub Cadet 712-3027

Nut - Hex Lock Flanged
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

16

Cub Cadet 720-0284

Knob

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-0851A

Keeper - Chute

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-0915B

Chute - Lower
(Superseded to 731-0915C)

$

$

Not available

19

Cub Cadet 731-0921

Chute - Upper
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

20

Cub Cadet 731-1033

Shave Plate

$47.99

$

In Stock, Qty 14

0

21

Cub Cadet 732-0357A

Spring - Extension

$4.49

$

In Stock, Qty 13

0

22

Cub Cadet 736-0108

Washer - Flat

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0176

Washer - Flat

$4.99

$

In Stock, only 4 left!

0

26

Cub Cadet 736-0159

Washer

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0326

Washer - Flat

$4.49

$

In Stock, only 4 left!

0

28

Cub Cadet 736-0329

Washer - Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

Cub Cadet 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

31

Cub Cadet 746-0910A

Cable - Clutch
(Superseded to 946-0910A)

$29.99

$

In Stock, Qty 18

0

32

Cub Cadet 748-0234

Spacer - Shoulder

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 749-0796

Handle - Lower

Variations

Cub Cadet 749-0796-0637

LOWER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 756-0313

Idler - Flat

$26.99

$

In Stock, Qty 5

0

35

Cub Cadet 784-5174

Cup - Bearing
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

36

Cub Cadet 784-5176-0498

Cover - Belt
(Superseded to 790-00045C)

$46.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 784-5175B

Bracket - Idler/Brake
(Superseded to 753-05156)

Variations

Cub Cadet 784-5175B-0637

USE 753-05156 KIT:IDLER SINGL - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 684-0114-0498

Housing - Blower

$

$

Not available

39

Cub Cadet 784-5485-0498

Auger Ass'y. Comp.
(Superseded to 984-04027A)

$196.99

$

In Stock, Qty 10

0

40

Cub Cadet 753-0613

Auger Rubber Replacement

$130.99

$

In Stock, Qty 5

0

41

Cub Cadet 710-0352

Screw - Hex Washer

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 784-5720

Bracket - Crank
(Superseded to 784-5720-0637)

Variations

Cub Cadet 784-5720-0637

BRACKET CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

43

Cub Cadet 710-0451

Screw - Cap

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 710-0459

Screw - Cap
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0
