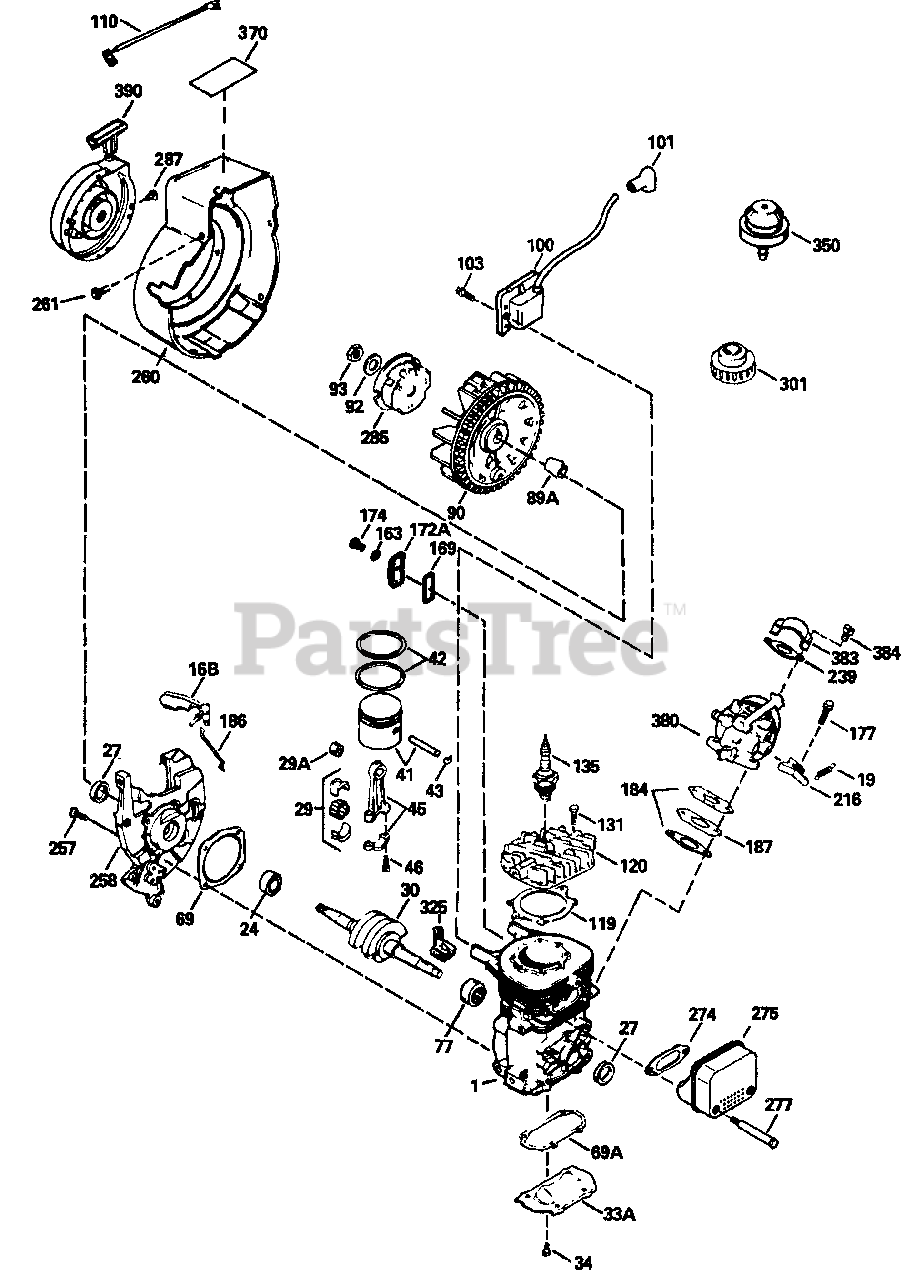

321 R (31A-142-100) - Cub Cadet 21" Snow Thrower Engine (1998) Engine Assembly & Muffler Parts Diagram

21" Snow Thrower Engine

Engine Assembly & Muffler Parts Diagram

  • Title

1

Cylinder

Note: (Order S/B if needed)

$

$

Not available

16B

Cub Cadet TC-490291A

Air Vane

$3.99

$

In Stock, only 4 left!

0

19

Cub Cadet TC-570707

Extension Spring

$3.99

$

In Stock, Qty 8

0

24

Cub Cadet TC-530110

Ball Bearing
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

27

Cub Cadet TC-510319

Oil Seal

$7.49

$

In Stock, Qty 7

0

29

Cub Cadet TC-530150

Needle Bearing & Liner Set

$36.99

$

Usually ships in 3-12 days

0

29A

Cub Cadet TC-530104A

Cartridge Bearing

$15.99

$

In Stock, only 1 left!

0

30

Cub Cadet TC-290609

Crankshaft

$

$

Not available

33A

Cub Cadet TC-570644

Cover Plate

$7.49

$

In Stock, only 1 left!

0

34

Cub Cadet TC-650579

Screw, Torx T-25, 10-24 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

41

Cub Cadet TC-310283A

Piston & Ring Ass'y

$33.99

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-310190

Ring Set
(Superseded to TC-310289A)

$14.99

$

In Stock, only 2 left!

0

43

Cub Cadet TC-310167

Piston Ring Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

Cub Cadet TC-310235B

Connecting Rod Ass'y

Note: (Incl. 29, 29A & 46)

$

$

Not available

46

Cub Cadet TC-650633

Connecting Rod Bolt

$1.99

$

In Stock, only 2 left!

0

69

Cub Cadet TC-510292A

Cylinder Cover Gasket

$3.99

$

Usually ships in 3-12 days

0

69A

Cub Cadet TC-510323A

Cover Plate Gasket

$6.99

$

In Stock, only 1 left!

0

77

Cub Cadet TC-530105

Cartridge Bearing

$11.99

$

Usually ships in 3-12 days

0

89A

Cub Cadet TC-611032

Adapter Sleeve

$8.49

$

Usually ships in 3-12 days

0

90

Cub Cadet TC-611066

Flywheel

$74.99

$

In Stock, only 1 left!

0

92

Cub Cadet TC-650815

Bell Washer

$1.99

$

In Stock, Qty 10

0

93

Cub Cadet TC-650390

Flywheel Nut

$1.99

$

In Stock, only 3 left!

0

100

Cub Cadet TC-34443A

Solid State Ignition
(Superseded to TC-34443D)

Note: (Incl. 101)

$44.99

$

Usually ships in 3-12 days

0

101

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 2 left!

0

103

Cub Cadet TC-650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to TC-651007)

$1.99

$

In Stock, only 4 left!

0

110

Cub Cadet TC-611130

Ground Wire

$

$

Not available

119

Cub Cadet TC-510274A

Cylinder Head Gasket

$1.99

$

In Stock, Qty 8

0

120

Cub Cadet TC-250240B

Cylinder Head

$35.99

$

Usually ships in 3-12 days

0

131

Cub Cadet TC-650477

Screw, Torx T-30, 1/4-20 x 3/4"

$1.99

$

In Stock, Qty 20+

0

135

Cub Cadet 759-3331

Resistor Spark Plug

$3.99

$

In Stock, only 2 left!

0

163

Cub Cadet TC-650838

Washer

$

$

Not available

169

Cub Cadet TC-510325A

Cover Plate Gasket

$1.99

$

In Stock, only 4 left!

0

172A

Cub Cadet TC-570708

Compression Release Cover

$5.49

$

Usually ships in 3-12 days

0

174

Cub Cadet TC-650579

Screw, Torx T-25, 10-24 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

177

Cub Cadet TC-650959

Screw, 5/32 Allen, 1/4-20 x 5/8"

$1.99

$

In Stock, Qty 8

0

184

Cub Cadet TC-510326A

Carburetor Gasket

$1.49

$

In Stock, only 3 left!

0

186

Cub Cadet TC-490322

Governor Link

$

$

Not available

187

Cub Cadet TC-570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

216

Cub Cadet TC-570645

RPM Adjuster Lever

$

$

Not available

239

Cub Cadet TC-35815

Air Cleaner Gasket

$1.49

$

In Stock, Qty 20+

0

257

Cub Cadet TC-650911

Screw, Torx T-30, 1/4-20 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

258

Cub Cadet TC-350422

Blower Housing Base

Note: (Incl. 27)

$

$

Not available

260

Cub Cadet TC-350437

Blower Housing

$

$

Not available

261

Cub Cadet TC-650737

Screw, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 6

0

274

Cub Cadet TC-510207A

Exhaust Gasket

$5.49

$

Usually ships in 3-12 days

0

275

Cub Cadet TC-390330

Muffler

Note: (Incl. 274 & 277)

$

$

Not available

277

Cub Cadet TC-650869

Screw, 1/4-20 x 2-3/4"

$3.99

$

Usually ships in 3-12 days

0

285

Cub Cadet TC-590551

Starter Cup

$

$

Not available

287

Cub Cadet TC-650926

Screw, 8-20 x 21/64"

$1.49

$

In Stock, only 3 left!

0

301

Cub Cadet TC-410240

Fuel Cap

$9.49

$

Usually ships in 3-12 days

0

325

Cub Cadet TC-29443

Wire Clip

$1.99

$

In Stock, only 4 left!

0

350

Cub Cadet TC-570682

Primer Ass'y
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 5

0

370

Cub Cadet TC-35977

Instruction Decal

$2.49

$

In Stock, Qty 6

0

380

Cub Cadet TC-632410B

Carburetor
(Superseded to TC-640092A)

Note: (Incl. 184)

$107.99

$

Usually ships in 3-12 days

0

383

Cub Cadet TC-570434

Spit Cup

$10.99

$

Usually ships in 3-12 days

0

384

Cub Cadet TC-650229

Screw, Torx T-25, 10-32 x 3/8"

$1.99

$

Usually ships in 3-12 days

0

390

Cub Cadet TC-590652

Rewind Starter
(Superseded to TC-590787)

$53.99

$

In Stock, only 1 left!

0

?400

Cub Cadet TC-510324B

Gasket Set,

Note: Includes one of each: TC-510292A, TC-510323A, TC-510274A, TC510325A, TC-510207A

$9.49

$

In Stock, Qty 10

0
