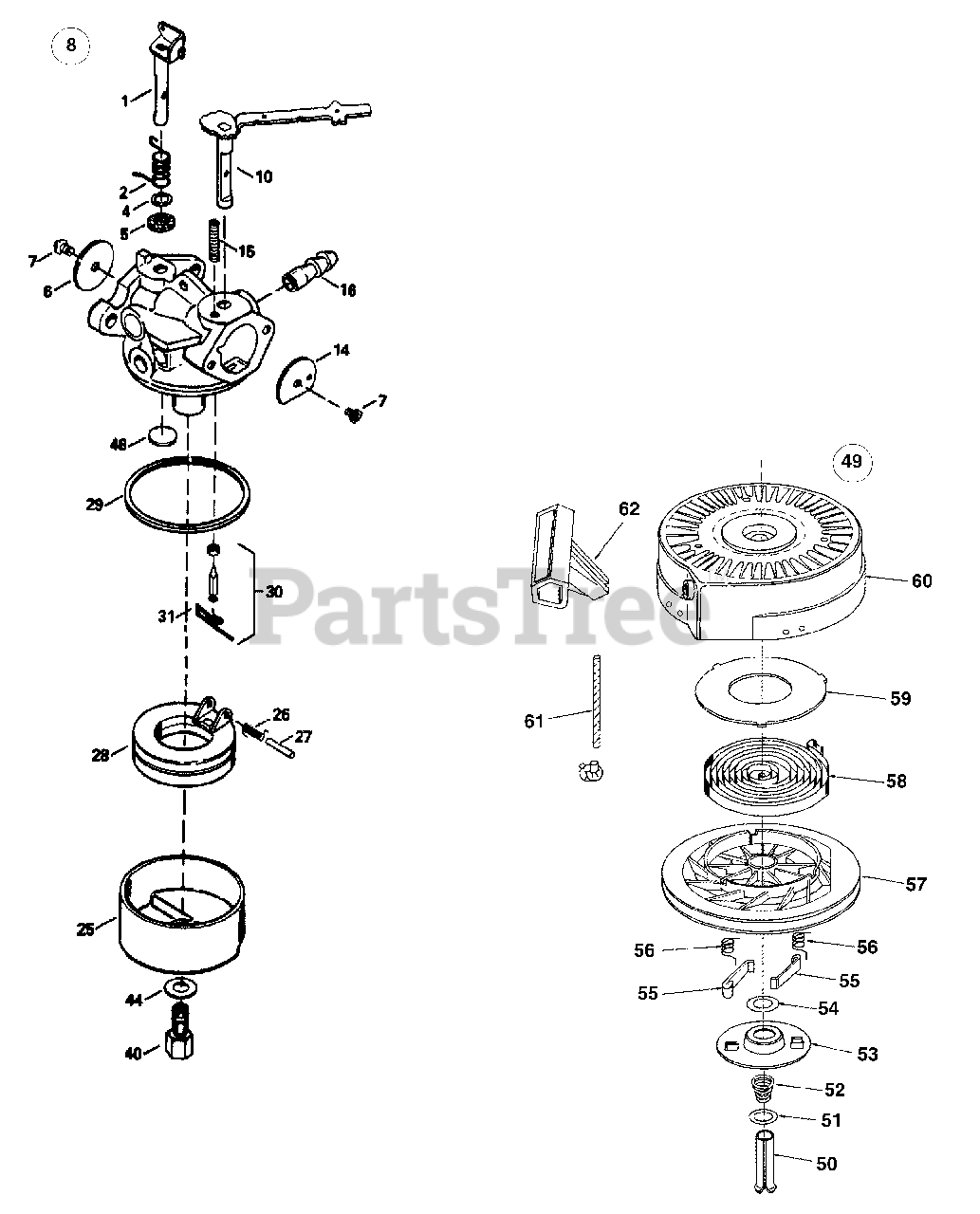

321 R (31A-142-100) - Cub Cadet 21" Snow Thrower Engine (1998) Carburetor & Starter Parts Diagram

21" Snow Thrower Engine

Carburetor & Starter Parts Diagram

  • Title
1

Cub Cadet TC-632166

Throttle Shaft & Lever Ass'y

$

$

Not available

2

Cub Cadet TC-632169

Throttle Return Spring

$1.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 17

0

5

$1.99

$

In Stock, Qty 12

0

6

Cub Cadet TC-631621

Throttle Shutter

$1.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-650506

Throttle & Choke Shutter Screw

$1.49

$

In Stock, Qty 17

0

8

Cub Cadet TC-632410B

Carburetor Assembly
(Superseded to TC-640092A)

$107.99

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-31841A

Choke Shaft & Lever Ass'y

$9.49

$

Usually ships in 3-12 days

0

14

UNKNOWN

$

$

Not available

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

25

Cub Cadet TC-631700

Float Bowl

$7.49

$

In Stock, Qty 6

0

26

Cub Cadet TC-632386

Float Dampening Screw

$1.49

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 11

0

28

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 12

0

29

Cub Cadet TC-631028

O-Ring, Float Bowl & Body
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 15

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

Note: (Incl. 31)

$6.99

$

In Stock, Qty 6

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

40

Cub Cadet TC-632385

High Speed Bowl Nut

$12.99

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-631334

Bowl Nut Washer
(Superseded to TC-631334A)

$3.49

$

In Stock, Qty 13

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 2 left!

0

49

Cub Cadet TC-590652

Rewind Starter Ass'y
(Superseded to TC-590787)

$53.99

$

In Stock, only 1 left!

0

50

Cub Cadet TC-590599A

Spring Pin

Note: (Incl. 54)

$5.49

$

In Stock, only 2 left!

0

$1.99

$

In Stock, only 4 left!

0

52

Cub Cadet TC-590598

Brake Spring

$3.99

$

Usually ships in 3-12 days

0

53

$3.99

$

In Stock, only 2 left!

0

$1.99

$

In Stock, only 4 left!

0

55

Cub Cadet TC-590616

Starter Dog

$7.49

$

Usually ships in 3-12 days

0

56

Cub Cadet TC-590617

Dog Spring

$3.99

$

Usually ships in 3-12 days

0

57

Cub Cadet TC-590645A

Pulley Ass'y

Note: (Incl. 58 & 59)

$

$

Not available

58

Cub Cadet TC-590619

Rewind Spring

$14.99

$

Usually ships in 3-12 days

0

59

Cub Cadet TC-590620

Spring Cover

$3.99

$

Usually ships in 3-12 days

0

60

Cub Cadet TC-590643

Starter Housing Ass'y

$

$

Not available

61

Cub Cadet TC-590535

Starter Rope (98")

$9.49

$

In Stock, Qty 14

0

62

Cub Cadet TC-590452

Starter Handle
(Superseded to TC-590701)

$6.49

$

In Stock, only 2 left!

0
