321 (319-180-100) - Cub Cadet 21" Snow Thrower (1989) Snow Thrower Parts Diagram

21" Snow Thrower

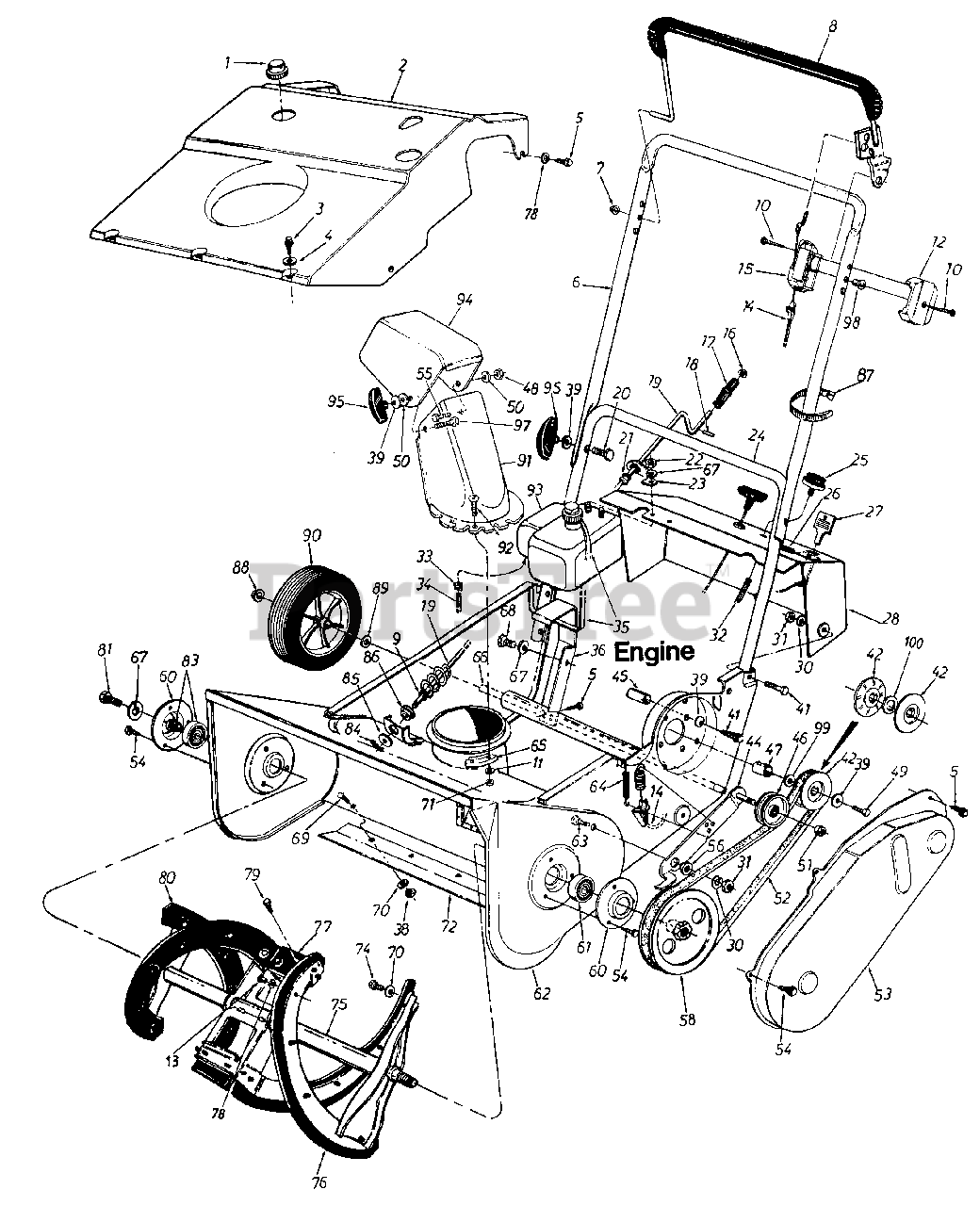

Snow Thrower Parts Diagram

  • Title

1

Cub Cadet 751-0353

CAP-GAS
(Superseded to TC-410240)

$9.49

$

Usually ships in 3-12 days

0

2

Cub Cadet 731-0702

SHROUD

$

$

Not available

3

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 x .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-0370

WASHER-SPRING

$

$

Not available

5

Cub Cadet 710-0892

SCREW-HEX L-WASH HD
(Superseded to 910-0892)

$

$

Not available

6

Cub Cadet 749-0705

HANDLE-UPPER PAINTED

Variations

Cub Cadet 749-0705-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 726-0135

NUT-SPEED

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 731-0791

HANDLE ASSY-CONTROL-LH

$

$

Not available

9

Cub Cadet 736-0140

WASHER-FL-.385 ID x .62 OD x .063

$7.49

$

In Stock, Qty 7

0

10

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

11

Cub Cadet 736-0142

WASHER-FL-.281 ID x .50 OD x .063

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 731-0815

PANEL HALF-CONTROL

$

$

Not available

13

Cub Cadet 728-0173

RIVET-POP
(Superseded to 928-0173)

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 746-0506

CABLE-CLUTCH
(Superseded to 946-0506)

$37.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

16

Cub Cadet 726-0100

NUT-PUSH

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 720-0201

KNOB-CHUTE CRANK
(Superseded to 720-0201A)

$10.99

$

In Stock, Qty 5

0

18

Cub Cadet 715-0138

PIN-ROLL 1/18 DIA
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 784-5344

CRANK ASSY-CHUTE

$

$

Not available

20

Cub Cadet 710-0405

BOLT-CARRIAGE 5/16-18 x 1.75
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet 735-0218

GROMMET
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 784-5178

BRACKET-CHUTE CRANK
(Superseded to 784-5178A)

$

$

Not available

24

Cub Cadet 749-0713

HANDLE-LOWER PAINTED

$

$

Not available

25

Cub Cadet 751-0354

PRIMER
(Superseded to TC-570682A)

$10.99

$

In Stock, only 4 left!

0

26

Cub Cadet 731-0732

PLUG

$

$

Not available

27

Cub Cadet 725-0954

KEY-STARTER-TEC
(Superseded to TC-35062)

$3.99

$

Usually ships in 3-12 days

0

28

Cub Cadet 784-5168

PANEL-DASH

Note: Color Code 498

$

$

Currently unavailable

30

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 723-0354

HOSE-PRIMER
(Superseded to TC-32180C)

$6.99

$

In Stock, only 4 left!

0

33

Cub Cadet 726-0207

CLAMP-HOSE

$

$

Not available

34

Cub Cadet 751-0173

FUEL LINE-15IN
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

35

Cub Cadet 726-0225

TIE-CABLE

$

$

Not available

36

Cub Cadet 784-5341

BRACKET-ENGINE SUP

$

$

Not available

38

Cub Cadet 712-0298

NUT-HEX JAM 1/4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0242

WASHER-BELL .337 x .867 x .057

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-0442

SCREW-HEX 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 756-0416

PULLEY-HALF-V
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

44

Cub Cadet 784-5180

BRACKET ASSY-IDLER
(Superseded to 753-05156)

$

$

Not available

45

Cub Cadet 750-0589

SPACER
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 756-0313

PULLEY-IDLER

$26.99

$

In Stock, Qty 5

0

47

Cub Cadet 748-0201

SPACER
(Superseded to 948-0201)

$

$

Not available

48

Cub Cadet 712-0158

NUT-HEX CENTER L-5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

49

Cub Cadet 710-0157

SCREW-HEX 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

50

Cub Cadet 736-0231

WASHER-FL-.312 x 1.125 x .125

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0296

NUT-HEX LOCK 3/8-24
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

52

Cub Cadet 754-0101

BELT-V
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

53

Cub Cadet 784-5176

COVER-BELT
(Superseded to 790-00045C-0637)

Variations

Cub Cadet 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0650

USE 790-00045A COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0662

USE 790-00045A COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0674

USE 790-00045A COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0691

USE 790-00045C-0691 COVER-BEL - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5176-0665

USE 790-00045C-0665 COVER-BEL - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 x .38

$4.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 710-0451

BOLT-CARRIAGE 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 748-0234

SPACER-SHLD

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 756-0475

PULLEY

$79.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 784-5174

CUP-BEARING
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

61

Cub Cadet 741-0124

BEARING-BALL
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

62

Cub Cadet 784-5325A

HOUSING ASSY-BLOWER

Note: Color Code 498

Variations

Cub Cadet 784-5325A-0483

21" BLOWER HOUSING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5325A-0498

21" BLOWER HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5325A-0629

21" BLOWER HOUSING - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 784-5325A-0638

21" BLOWER HOUSING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5325A-0662

21" BLOWER HOUSING - OYSTER GRAY (0662)

$

$

Not available

$

$

63

Cub Cadet 710-0323

SCREW-TRUSS MACH 5/16-18 x .75

$4.99

$

In Stock, only 2 left!

0

64

Cub Cadet 732-0357

SPRING-EXTENSION
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

65

Cub Cadet 731-0851

KEEPER-CHUTE FLANGE
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 749-0605

AXLE-WHEEL

$

$

Not available

67

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

68

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 710-0167

BOLT-CARRIAGE 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0173

WASHER-FL-.28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

72

Cub Cadet 731-0778

PLATE-SHAVE
(Superseded to 731-1033)

$47.99

$

In Stock, Qty 13

0

Cub Cadet 731-1033

PLATE-SHAVE

$47.99

$

In Stock, Qty 13

0

74

Cub Cadet 710-0896

SCREW-HEX B-TAP 1/4-.62

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 784-5335

AUGER ASSY 21IN
(Superseded to 984-04027A)

$196.99

$

In Stock, Qty 10

0

76

Cub Cadet 731-0781

SPIRAL-RUBBER-LH
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

77

Cub Cadet 731-0782

PADDLE-RUBBER
(Superseded to 931-0782A)

$6.99

$

In Stock, Qty 10

0

78

Cub Cadet 736-0400

WASHER-FL .192 x .625 x .057

$5.49

$

In Stock, Qty 12

0

79

Cub Cadet 710-1003

SCREW-HEX WASH TAPP
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

80

Cub Cadet 731-0780

SPIRAL-RUBBER-RH
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

81

Cub Cadet 710-0875

SCREW-HEX WASH 1/4-20X.75

$3.99

$

In Stock, only 2 left!

0

83

Cub Cadet 753-0374

KIT-BRG & COLLAR

$

$

Not available

84

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA x .75

$4.49

$

In Stock, Qty 12

0

85

Cub Cadet 736-0133

WASHER-FL-.406 ID x 1.25 OD

$5.49

$

In Stock, Qty 7

0

86

Cub Cadet 741-0403

BUSHING-HEX

$

$

Not available

87

Cub Cadet 726-0188

CLAMP-CABLE 7/8

$

$

Not available

88

Cub Cadet 726-0221

CAP-PUSH

$6.49

$

In Stock, only 2 left!

0

89

Cub Cadet 736-0108

WASHER-FL-.510 ID x .75 OD x .033

$6.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 734-0831

WHEEL ASSY W/TIRE-6 x 1.5

$

$

Not available

Cub Cadet 734-1176

WHEEL ASSY W/TIRE

$

$

Not available

91

Cub Cadet 731-0915

CHUTE-LOWER
(Superseded to 731-0915C)

$

$

Not available

92

Cub Cadet 710-0255

SCREW-TRUSS MACH
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

93

Cub Cadet 751-0435

TANK-FUEL
(Superseded to TC-32660A)

$

$

Not available

94

Cub Cadet 731-0921

CHUTE-UPPER
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

95

Cub Cadet 09966

KNOB-HANDLE ASSY
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 9

0

97

Cub Cadet 710-0276

BOLT-CARRIAGE 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

98

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

99

Cub Cadet 736-0162

WASHER-FL-.635 ID x .93 OD

$4.49

$

In Stock, Qty 20+

0

100

Cub Cadet 736-0116

WASHER-FL-.635 ID x .93 OD x .060
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

Cub Cadet 390-697

3 HP 110V ELECTRIC START

Note: 3 HP 110V Electric Start (Optional Equipment)

$

$

Currently unavailable
