321 (318-181-100) - Cub Cadet 21" Snow Thrower Engine (1988) Tec 3.0 HP-Au600-1627m-Carburetor Parts Diagram

21" Snow Thrower Engine

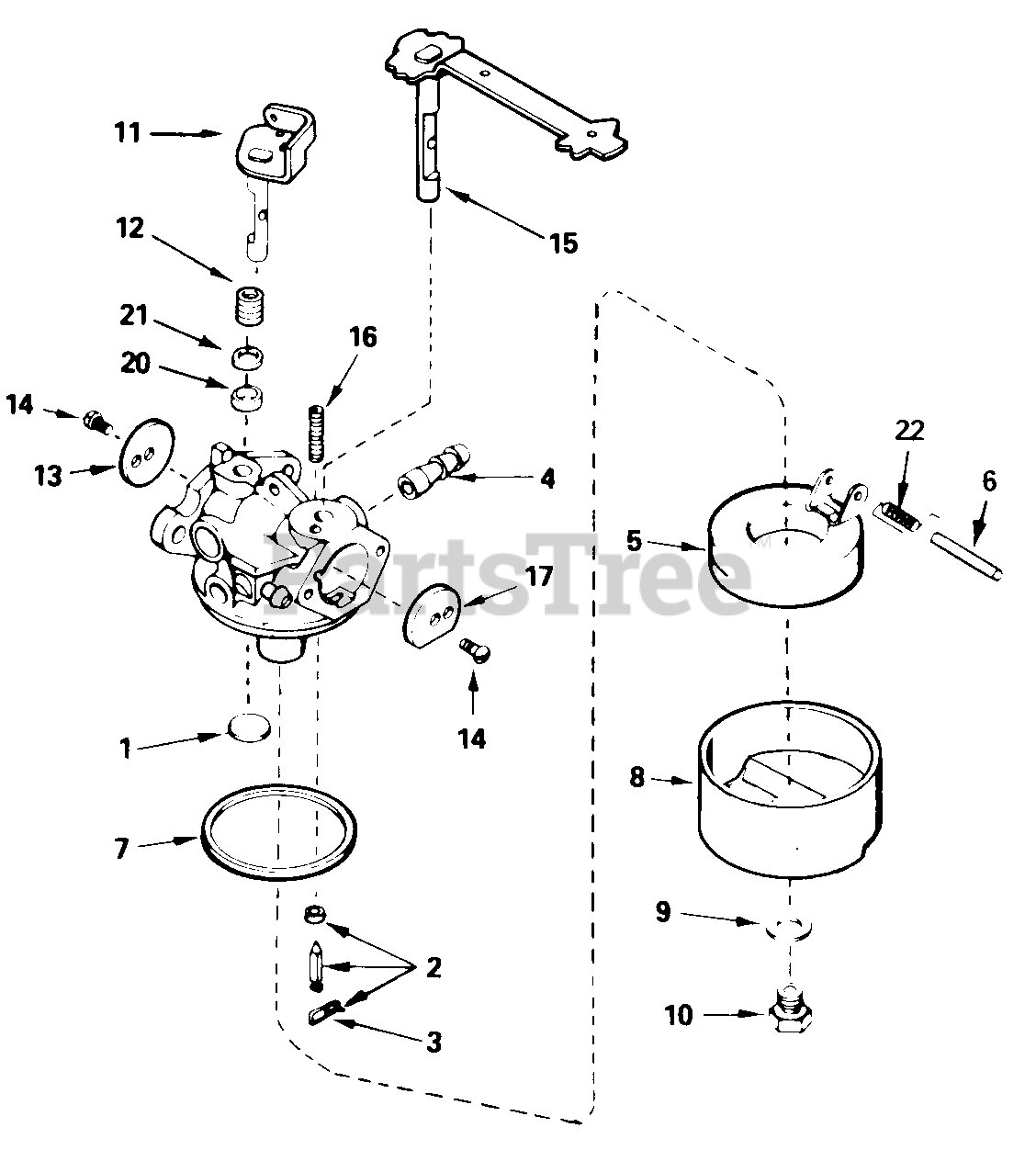

Tec 3.0 HP-Au600-1627m-Carburetor Parts Diagram

  • Title

Cub Cadet TC-632410

Carburetor
(Superseded to TC-640092A)

$107.99

$

Usually ships in 3-12 days

0

1

Cub Cadet TC-631027

Plug, Welch

$1.99

$

In Stock, only 2 left!

0

2

Cub Cadet TC-631021

Inlet Needle, Seat & Clip Ass'y.
(Superseded to TC-631021B)

Note: (Incl. No. 3)

$6.99

$

In Stock, Qty 6

0

3

Cub Cadet TC-631022

Clip, Inlet Needle

$1.99

$

In Stock, only 4 left!

0

4

Cub Cadet TC-632164

Fitting, Fuel Inlet

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet TC-632019

Float, Carburetor
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 12

0

6

Cub Cadet TC-631024

Shaft, Float

$1.99

$

In Stock, Qty 11

0

7

Cub Cadet TC-631028

"O" Ring, Bowl-to-Body
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 15

0

8

Cub Cadet TC-631700

Bowl, Float

$7.49

$

In Stock, Qty 6

0

9

Cub Cadet TC-631334

Gasket, Bowl-to-Body
(Superseded to TC-631334A)

$3.49

$

In Stock, Qty 13

0

10

Cub Cadet TC-632385

Nut, Float Bowl

$12.99

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-632130

Shaft & Lever Ass'y., Throttle

$7.49

$

In Stock, only 1 left!

0

12

Cub Cadet TC-632169

Spring, Throttle Return

$1.99

$

Usually ships in 3-12 days

0

13

Cub Cadet TC-631621

Shutter, Throttle

$1.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-650506

Screw, Throttle & Choke Shutter

$1.49

$

In Stock, Qty 17

0

15

Cub Cadet TC-31841

Shaft & Lever Ass'y., Choke
(Superseded to TC-31841A)

$9.49

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-630735

Spring, Choke Positioning

$1.99

$

In Stock, only 4 left!

0

17

Cub Cadet TC-631815

Shutter Choke

$1.99

$

In Stock, only 3 left!

0

20

Cub Cadet TC-631183

Washer, Felt

$1.99

$

In Stock, Qty 12

0

21

Cub Cadet TC-631184

Washer, Steel

$1.99

$

In Stock, Qty 17

0

22

Cub Cadet TC-632386

Spring, Float Shaft

$1.49

$

Usually ships in 3-12 days

0
