321 (318-181-100) - Cub Cadet 21" Snow Thrower (1988) Snow Thrower Parts Diagram

21" Snow Thrower

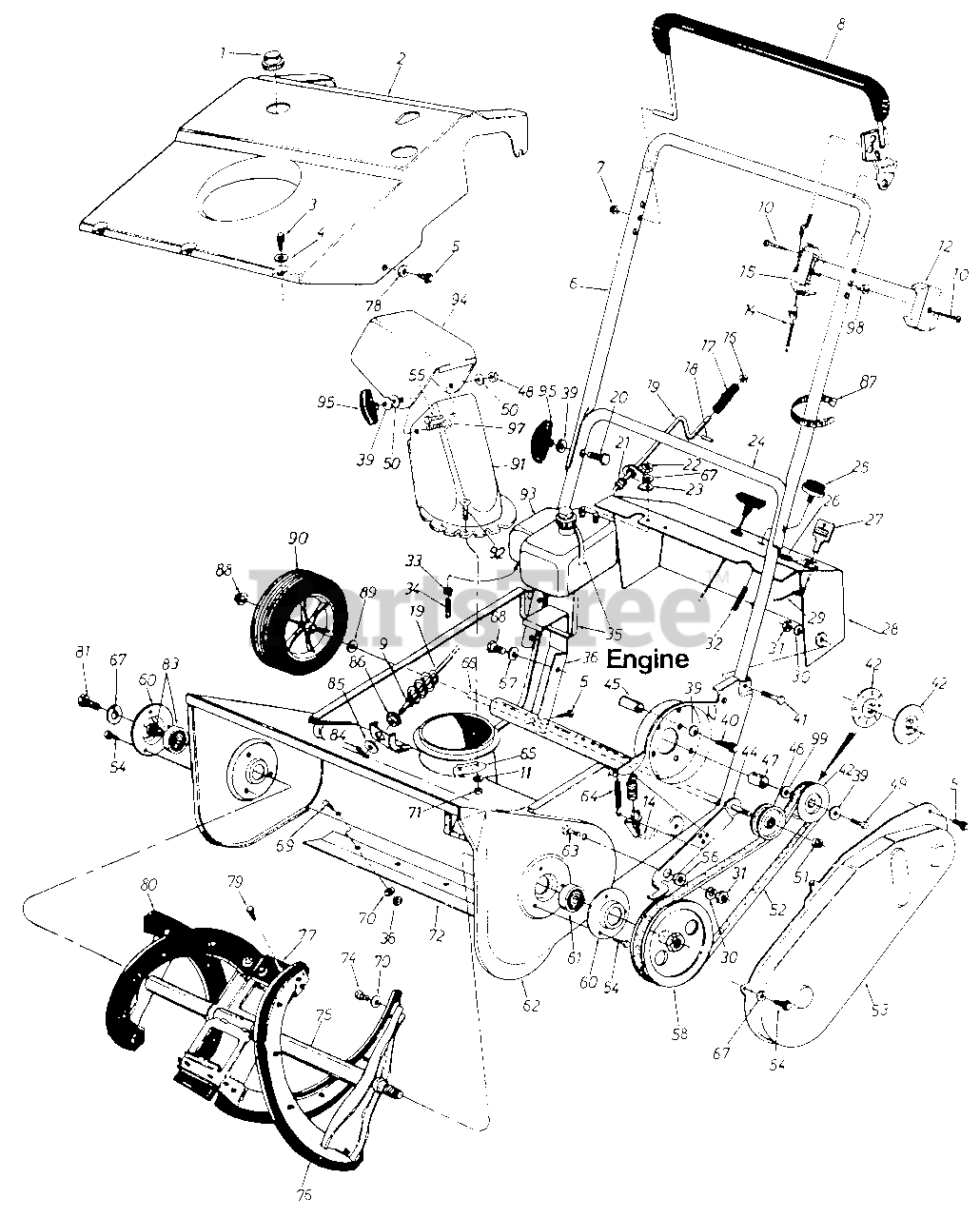

Snow Thrower Parts Diagram

  • Title

1

Cub Cadet 751-0353

Gas Tank Cap
(Superseded to TC-410240)

$9.49

$

Usually ships in 3-12 days

0

2

Cub Cadet 731-0853

21" Shroud

$

$

Not available

3

Cub Cadet 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-0370

Spr.-Wash. .206" I.D. x .448"

$

$

Not available

5

Cub Cadet 710-0892

Hex L-Wash. Hd. AB-Tap 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

6

Cub Cadet 749-0705

Upper Handle

Variations

Cub Cadet 749-0705-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 731-0791

Control Handle Ass'y.--L.H.

$

$

Not available

9

Cub Cadet 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 6

0

10

Cub Cadet 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

11

Cub Cadet 736-0142

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 731-0815

Control Panel Half

$

$

Not available

14

Cub Cadet 746-0506

Clutch Cable 35II Lg.
(Superseded to 946-0506)

$37.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-0816

Control Panel Half

$

$

Not available

16

Cub Cadet 726-0100

Push Cap 318 Rod

$4.49

$

In Stock, Qty 18

0

17

Cub Cadet 720-0201

Knob--318 Dia. Hole
(Superseded to 720-0201A)

$10.99

$

In Stock, Qty 5

0

18

Cub Cadet 715-0138

Roll Pin 118" Dia. x .63" Lg.
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 784-5344

Chute Crank Ass'y.

$

$

Not available

20

Cub Cadet 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet 735-0218

Chute Crank Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 784-5178

Upper Chute Crank Brkt.
(Superseded to 784-5178A)

$

$

Not available

24

Cub Cadet 749-0713

Lower Handle

$

$

Not available

25

Cub Cadet 751-0354

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 7

0

26

Cub Cadet 731-0732

Plastic Plug

$

$

Not available

27

Cub Cadet 725-0954

Plastic Key (Tech. Eng.)
(Superseded to TC-35062)

$3.99

$

In Stock, only 4 left!

0

28

Cub Cadet 784-5168

Dash Panel Ass'y.

Note: Color Code 498

$

$

Currently unavailable

29

Cub Cadet 725-0958

Ignition Wire

$

$

Currently unavailable

30

Cub Cadet 736-0119

L-Wash. 5116" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 723-0354

Primer Hose--11" Lg.
(Superseded to TC-32180C)

$6.99

$

In Stock, Qty 9

0

33

Cub Cadet 726-0207

Hose Clamp--.406" Dia.

$

$

Not available

34

Cub Cadet 751-0173

Gas Line--9" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

35

Cub Cadet 726-0225

Cable Tie--17.75" Lg.

$

$

Not available

36

Cub Cadet 784-5341

Engine Support Brkt.

$

$

Not available

38

Cub Cadet 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0242

Bell-Wash. 345II I.D. x 88

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0442

Hex Bolt 5/16-18 X 1 5 Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-0442

Hex Bolt 5/16-18 X 1 5 Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 756-0416

318II "V"-Pulley Half .625" I.D. x 6.0" O.D.
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

44

Cub Cadet 784-5180

Idler Brake Brkt. Ass'y.
(Superseded to 753-05156)

$

$

Not available

45

Cub Cadet 750-0589

Spacer 325II I.D. x .625" O.D. x .875"
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 756-0313

Fl-ldler w/Flanges .212" O.D.

$26.99

$

In Stock, only 3 left!

0

47

Cub Cadet 748-0201

Spacer 635II I.D. x .89" O.D. x .57"
(Superseded to 948-0201)

$

$

Not available

48

Cub Cadet 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

49

Cub Cadet 710-0157

Hex Bolt 5/16-24 X .75" Lg.

$4.49

$

In Stock, Qty 15

0

50

Cub Cadet 736-0231

Fl-Wash. .344" I.D. x 1.25"

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

52

Cub Cadet 754-0101

"V"-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

53

Cub Cadet 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

Cub Cadet 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0650

USE 790-00045A COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0662

USE 790-00045A COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0674

USE 790-00045A COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0691

USE 790-00045C-0691 COVER-BEL - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5176-0665

USE 790-00045C-0665 COVER-BEL - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-0352

Hex B-Tap Scr. l/4'' X .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 710-0323

Truss Mach. Scr. 5/16-18 x .75"

$4.99

$

In Stock, only 2 left!

0

56

Cub Cadet 748-0234

Shld. Spacer .50" Dia. x .27"

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 756-0475

1/2" "V"-Pulley 1/2-20 L.H. x 6"

$79.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

61

Cub Cadet 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

62

Cub Cadet 784-5325

21" Blower Hsg. Ass'y.

Note: Color Code 498

$

$

Not available

63

Cub Cadet 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

64

Cub Cadet 732-0357

Extension Spring 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

65

Cub Cadet 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 749-0605

Wheel Axle Tubing

$

$

Not available

67

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

68

Cub Cadet 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x. 50" Lg.

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 710-0167

Carriage Bolt 1/4-20 X .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0173

Fl-Wash. .281" I.D. x .73"

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

72

Cub Cadet 731-0778

Shave Plate
(Superseded to 731-1033)

$47.99

$

In Stock, Qty 13

0

74

Cub Cadet 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62"

Note: (Spec.)

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 784-5335

Auger Ass'y. 21"
(Superseded to 984-04027A)

$196.99

$

In Stock, Qty 10

0

76

Cub Cadet 731-0781

Rubber Spiral--L.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 12

0

77

Cub Cadet 731-0782

Rubber Paddle
(Superseded to 931-0782A)

$6.99

$

In Stock, Qty 9

0

78

Cub Cadet 736-0400

Fl-Wash. .218" I.D. x .62"

$5.49

$

In Stock, Qty 11

0

79

Cub Cadet 710-1003

Hex Wash. B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

80

Cub Cadet 731-0780

Rubber Spiral--R.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 12

0

81

Cub Cadet 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4-20 X .75" Lg.

$3.99

$

In Stock, only 2 left!

0

83

Cub Cadet 753-0374

Kit--Bearing and Collar

$

$

Not available

84

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

85

Cub Cadet 736-0234

Fl-Wash. .390" I.D. x 1.50"

$6.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 741-0403

Hex Bushing .385" I.D.

$

$

Not available

87

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

88

Cub Cadet 726-0221

Push Cap 1/2" Dia.

$6.49

$

In Stock, only 2 left!

0

89

Cub Cadet 736-0108

Fl-Wash. .510" I.D. x 75n

$6.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 734-0831

Wheel & Tire Ass'y. 6 X 1.5

$

$

Not available

91

Cub Cadet 731-0915

Lower Chute
(Superseded to 731-0915C)

$

$

Not available

92

Cub Cadet 710-0255

Truss Mach. Scr. 1/4-20 X .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

93

Cub Cadet 751-0435

Fuel Tank--Two Qt.
(Superseded to TC-32660A)

$

$

Not available

94

Cub Cadet 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 11

0

95

Cub Cadet 09966

Knob Handle Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

97

Cub Cadet 710-0276

Carriage Bolt 5/16-18 X 1"

$3.99

$

In Stock, Qty 20+

0

98

Cub Cadet 731-0524

Control Disc Pin

$

$

Not available

99

Cub Cadet 736-0162

Fl-Wash. .635" I.D. x 1.04" O.D.

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 390-687

3 HP 110V Electric Start

Note: (Optional Equipment)

$

$

Currently unavailable
